Description

Countax C Series

C600 - Tractor

From 01-01-2003 To 31-12-2007

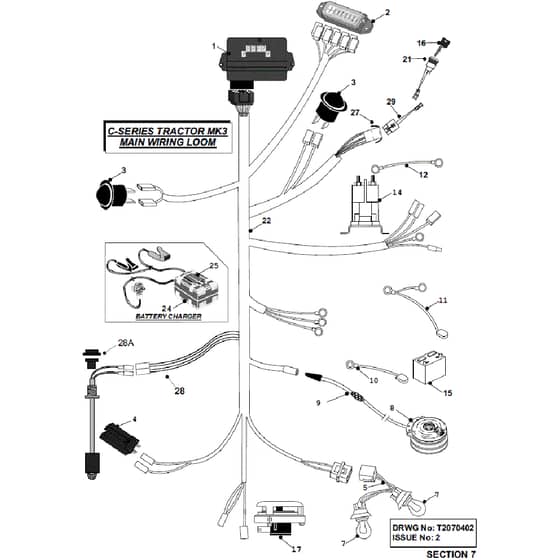

07 Main Wiring Loom Parts Diagram

Ref. Img. Part No. Details
  1 Main Pcb + Fuel 20902 40915 (1a) WE448009402
Main Pcb + Fuel 20902 40915 (1a)
In stock
£460.22 £383.52

  1 P.C.B Board Hour Meter Only WE448002000
P.C.B Board Hour Meter Only
Out of stock
£192.32 £160.27

  1 Kawasaki Engine Pcb Only (1b) WE448017005
Kawasaki Engine Pcb Only (1b)
Out of stock
£463.75 £386.46

  2 2002 Fusebox Holder WE301139400
2002 Fusebox Holder
Out of stock
£17.54 £14.62

  3 Wproof Double Pole Round Rocker Switch WE449879100
Wproof Double Pole Round Rocker Switch
In stock
£18.54 £15.45

  4 Psn Sensor N O Strong Magnet WE449666602
Psn Sensor N O Strong Magnet
Out of stock
£45.48 £37.90

  5 2003 Cseries Headlight Loom WE448010400
2003 Cseries Headlight Loom
Out of stock
£23.20 £19.33

  7 Bulb C Series 2002 Py21W WE448008500
Bulb C Series 2002 Py21W
Out of stock
£2.06 £1.72

  8 Elec.Clutch Magstop WE44936100
Elec.Clutch Magstop
In stock
£376.60 £313.83

  9 Clutch Loom Warner WE44947500
Clutch Loom Warner
In stock
£23.80 £19.83

  10 Lead Batt To Solenoid 2003 ( 1400033 ) WE44812602
Lead Batt To Solenoid 2003 ( 1400033 )
Out of stock
£20.98 £17.48

  10 18 Battery Lead (10a) WE448010000
18 Battery Lead (10a)
Out of stock
£24.80 £20.67

  11 Short Earth Lead WE449662800
Short Earth Lead
Out of stock
£9.54 £7.95

  11 Long Earth Lead (11a) WE449662900
Long Earth Lead (11a)
Out of stock
£15.80 £13.17

  12 Start Lead 3923 WE44812500
Start Lead 3923
Out of stock
£13.88 £11.57

  14 Starter Solenoid WE44814801
Starter Solenoid
In stock
£55.36 £46.13

  15 Lucas 12V Sealed Battery Lslc3412 WE458141201
Lucas 12V Sealed Battery Lslc3412
Out of stock
£238.02 £198.35

  17 Seat Switch (Milsco Seat 97) WE44949500
Seat Switch (Milsco Seat 97)
In stock
£69.16 £57.63

  21 C Series Ignition Switch 2007 WE449683300
C Series Ignition Switch 2007
In stock
£61.26 £51.05

  22 C Loom Start Switch 2006 WE449663000
C Loom Start Switch 2006
Out of stock
£209.80 £174.83

  27 Ignition Switch Subloom Cw Microswitch WE449563200
Ignition Switch Subloom Cw Microswitch
In stock
£60.41 £50.34

  28 Fuel Level Sensor Seal Kit (28a) WE149510900
Fuel Level Sensor Seal Kit (28a)
Out of stock
£25.56 £21.30

  28 Fuel Level Sender 208mm Long 16mm Hole WE449665300
Fuel Level Sender 208mm Long 16mm Hole
Out of stock
£42.06 £35.05

  29 C Series Ignition Switch Loom (1400098 ) WE449683400
C Series Ignition Switch Loom (1400098 )
Out of stock
£9.28 £7.73


Description

Countax C Series

C600 - Tractor

From 01-01-2003 To 31-12-2007

07 Main Wiring Loom Parts Diagram
