Countax C600 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 9 Wiring Loom

Description

Countax C Series

C600 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

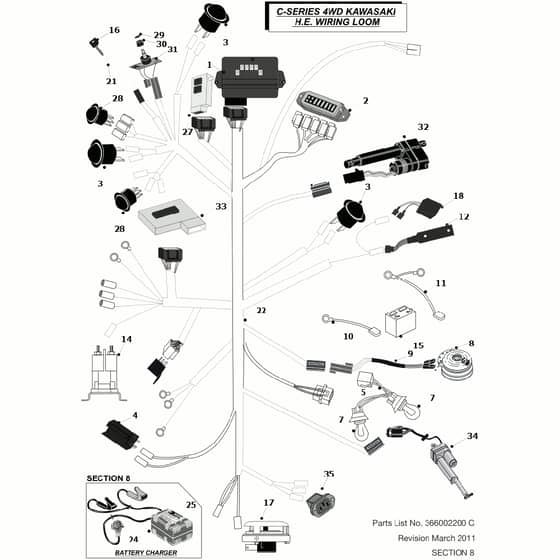

9 Wiring Loom Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE448017005 In stock	Kawasaki Engine Pcb Only	£191.70 £159.75
2	WE301139400 Out of stock	2002 Fusebox Holder	£17.54 £14.62
3	WE449879200 In stock	Wproof Single Pole Round Rocker Switch	£9.66 £8.05
4	WE449666602 Out of stock	Psn Sensor N O Strong Magnet	£45.48 £37.90
5	WE448010400 Out of stock	2003 Cseries Headlight Loom	£23.20 £19.33
7	WE448008500 Out of stock	Bulb C Series 2002 Py21W	£2.06 £1.72
8	WE44936100 In stock	Elec.Clutch Magstop	£376.60 £313.83
9	WE44947500 In stock	Clutch Loom Warner	£13.76 £11.47
10	WE44812602 Out of stock	Lead Batt To Solenoid 2003 ( 1400033 )	£20.98 £17.48
11	WE449662800 Out of stock	Short Earth Lead	£9.54 £7.95
12	WE449662300 Out of stock	Inclinometer Pcb	£135.36 £112.80
14	WE44814801 Out of stock	Starter Solenoid	£55.36 £46.13
15	WE458141201 Out of stock	Lucas 12V Sealed Battery Lslc3412	£238.02 £198.35
17	WE44949500 In stock	Seat Switch (Milsco Seat 97)	£40.12 £33.43
18	WE449665200 Out of stock	2 Tone Sounder	£26.12 £21.77
21	WE449683300 In stock	C Series Ignition Switch 2007	£35.53 £29.61
22	WE449872700 Out of stock	He Loom 08 ( 1400108 )	£292.72 £243.93
27	WE448017104 Out of stock	Dial Height Pcb Hiwin C Ww 06 0804	£153.42 £127.85
28	WE449879100 In stock	Wproof Double Pole Round Rocker Switch	£18.54 £15.45
29	WE148011001 Out of stock	Collet Knob Cap 25mm Dia ( A3231009 )	£7.90 £6.58
30	WE148010601 Out of stock	Collet Knob 31mm Dia ( A3131069 )	£16.96 £14.13
31	WE449561501 Out of stock	Dial Height Switch Pcb 04	£325.68 £271.40
32	WE449559500 Out of stock	Actuator C Series Swpr	£533.86 £444.88
33	WE448017200 In stock	He Pcb C & A 18 Way Connector 2004	£229.18 £190.98
34	WE449664100 Out of stock	X Series Hiwin Actuator +	£396.86 £330.72
35	WE448004800 Out of stock	Net Empting Actuator Loom A2050	£37.32 £31.10
