Countax C600 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 6 PTO Transmission

Description

Countax C Series

C600 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

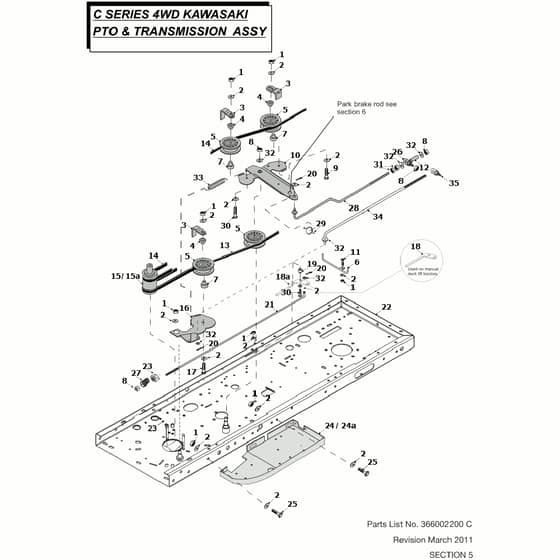

6 Pto Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
2	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
3	WE307187100 Out of stock	Belt Keeper	£8.02 £6.68
4	WE18831600 In stock	Spacer Jockey Wheel	£4.68 £3.90
5	WE20811500 In stock	PTO Jockey Pulley	£23.12 £19.27
6	WE328955500 Out of stock	C & Ww PTO Rear Belt Guide	£17.18 £14.32
7	WE31351100 Out of stock	Sweeper Jockey Cap	£7.08 £5.90
8	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
9	WE018003200 Out of stock	M8X40mm Bright Zinc Plate Bolt	£0.70 £0.58
10	WE328955100 Out of stock	2003 C Series Jockey Pulley Plate Assy	£77.32 £64.43
11	WE028893500 Out of stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.90 £0.75
12	WE183019100 Out of stock	2050 Brake Rod Tube	£4.60 £3.83
13	WE2281110A In stock	Transmission Belt	£48.74 £40.62
14	WE229504000 Out of stock	PTO Belt	£48.24 £40.20
15	WE327847800 Out of stock	Cseries & Ww 4Wd Enigne Pulley Welded A (15a)	£118.96 £99.13
15	WE32953000 Out of stock	Cseries 4Wd Engine Pulley Welded Assem	£152.40 £127.00
16	WE327360700 Out of stock	C Serieswestwood PTO Jockey Plate Assy	£23.56 £19.63
18	WE541122600 Out of stock	Electric Deck Tension Lever (18a)	£8.66 £7.22
18	WE541120600 Out of stock	Deck Tension Lever Lasered	£8.96 £7.47
19	WE18833700 Out of stock	Pivot (Deck Overlock)	£5.78 £4.82
20	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.10 £0.08
22	WE32954300 Out of stock	C Series 4Wd Chassis Welded Assembly	£601.34 £501.12
23	WE049382500 Out of stock	M16 Half Nut BZP	£1.66 £1.38
24	WE327177300 Out of stock	Cseries LH Angled Running Board Assy 01 (24a)	£82.60 £68.83
24	WE327177701 Out of stock	Hydro RH Angled Running Board Oct 01	£163.12 £135.93
25	WE02826000 Out of stock	Bolt M8 X 25mm	£0.38 £0.32
26	WE189514100 Out of stock	C Series 4Wd Park Brake Rod Trunnion	£13.52 £11.27
27	WE189507400 Out of stock	Deck Tension Cradle Adjuster Nut	£6.44 £5.37
28	WE318952401 Out of stock	C Series Hbrake Engage Rod 10mm Longer	£69.48 £57.90
29	WE259405600 Out of stock	Trunnion Damping Spring	£5.34 £4.45
30	WE02941000 Out of stock	Bolt M8 X 45mm (Vac)	£0.66 £0.55
31	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
32	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
33	WE25812201 Out of stock	Brake Return Spring	£8.20 £6.83
34	WE318963201 Out of stock	C Series PTO Rod	£41.30 £34.42
35	WE18318000 Out of stock	Rider Deck Brake Trunnion	£15.14 £12.62
