Countax C500 - From 01-01-2009 To 01-01-2011 - 5 Seat And Rear Body

Name: Countax C500 - From 01-01-2009 To 01-01-2011 - 5 Seat And Rear Body
SKU: c500_01012009_01012011_5s-group
Price: 0.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2009 To 01-01-2011 - 5 Seat And Rear Body

Description

Countax C Series

C500 - Tractor

From 01-01-2009 To 01-01-2011

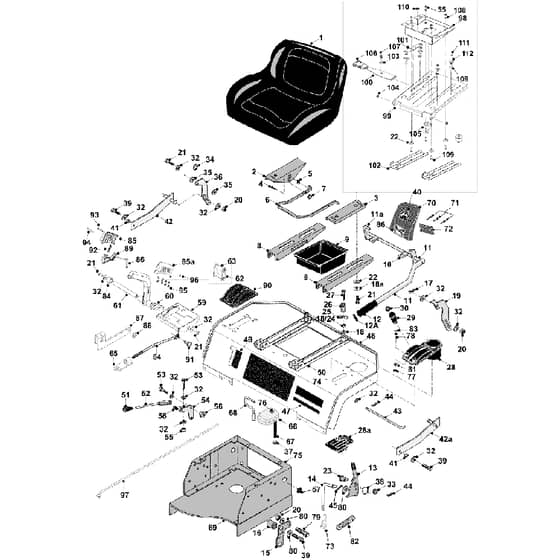

5 Seat And Rear Body Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405354400 Out of stock	Kit Milsco To Seat Conversion Kit	£297.56 £247.97
3	WE30118000 Out of stock	Seat Plate Adjuster LH	£8.26 £6.88
4	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£0.54 £0.45
5	WE25831100 Out of stock	Spring	£4.04 £3.37
6	WE30203100 Out of stock	Seat Handle	£7.76 £6.47
7	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
8	WE30117700 Out of stock	Adjustable Seat Channel RH	£16.22 £13.52
9	WE14848500 Out of stock	Tool Tray	£24.70 £20.58
10	WE32733300 Out of stock	Cseries PTO Hanging Plate (97)	£107.86 £89.88
11	WE32704800 Out of stock	PTO Pivot End (11a)	£20.62 £17.18
11	WE32733201 Out of stock	Cseries Sweeper Lift Lever	£124.72 £103.93
12	WE38936500 Out of stock	Foam Grip ( Fg13 )	£14.12 £11.77
13	WE321124300 Out of stock	C Series Handbrake Handle Welded Assy	£51.92 £43.27
14	WE318961703 Out of stock	Universal Handbrake Rod	£35.62 £29.68
15	WE301137800 Out of stock	C Series Handbrake Chassis Joggle Plate	£21.28 £17.73
16	WE183027400 Out of stock	C Series Hbrake Chassis Joggle Plt Boss	£12.40 £10.33
17	WE07921200 In stock	19mm External Circlip C1A140019	£0.36 £0.30
18	WE08824200 Out of stock	Shakeproof Washer 14Id X 58Od (18a)	£0.96 £0.80
18	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
19	WE307177100 Out of stock	Westwood Link Hook Rear Body	£21.24 £17.70
20	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
21	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
22	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Washer	£0.28 £0.23
23	WE31336800 Out of stock	Deck Lift Pin (Front)	£10.42 £8.68
24	WE31330800 Out of stock	Spacer(He Cseries Seat Spring)	£5.24 £4.37
25	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
26	WE25858100 Out of stock	Spring Sliding Seat	£5.34 £4.45
27	WE028003400 Out of stock	M10 X 40mm Socket Capscrew Zinc Plated	£0.82 £0.68
28	WE148013900 Out of stock	C Series 2002 Cup Holder	£22.42 £18.68
28	WE148014000 Out of stock	C Series 2002 Hanbrake Block (28a)	£11.62 £9.68
29	WE149557300 Out of stock	Handbrake Handle	£10.24 £8.53
30	WE359505100 Out of stock	Hbrake Handle Badge	£8.06 £6.72
32	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
33	WE149498000 Out of stock	C Series Handbrake Mechanism Nylon Bush	£6.78 £5.65
34	WE078000800 Out of stock	E Clip M12 Plated	£0.88 £0.73
35	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
36	WE30139200 Out of stock	Sweeper Lift Hook	£18.98 £15.82
37	WE11856900 Out of stock	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
38	WE258000600 Out of stock	Spring Handbrake Block Torsion 1.75 Dia	£4.98 £4.15
39	WE02941000 Out of stock	Bolt M8 X 45mm (Vac)	£0.66 £0.55
40	WE35809500 Out of stock	PTO Danger Label	£5.98 £4.98
41	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
42	WE32725900 Out of stock	Tractor PGC Link Arm RH	£37.12 £30.93
42	WE32726000 Out of stock	Tractor PGC Link Arm LH (42a)	£37.12 £30.93
43	WE31301800 Out of stock	Seat Pivot Rod	£20.74 £17.28
44	WE06849100 Out of stock	2mm R Clip	£0.60 £0.50
45	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
46	WE327812200 Out of stock	C 4Wd Rear Body Manual Weld Assm 2008	£198.64 £165.53
47	WE35931701 Out of stock	107Cm 42 Decal 2003	£1.90 £1.58
48	WE303071500 Out of stock	Foot Control C Series Rear Body Plate He	£18.14 £15.12
50	WE301985800 Out of stock	Seat Attachment Channel 2008	£53.36 £44.47
51	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
52	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
53	WE018005700 Out of stock	Hx Hd Bolt Zink Plt & Clear Passivated	£0.88 £0.73
54	WE405110200 Out of stock	PTO Plate Upgrade Kit	£24.12 £20.10
55	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
56	WE31305100 Out of stock	PTO Plate Spacer	£7.96 £6.63
57	WE52849700 Out of stock	Grommet Small	£0.96 £0.80
59	WE327805900 Out of stock	Manual Deck Lift Carry Plate Weld Assm	£104.78 £87.32
60	WE327805802 Out of stock	Manual Deck Lift Handle Weld Assm	£150.08 £125.07
61	WE183528600 Out of stock	Manual Deck Lift Handle Cross Shaft	£30.24 £25.20
62	WE301965300 Out of stock	Manual Deck Lift Slide Plate	£7.12 £5.93
63	WE183528801 In stock	Manual Deck Lift Link Slide Pin	Was £6.26 £5.22 Special Price £3.59 £2.99
64	WE327806200 Out of stock	Cseries Deck Hgt Adj Yoke Assembly	£33.58 £27.98
65	WE327806100 Out of stock	Manual Deck Lift Adjuster Rod Plate Asse	£36.72 £30.60
66	WE148014600 Out of stock	Revervoir K46 Tranaxle	£54.86 £45.72
67	WE148014800 Out of stock	K46 Reservoir Hose	£14.28 £11.90
68	WE32723800 Out of stock	Pigtail Belt Guide	£16.56 £13.80
69	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
70	WE149496400 Out of stock	PTO Flap Shell Tractor Manual (Plastic)	£46.20 £38.50
72	WE149496500 Out of stock	PTO Flap Hinge Tractor Manual (Plastic)	£8.56 £7.13
73	WE10872600 In stock	10mm Rod End	£27.42 £22.85
75	WE327308500 Out of stock	Foot Control C Series Seatbox Manual	£159.40 £132.83
76	WE168T2024250 Out of stock	Vent Valve	£16.98 £14.15
77	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
78	WE18000300 Out of stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.58 £0.48
79	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
81	WE08874300 In stock	14 T4 Hp Washer	£0.35 £0.29
82	WE25906200 In stock	Deck Tension Spring	£8.72 £7.27
84	WE183013800 Out of stock	D1850Diesel PTO Spacer	£6.50 £5.42
85	WE149550500 Out of stock	Deck Lift LH Handle Cover Black (85a)	£1.40 £1.17
85	WE149550400 Out of stock	Deck Lift RH Handle Cover Black	£1.40 £1.17
86	WE327878100 Out of stock	Deck Lift Handle Link Welded Assembly	£38.92 £32.43
87	WE301965400 Out of stock	Ad Manual Deck Lift Lower Linkage Arm	£35.38 £29.48
88	WE183529500 Out of stock	Cseries Deck Lift Pivot Spacer	£4.66 £3.88
89	WE149550601 Out of stock	Manual Deck Lift Handle Trigger	£2.26 £1.88
90	WE149550700 Out of stock	Manual Deck Lift RH Rear Body Cover	£3.82 £3.18
91	WE313513100 Out of stock	Clevis Pin	£14.14 £11.78
92	WE259405900 Out of stock	Manual Deck Lift Handle Spring 2008	£1.38 £1.15
93	WE028004000 Out of stock	M5 X 30mm Csk Socket Head Screw Black	£1.08 £0.90
94	WE029425000 Out of stock	M5 X 35 Csk Socket Head Screw Black	£0.64 £0.53
95	WE07986100 Out of stock	4mm Eclip D15004mm	£0.64 £0.53
96	WE048001800 Out of stock	M5 Half Nut Black Finish	£0.90 £0.75
97	WE318963201 Out of stock	C Series PTO Rod	£41.30 £34.42
98	WE301985400 Out of stock	Seat Base Plate 2008	£68.40 £57.00
99	WE301985502 Out of stock	Seat Running Plate 2008	£89.18 £74.32
100	WE301985600 Out of stock	Seat Release Mechanism Lever 2008	£37.56 £31.30
101	WE301985700 Out of stock	Seat Mechanism Spring Retainer Plate	£33.62 £28.02
103	WE183531300 Out of stock	Seat Mechanism Locking Pin 2008	£6.94 £5.78
104	WE10901100 Out of stock	Nylon Slide Bearing ( P804008 )	£2.98 £2.48
105	WE149551900 Out of stock	Rubber Seat Spring Retainer	£7.44 £6.20
106	WE149551800 Out of stock	Tractor Seat Handle 2008	£1.88 £1.57
108	WE089422300 Out of stock	M8 X 13 X 1 Mild Steel Washer Scolour	£0.96 £0.80
109	WE028001000 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
111	WE088003800 In stock	M8 Internally Serrated Shakeproof Washe	£0.60 £0.50
112	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
