Countax C500 - From 01-01-2008 To 31-12-2008 - 03 Consol

Name: Countax C500 - From 01-01-2008 To 31-12-2008 - 03 Consol
SKU: c500_01012008_31122008_03-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2008 To 31-12-2008 - 03 Consol

Description

Countax C Series

C500 - Tractor

From 01-01-2008 To 31-12-2008

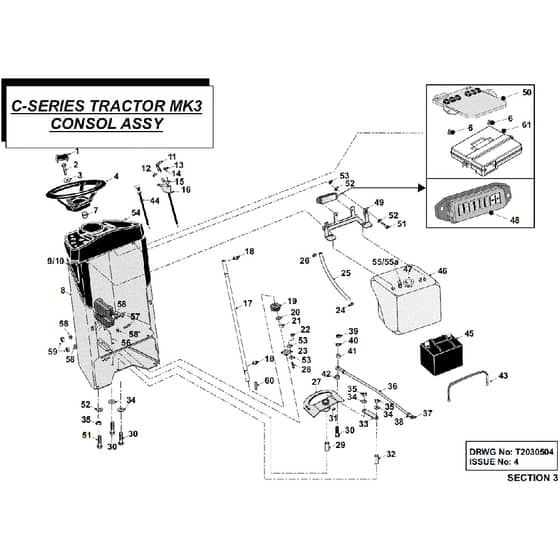

03 Consol Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
3	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
4	WE149591300 Out of stock	Steering Wheel Assy (2013)	£98.96 £82.47
5	WE08820100 In stock	Washer 38 T3 ZP	£0.14 £0.12
6	WE028663300 Out of stock	No 10 X 12 Flat Ended Self Tapper	£0.60 £0.50
7	WE149588800 Out of stock	Steering Column Upper Bush	£4.52 £3.77
8	WE327807101 Out of stock	C Series Consol Welded Assembly 2008	£510.82 £425.68
10	WE148986300 Out of stock	Cda Series Knee Pad RH	£50.16 £41.80
11	WE14810400 Out of stock	Control Knob (Throttle Cable)	£9.90 £8.25
12	WE02826300 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	Was £0.19 £0.16 Special Price £0.14 £0.12
13	WE04826400 Out of stock	M4 Nyloc T	£0.36 £0.30
15	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 10314816	£0.30 £0.25
16	WE528005401 Out of stock	Throttle Controltwin Honda 2 Detent Pad (16a)	£25.76 £21.47
16	WE528004501 Out of stock	Throttle Cable Single Cylinder Westwood	£43.62 £36.35
18	WE07823800 Out of stock	Circlip 58 External	£0.90 £0.75
19	WE213112100 In stock	Steering Gear 2050 Cser Wwk1850	£72.38 £60.32
20	WE08822700 In stock	Washer 58 T3 Lp	Was £0.58 £0.48 Special Price £0.42 £0.35
21	WE18401500 Out of stock	Steering Rod Spacer	£10.20 £8.50
22	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
23	WE10801700 Out of stock	Column Lower Bearing	£20.36 £16.97
24	WE11867100 Out of stock	Hose Clip (Spring Type)	£0.90 £0.75
25	WE14803200 Out of stock	Fuel Feed Pipe 80059	£10.66 £8.88
26	WE11856900 Out of stock	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
27	WE327015800 In stock	C Series 17T Steering Quad	£161.80 £134.83
28	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
29	WE31337400 Out of stock	Steering Rack Pivot	£17.68 £14.73
30	WE018005300 Out of stock	M10 X 65mm Hex Head Bolt BZP	£0.66 £0.55
31	WE11808600 Out of stock	Grease Nipple	£0.92 £0.77
32	WE31337500 Out of stock	Steering Support Boss	£18.08 £15.07
34	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
35	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
36	WE313007800 Out of stock	Tractor Steering Link Rod March 99	£19.30 £16.08
37	WE10872600 In stock	10mm Rod End	£27.42 £22.85
38	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
41	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
42	WE189513700 Out of stock	Xw Series 15mm Rose Joint Spacer	£2.44 £2.03
43	WE149499500 In stock	Battery Strap	£13.54 £11.28
45	WE458141201 Out of stock	Lucas 12V Sealed Battery Lslc3412	£238.02 £198.35
46	WE148015400 Out of stock	Fuel Tank With Hole For Guage 03	£59.98 £49.98
47	WE01538400 In stock	Fuel Cap	£16.57 £13.81
48	WE301139400 Out of stock	2002 Fusebox Holder	£17.54 £14.62
49	WE307187400 Out of stock	2002 Fuel Tank Brkt	£9.82 £8.18
50	WE448002000 Out of stock	P.C.B Board Hour Meter Only	£192.32 £160.27
50	WE448009402 In stock	Main Pcb + Fuel 20902 40915 (50a)	£189.58 £157.98
50	WE448017005 In stock	Kawasaki Engine Pcb Only (50b)	£191.70 £159.75
54	WE148986100 In stock	Dashboard 2008	Was £13.88 £11.57 Special Price £5.99 £4.99
55	WE449665300 Out of stock	Fuel Level Sender 208mm Long 16mm Hole	£42.06 £35.05
55	WE149510900 Out of stock	Fuel Level Sensor Seal Kit (55a)	£25.56 £21.30
56	WE301069200 Out of stock	D1850 Relay Mounting Plate	£15.56 £12.97
57	WE02941300 Out of stock	M6 X 25 Socket Button Head BZP Set Scre	£0.56 £0.47
58	WE089422200 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.98 £0.82
59	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
60	WE09823900 In stock	Key No 61	£0.84 £0.70
61	WE149552000 Out of stock	Pcb Case 2 Part	£9.48 £7.90
