Countax C500 - From 01-01-2008 To 31-12-2008 - 02 Bennet

Name: Countax C500 - From 01-01-2008 To 31-12-2008 - 02 Bennet
SKU: c500_01012008_31122008_02-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2008 To 31-12-2008 - 02 Bennet

Description

Countax C Series

C500 - Tractor

From 01-01-2008 To 31-12-2008

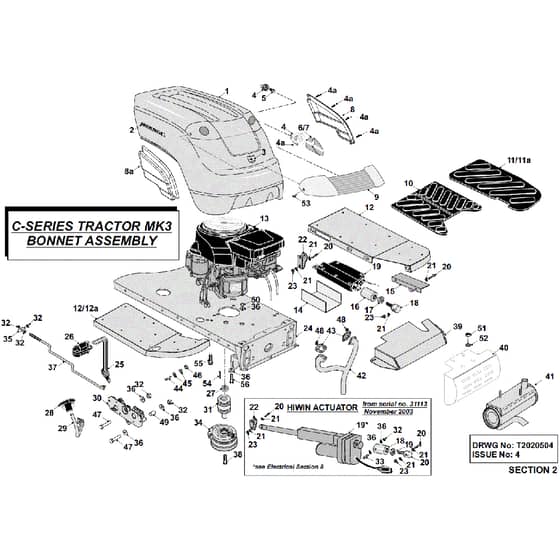

02 Bennet Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405007300 Out of stock	2002 Countax Bonnet C300C400C600	£795.36 £662.80
1	WE405007400 Out of stock	2002 Countax Bonnet C800 (1a)	£783.62 £653.02
2	WE359010100 Out of stock	Alluminium Brush Finish Countax Badge	£8.88 £7.40
4	WE448008400 Out of stock	Light C Series 2002 2Ba 008 221007	£54.02 £45.02
4	WE148012300 Out of stock	Fir Tree Fixing For V2050 From Tfc (4a)	£3.42 £2.85
5	WE448008500 Out of stock	Bulb C Series 2002 Py21W	£2.06 £1.72
6	WE148013500 Out of stock	C Series LH Light Can 2002	£4.06 £3.38
7	WE148013600 Out of stock	C Series RH Light Can 2002	£2.90 £2.42
8	WE149550900 Out of stock	C Series Side Panel 2008 LH	£123.72 £103.10
8	WE149550800 Out of stock	C Series Side Panel 2008 RH (8a)	£73.26 £61.05
9	WE148013400 Out of stock	C Series Bonnet Lens 2002	£33.68 £28.07
10	WE148992300 Out of stock	Ctr C Series Self Adhesive Mat	£33.74 £28.12
11	WE148992100 Out of stock	LH C Series Self Adhesive Mat	£25.66 £21.38
12	WE148992200 Out of stock	RH C Series Self Adhesive Mat	£25.66 £21.38
14	WE307188100 Out of stock	He Deck Actuator Cover 2002	£9.66 £8.05
15	WE327363500 Out of stock	La12 Actuator Mounting Bracket	£28.82 £24.02
16	WE189498600 Out of stock	La12 Link Actuator Adjuster Boss	£9.52 £7.93
16	WE183028100 Out of stock	Universal Act Attachment Body Aug 03 (16a)	£10.24 £8.53
18	WE187184900 Out of stock	Deck Lift Actuator Adjustment Screw	£5.00 £4.17
19	WE448008601 Out of stock	La12 Actuator 121P0011001220	£622.40 £518.67
19	WE448015700 Out of stock	Actuator Hiwin (19a)	£505.76 £421.47
20	WE018002400 Out of stock	M10 X 55 Hex Head Bolt	£0.70 £0.58
21	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
22	WE307192400 Out of stock	Universal Deck Lift Arm Hiwin Actuator (22a)	£40.96 £34.13
23	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
24	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
25	WE327361200 Out of stock	2002 Cassette Forward Pedal Welded Assy	£32.42 £27.02
26	WE148013700 Out of stock	C Series Fwd Large Pedal Rubber 2002	£15.14 £12.62
27	WE31854000 Out of stock	Engine Pulley Spacer	£26.76 £22.30
28	WE148013800 Out of stock	C Series Small Rev Pedal Rubber 2002	£13.38 £11.15
29	WE327361301 Out of stock	Cassette Reverse Pedal Assy	£63.16 £52.63
30	WE409429500 Out of stock	Adkc Series Pedal Cassette Assembly	£156.76 £130.63
33	WE01935700 Out of stock	M8 X 35mm Bolt Compressor 119	£0.70 £0.58
34	WE44936100 In stock	Elec.Clutch Magstop	£376.60 £313.83
35	WE183017300 Out of stock	Foot Control C Series Fwdrev Trunnion	£8.24 £6.87
36	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
37	WE327362500 Out of stock	2003 C Series Fwd Rev Rod Welded Assy	£75.62 £63.02
38	WE01831000 Out of stock	716 UNF X 4.5 Bolt	£6.52 £5.43
39	WE301138000 Out of stock	Zintec Heat Shield Gxv620 (39a)	£46.18 £38.48
39	WE301137900 Out of stock	Zintec Heat Shield Gcv520 530	£23.48 £19.57
40	WE307199700 Out of stock	2004 Countax Heatshield	£66.24 £55.20
41	WE401007001 Out of stock	Exhaust C500H C600H	£132.68 £110.57
42	WE327026300 Out of stock	Honda Gxv530 & Gcv520 Exhaust Welded Asy	£110.78 £92.32
44	WE019479400 Out of stock	M6 X 20mm Lng Sckt Hd Cap Screw Sc	£0.66 £0.55
45	WE08874300 In stock	14 T4 Hp Washer	£0.35 £0.29
46	WE049381900 Out of stock	M6 X 3mm Captive Nut	£1.16 £0.97
47	WE02941000 Out of stock	Bolt M8 X 45mm (Vac)	£0.66 £0.55
49	WE31322200 Out of stock	Transaxle Deflector Spacer	£2.92 £2.43
50	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
51	WE048001700 Out of stock	M8 Philadas Self Locking Nut Zinc Plate	£0.84 £0.70
52	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£0.28 £0.23
53	WE18005100 Out of stock	M4 X 16 Sckt Hd Counter Sunk Screw Sc	£0.40 £0.33
54	WE09853401 Out of stock	Key14Sq X 1 14 American Spec Rounded	£2.00 £1.67
55	WE01848700 Out of stock	38UNC X 1 14 Bolt BZP	£1.64 £1.37
56	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
