Countax C500 - From 01-01-2003 To 31-12-2007 - 08 He Dh Wiring Loom

Name: Countax C500 - From 01-01-2003 To 31-12-2007 - 08 He Dh Wiring Loom
SKU: c500_01012003_31122007_08-group
Price: 1.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2003 To 31-12-2007 - 08 He Dh Wiring Loom

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 31-12-2007

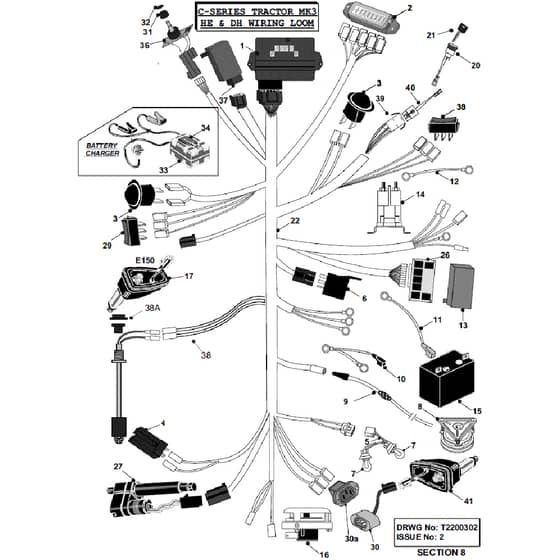

08 He Dh Wiring Loom Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE448002000 Out of stock	P.C.B Board Hour Meter Only	£192.32 £160.27
1	WE448017005 In stock	Kawasaki Engine Pcb Only (1b)	£191.70 £159.75
1	WE448009402 In stock	Main Pcb + Fuel 20902 40915 (1a)	£189.58 £157.98
2	WE301139400 Out of stock	2002 Fusebox Holder	£17.54 £14.62
3	WE449879200 Out of stock	Wproof Single Pole Round Rocker Switch	£9.66 £8.05
4	WE449666602 Out of stock	Psn Sensor N O Strong Magnet	£45.48 £37.90
5	WE448010400 Out of stock	2003 Cseries Headlight Loom	£23.20 £19.33
6	WE449562700 Out of stock	Electric Relay 12V 30A With Diode	£24.80 £20.67
7	WE448008500 Out of stock	Bulb C Series 2002 Py21W	£2.06 £1.72
8	WE44936100 In stock	Elec.Clutch Magstop	£376.60 £313.83
9	WE44947500 In stock	Clutch Loom Warner (9a)	£13.76 £11.47
10	WE448010000 Out of stock	18 Battery Lead	£24.80 £20.67
11	WE44812402 Out of stock	Earth Lead 2003 ( 1400032 )	£22.44 £18.70
12	WE44812500 Out of stock	Start Lead 3923	£13.88 £11.57
13	WE148016700 In stock	Ww He Pcb Case	Was £12.84 £10.70 Special Price £5.99 £4.99
14	WE44814801 Out of stock	Starter Solenoid	£55.36 £46.13
15	WE458141201 Out of stock	Lucas 12V Sealed Battery Lslc3412	£238.02 £198.35
16	WE44949500 In stock	Seat Switch (Milsco Seat 97)	£40.12 £33.43
17	WE448015700 Out of stock	Actuator Hiwin (17b)	£505.76 £421.47
17	WE448008601 Out of stock	La12 Actuator 121P0011001220 (17a)	£622.40 £518.67
17	WE448007700 Out of stock	Actuator Cw Potentiometer	£350.02 £291.68
20	WE449683300 Out of stock	C Series Ignition Switch 2007 (20b)	£35.53 £29.61
20	WE44812900 In stock	Ignition Switch ( 6Q463 )	£50.06 £41.72
20	WE448010700 In stock	Ww Ign Switch (A018323Fm2) (20a)	£50.48 £42.07
21	WE528006900 In stock	Apem Ignition Key 2D138MK (21a)	£10.50 £8.75
21	WE52813000 Out of stock	Key Accurate (101)	£6.64 £5.53
22	WE449663100 Out of stock	C Dial Height Loom Start Switch 2006 (22a)	£224.72 £187.27
22	WE449872700 Out of stock	He Loom 08 ( 1400108 )	£292.72 £243.93
26	WE448009200 Out of stock	He Pcb For La10 Actuators & Net 2003	£186.44 £155.37
26	WE448017200 Out of stock	He Pcb C & A 18 Way Connector 2004 (26a)	£229.18 £190.98
27	WE449559500 Out of stock	Actuator C Series Swpr (27a)	£533.86 £444.88
29	WE449879100 In stock	Wproof Double Pole Round Rocker Switch	£18.54 £15.45
30	WE448004800 Out of stock	Net Empting Actuator Loom A2050	£37.32 £31.10
31	WE148010601 Out of stock	Collet Knob 31mm Dia ( A3131069 )	£16.96 £14.13
32	WE148011001 Out of stock	Collet Knob Cap 25mm Dia ( A3231009 )	£7.90 £6.58
36	WE449561501 Out of stock	Dial Height Switch Pcb 04	£325.68 £271.40
37	WE449559602 Out of stock	Deck Height Pcb 90	£171.10 £142.58
37	WE448017104 Out of stock	Dial Height Pcb Hiwin C Ww 06 0804 (37c)	£153.42 £127.85
37	WE449560602 Out of stock	Dial Height 15 Pcb La12 0804 (37a)	£163.60 £136.33
37	WE449560702 Out of stock	Dial Height Pcb Hiwin Actuator 0804 (37b)	£159.22 £132.68
38	WE149510900 Out of stock	Fuel Level Sensor Seal Kit (38a)	£25.56 £21.30
38	WE449665300 Out of stock	Fuel Level Sender 208mm Long 16mm Hole	£42.06 £35.05
39	WE449683400 Out of stock	C Series Ignition Switch Loom (1400098 ) (39a)	£9.28 £7.73
39	WE449563200 In stock	Ignition Switch Subloom Cw Microswitch	£28.52 £23.77
41	WE449662200 Out of stock	Act 1200N Hiwin Las 1110012	£374.58 £312.15
