Countax C500 - From 01-01-2003 To 31-12-2007 - 04A Rear Body

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 31-12-2007

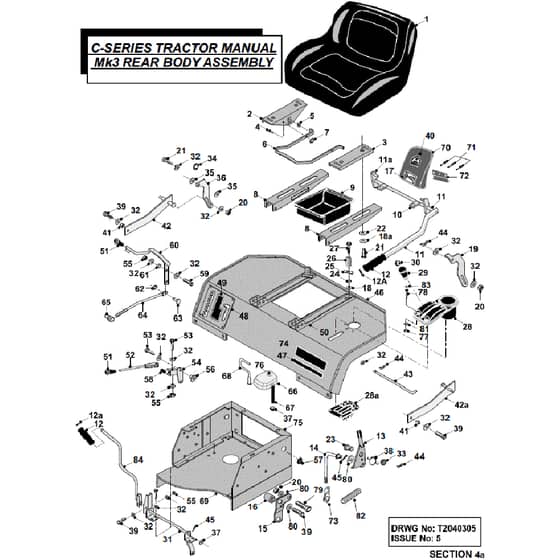

04A Rear Body Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405354400 Out of stock	Kit Milsco To Seat Conversion Kit	£297.56 £247.97
3	WE30118000 Out of stock	Seat Plate Adjuster LH	£8.26 £6.88
4	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£0.54 £0.45
5	WE25831100 Out of stock	Spring	£4.04 £3.37
6	WE30203100 Out of stock	Seat Handle	£7.76 £6.47
7	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
8	WE30117700 Out of stock	Adjustable Seat Channel RH	£16.22 £13.52
9	WE14848500 Out of stock	Tool Tray	£24.70 £20.58
10	WE32733300 Out of stock	Cseries PTO Hanging Plate (97)	£107.86 £89.88
11	WE32704800 Out of stock	PTO Pivot End (11a)	£20.62 £17.18
11	WE32733201 Out of stock	Cseries Sweeper Lift Lever	£124.72 £103.93
12	WE38936500 Out of stock	Foam Grip ( Fg13 )	£14.12 £11.77
13	WE321124300 Out of stock	C Series Handbrake Handle Welded Assy	£51.92 £43.27
14	WE318961703 Out of stock	Universal Handbrake Rod	£35.62 £29.68
15	WE301137800 Out of stock	C Series Handbrake Chassis Joggle Plate	£21.28 £17.73
16	WE183027400 Out of stock	C Series Hbrake Chassis Joggle Plt Boss	£12.40 £10.33
17	WE35891200 Out of stock	Sweeper Belt Decal (Symbols Only)	£5.70 £4.75
18	WE08824200 Out of stock	Shakeproof Washer 14Id X 58Od (18a)	£0.96 £0.80
18	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
19	WE307177100 Out of stock	Westwood Link Hook Rear Body	£21.24 £17.70
20	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
21	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
22	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Washer	£0.28 £0.23
23	WE31336800 Out of stock	Deck Lift Pin (Front)	£10.42 £8.68
24	WE31330800 Out of stock	Spacer(He Cseries Seat Spring)	£5.24 £4.37
25	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
26	WE25858100 Out of stock	Spring Sliding Seat	£5.34 £4.45
27	WE028003400 Out of stock	M10 X 40mm Socket Capscrew Zinc Plated	£0.82 £0.68
28	WE148013900 Out of stock	C Series 2002 Cup Holder	£22.42 £18.68
28	WE148014000 Out of stock	C Series 2002 Hanbrake Block (28a)	£11.62 £9.68
29	WE149557300 Out of stock	Handbrake Handle	£10.24 £8.53
30	WE359505100 Out of stock	Hbrake Handle Badge	£8.06 £6.72
31	WE32700400 Out of stock	Gear Change Crossover Assy	£94.70 £78.92
32	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
33	WE149498000 Out of stock	C Series Handbrake Mechanism Nylon Bush	£6.78 £5.65
34	WE078000800 Out of stock	E Clip M12 Plated	£0.88 £0.73
35	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
36	WE30139200 Out of stock	Sweeper Lift Hook	£18.98 £15.82
37	WE11856900 Out of stock	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
38	WE258000600 Out of stock	Spring Handbrake Block Torsion 1.75 Dia	£4.98 £4.15
39	WE02941000 Out of stock	Bolt M8 X 45mm (Vac)	£0.66 £0.55
40	WE35809500 Out of stock	PTO Danger Label	£5.98 £4.98
41	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
42	WE32726000 Out of stock	Tractor PGC Link Arm LH (42a)	£37.12 £30.93
42	WE32725900 Out of stock	Tractor PGC Link Arm RH	£37.12 £30.93
43	WE31301800 Out of stock	Seat Pivot Rod	£20.74 £17.28
44	WE06849100 Out of stock	2mm R Clip	£0.60 £0.50
45	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
46	WE327028500 Out of stock	2002 C Series Hydro Rear Body Assy	£205.64 £171.37
47	WE35931701 Out of stock	107Cm 42 Decal 2003	£1.90 £1.58
48	WE303071500 Out of stock	Foot Control C Series Rear Body Plate He	£18.14 £15.12
50	WE301985800 Out of stock	Seat Attachment Channel 2008	£53.36 £44.47
51	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
52	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
53	WE018005700 Out of stock	Hx Hd Bolt Zink Plt & Clear Passivated	£0.88 £0.73
54	WE405110200 Out of stock	PTO Plate Upgrade Kit	£24.12 £20.10
55	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
56	WE31305100 Out of stock	PTO Plate Spacer	£7.96 £6.63
57	WE52849700 Out of stock	Grommet Small	£0.96 £0.80
59	WE018001800 In stock	Bolt M8 X 50mm	£2.56 £2.13
61	WE18317400 Out of stock	Deck Height Pivot Boss	£6.60 £5.50
62	WE07846800 Out of stock	Circlip 38	£0.36 £0.30
64	WE32703300 Out of stock	Deck Height Adjust Yoke	£69.00 £57.50
65	WE18326700 Out of stock	Rider Brake Rod Trunnion Hydro	£8.32 £6.93
66	WE148014600 Out of stock	Revervoir K46 Tranaxle	£54.86 £45.72
67	WE148014800 Out of stock	K46 Reservoir Hose	£14.28 £11.90
68	WE32723800 Out of stock	Pigtail Belt Guide	£16.56 £13.80
69	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
70	WE149496400 Out of stock	PTO Flap Shell Tractor Manual (Plastic)	£46.20 £38.50
72	WE149496500 Out of stock	PTO Flap Hinge Tractor Manual (Plastic)	£8.56 £7.13
73	WE10872600 In stock	10mm Rod End	£27.42 £22.85
75	WE327308500 Out of stock	Foot Control C Series Seatbox Manual	£159.40 £132.83
76	WE168T2024250 Out of stock	Vent Valve	£16.98 £14.15
77	WE04920500 In stock	Nut M6 Nyloc	£0.22 £0.18
78	WE18000300 Out of stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.58 £0.48
79	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
81	WE08874300 In stock	14 T4 Hp Washer	£0.35 £0.29
82	WE25906200 In stock	Deck Tension Spring	£8.72 £7.27
84	WE32731200 Out of stock	Speed Selectgear Lever	£60.98 £50.82
85	WE178967100 Out of stock	PTO Belt Guard Kit Manual	£55.24 £46.03
