Countax C500 - From 01-01-2003 To 01-09-2003 - 7 Running Board And Chassis

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

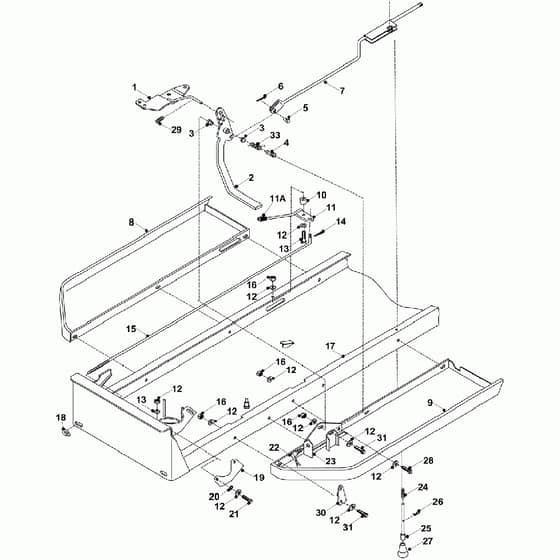

7 Running Board And Chassis Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE32706402 Out of stock	Jockey Pulley Plate Cw 52824700 Bush	£39.86 £33.22
2	WE327172400 Out of stock	Roller Carrier C Series 2000 Assembly	£87.84 £73.20
4	WE31402200 Out of stock	Brake Pedal Spacer	£22.30 £18.58
6	WE07846800 Out of stock	Circlip 38	£0.36 £0.30
7	WE32729500 Out of stock	Brake Rod (Peerless Hydro)	£26.74 £22.28
8	WE27706300 Out of stock	Running Board LH	£72.02 £60.02
10	WE18833700 Out of stock	Pivot (Deck Overlock)	£5.78 £4.82
11	WE541120600 Out of stock	Deck Tension Lever Lasered	£8.96 £7.47
12	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
13	WE01820800 Out of stock	Bolt 516 UNF X 1 34 BZP	£0.62 £0.52
14	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
15	WE318963201 Out of stock	C Series PTO Rod	£41.30 £34.42
16	WE04827500 In stock	Nyloc Nut 516 UNF	£0.36 £0.30
17	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
19	WE541109600 Out of stock	2050 Deck Carry Plate	£31.20 £26.00
20	WE18303500 Out of stock	Spacer Deck Swing Plate	£6.90 £5.75
21	WE02819600 In stock	Set Screw	Was £0.92 £0.77 Special Price £0.26 £0.22
22	WE44813400 Out of stock	Pull Safety Switch	£27.62 £23.02
24	WE25805000 Out of stock	Park Brake Spring	£7.18 £5.98
25	WE31305900 Out of stock	Park Brake Rod	£30.02 £25.02
26	WE06849100 Out of stock	2mm R Clip	£0.60 £0.50
27	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
28	WE01827000 Out of stock	Bolt 516 X 2 14In	£0.96 £0.80
29	WE25813801 In stock	Safety Switch Spring	£5.44 £4.53
30	WE30118300 Out of stock	Brake Spring Plate	£7.64 £6.37
31	WE02827600 Out of stock	Set Screw	£0.64 £0.53
