Countax C500 - From 01-01-2003 To 01-09-2003 - 28 Powered Grass Collector

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

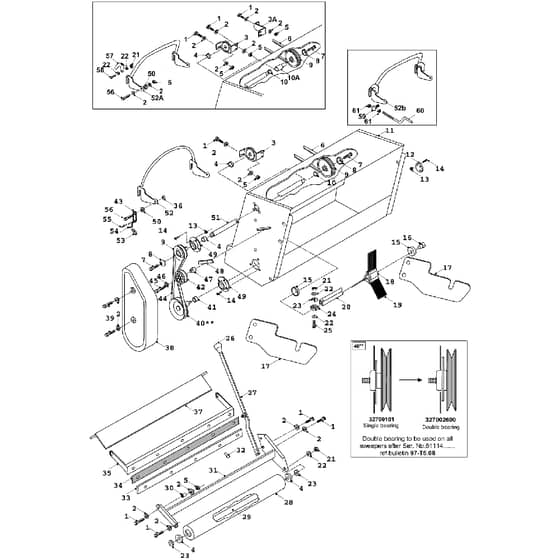

28 Powered Grass Collector Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE01902300 Out of stock	Bolt M8X25mm	£0.38 £0.32
2	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
4	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
5	WE04827500 In stock	Nyloc Nut 516 UNF	£0.36 £0.30
6	WE228000300 In stock	Belt Rdr97 A50 Super 2 (Rdrpgc)	£41.46 £34.55
7	WE01874500 Out of stock	Bolt 38 X 34 HT	£0.54 £0.45
8	WE08819900 In stock	Dome Washer 1.34Od X 38Id X 18Dome	£3.20 £2.67
9	WE32727600 Out of stock	3 Pulley (Non Keyed)	£31.70 £26.42
10	WE183003900 Out of stock	Tractor Sweeper Input Pulley Extension (10A)	£3.74 £3.12
10	WE31306200 Out of stock	PTO End Spacer	£6.22 £5.18
12	WE30117500 Out of stock	Sweeper Bearing Cap	£4.10 £3.42
13	WE04885900 In stock	Nut	£0.90 £0.75
14	WE02940500 Out of stock	M5 X 16mm Pozi Pan	£0.40 £0.33
15	WE32121800 In stock	Slinger	£7.22 £6.02
16	WE31323900 Out of stock	Brush Stock Spindle (Short)	£18.32 £15.27
17	WE30147000 Out of stock	Bag Ear	£32.06 £26.72
18	WE14833000 In stock	Bristle Boss	£1.82 £1.52
19	WE40835601 Out of stock	Tractor Brush (Complete)	£127.20 £106.00
20	WE17400200 In stock	Brush Stock	£37.34 £31.12
21	WE04891400 In stock	Nyloc Nut14 UNF	£0.60 £0.50
22	WE08874300 In stock	14 T4 Hp Washer	£0.35 £0.29
23	WE14834100 In stock	Brush Drive Moulding Small	£4.26 £3.55
24	WE14832900 In stock	Brush Drive Moulding Large	£4.28 £3.57
25	WE01832400 Out of stock	Bolt 14 X 1 34	£1.40 £1.17
26	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
28	WE32731900 In stock	Rollerpgccseries	£180.68 £150.57
29	WE183024400 Out of stock	C Series Sweeper 2000 Internal Shaft 200	£43.84 £36.53
30	WE31329200 In stock	Cseries Roller Plate Bush	£4.96 £4.13
31	WE327172400 Out of stock	Roller Carrier C Series 2000 Assembly	£87.84 £73.20
33	WE30146800 Out of stock	PGC Scraper Plate	£11.62 £9.68
34	WE14937101 Out of stock	Venturie PGC Rubber C Series Net	£13.96 £11.63
37	WE327016500 In stock	C Series Swp Flap Plate	£53.76 £44.80
38	WE148005400 In stock	Belt Guard C & 205	£48.46 £40.38
39	WE01821200 In stock	Bolt 516 X 2.34	£1.32 £1.10
41	WE10845500 In stock	Bearing 6203Zz	£18.06 £15.05
42	WE20811500 In stock	PTO Jockey Pulley	£23.12 £19.27
44	WE22832800 Out of stock	Belt Sweeper Vtype A36	£25.40 £21.17
46	WE31351100 Out of stock	Sweeper Jockey Cap	£7.08 £5.90
47	WE31350400 Out of stock	Sweeper Jockey Spacer	£7.76 £6.47
48	WE30121900 Out of stock	Bearing Shield	£3.92 £3.27
49	WE27106601 In stock	Bearing Housing 17mm	£28.68 £23.90
50	WE14850500 Out of stock	Nylon Washer	£1.76 £1.47
51	WE183005700 Out of stock	98 Model Cseries PGC Idler Shaft	£32.24 £26.87
52	WE307177800 Out of stock	Universal Sweeper Locking Plate April 01 (52B)	£23.86 £19.88
52	WE32733100 Out of stock	Cseries Sweeper Locking Lever (97) (52A)	£95.48 £79.57
56	WE35937601 Out of stock	Sweeper Height Decal 2003	£4.46 £3.72
56	WE01820600 Out of stock	Bolt 516UNF X 1.14 HT ZP	£0.38 £0.32
57	WE30150300 Out of stock	RH PGC Lever Lock	£6.62 £5.52
58	WE01844700 Out of stock	Bolt 14X1In	£0.70 £0.58
59	WE183003800 In stock	PGC Belt Tension Adjust Trunnion	£9.52 £7.93
60	WE313003500 In stock	PGC Belt Tension Adjust Rod	£14.16 £11.80
61	WE04938100 Out of stock	14 UNC Nut	£0.58 £0.48
