Countax C500 - From 01-01-2003 To 01-09-2003 - 18 Console Mk2 Post 90326

Name: Countax C500 - From 01-01-2003 To 01-09-2003 - 18 Console Mk2 Post 90326
SKU: c500_01012003_01092003_18-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2003 To 01-09-2003 - 18 Console Mk2 Post 90326

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

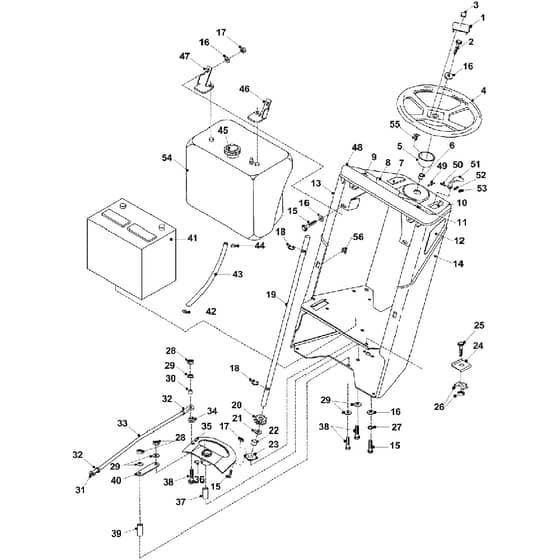

18 Console Assembly Mk2 Post 90326 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405354400 Out of stock	Kit Milsco To Seat Conversion Kit	£297.56 £247.97
2	WE25831100 Out of stock	Spring	£4.04 £3.37
4	WE012885800 Out of stock	Rivet 14 X 12 Bz	£0.34 £0.28
5	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
6	WE30203100 Out of stock	Seat Handle	£7.76 £6.47
7	WE30118000 Out of stock	Seat Plate Adjuster LH	£8.26 £6.88
8	WE02827600 Out of stock	Set Screw	£0.64 £0.53
9	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
10	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
11	WE32704800 Out of stock	PTO Pivot End	£20.62 £17.18
12	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
13	WE01820600 Out of stock	Bolt 516UNF X 1.14 HT ZP	£0.38 £0.32
14	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Washer	£0.28 £0.23
15	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
16	WE32725900 Out of stock	Tractor PGC Link Arm RH	£37.12 £30.93
17	WE30139200 Out of stock	Sweeper Lift Hook	£18.98 £15.82
18	WE08820100 In stock	Washer 38 T3 ZP	£0.14 £0.12
19	WE04820200 In stock	Nyloc Nut 38UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
20	WE30117700 Out of stock	Adjustable Seat Channel RH	£16.22 £13.52
21	WE14848500 Out of stock	Tool Tray	£24.70 £20.58
22	WE30117800 Out of stock	Adjustable Seat Channel LH	£16.22 £13.52
24	WE088004000 In stock	M10 Internal Shakeproof Washer	£0.60 £0.50
25	WE02825200 Out of stock	Bolt 38UNC X 34In	£2.58 £2.15
26	WE01855000 In stock	Pull Rod Spring Sleeve 302601	Was £0.96 £0.80 Special Price £0.70 £0.58
27	WE25858100 Out of stock	Spring Sliding Seat	£5.34 £4.45
28	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
30	WE178967100 Out of stock	PTO Belt Guard Kit Manual	£55.24 £46.03
32	WE35891200 Out of stock	Sweeper Belt Decal (Symbols Only)	£5.70 £4.75
33	WE14936900 Out of stock	Grommet	£2.74 £2.28
35	WE38936500 Out of stock	Foam Grip ( Fg13 )	£14.12 £11.77
37	WE32726000 Out of stock	Tractor PGC Link Arm LH	£37.12 £30.93
38	WE327308500 Out of stock	Foot Control C Series Seatbox Manual	£159.40 £132.83
39	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
40	WE31301800 Out of stock	Seat Pivot Rod	£20.74 £17.28
41	WE07823700 Out of stock	3mm L Type R Clip (Large)	£1.18 £0.98
44	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
47	WE35803600 Out of stock	Gear Select Label	£4.04 £3.37
50	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
51	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
52	WE01820700 Out of stock	Bolt 516UNF X 1.12 HT ZP	£0.52 £0.43
53	WE32708601 Out of stock	PTO Lever Plate	£22.68 £18.90
54	WE31305100 Out of stock	PTO Plate Spacer	£7.96 £6.63
55	WE04827500 In stock	Nyloc Nut 516 UNF	£0.36 £0.30
56	WE32731200 Out of stock	Speed Selectgear Lever	£60.98 £50.82
