Countax C500 - From 01-01-2003 To 01-09-2003 - 17 Console Mk1 Pre 90326

Name: Countax C500 - From 01-01-2003 To 01-09-2003 - 17 Console Mk1 Pre 90326
SKU: c500_01012003_01092003_17-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2003 To 01-09-2003 - 17 Console Mk1 Pre 90326

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

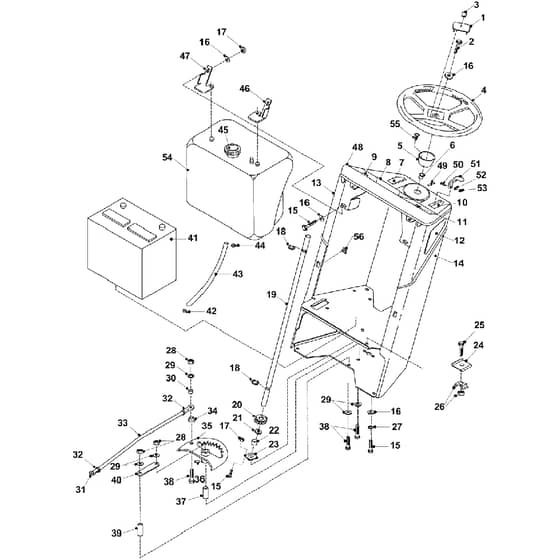

17 Console Assembly Mk1 Pre 90326 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	WE02819600 Out of stock	Set Screw	£0.92 £0.77
4	WE149591300 Out of stock	Steering Wheel Assy (2013)	£104.64 £87.20
6	WE149588800 Out of stock	Steering Column Upper Bush	£3.65 £3.04
14	WE27708700 Out of stock	Tractor Console	£127.06 £105.88
15	WE02827600 Out of stock	Set Screw	£0.64 £0.53
16	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
17	WE04827500 In stock	Nyloc Nut 516 UNF	£0.36 £0.30
18	WE07823400 In stock	E Clip 1.2	£0.86 £0.72
19	WE31328400 Out of stock	Steering Column Cseries	£95.28 £79.40
20	WE31302300 In stock	Steering Pinion	£128.88 £107.40
21	WE08822700 In stock	Washer 58 T3 Lp	£1.04 £0.87
22	WE18401500 Out of stock	Steering Rod Spacer	£25.49 £21.24
23	WE10801700 In stock	Column Lower Bearing	£21.06 £17.55
25	WE02885800 In stock	Bolt M5 X 20mm	£0.40 £0.33
26	WE049382600 Out of stock	M5 Cage Nut 3mm Mat	£1.40 £1.17
27	WE088003800 In stock	M8 Internally Serrated Shakeproof Washe	£4.56 £3.80
28	WE04820200 In stock	Nyloc Nut 38UNF	£0.48 £0.40
29	WE08820100 In stock	Washer 38 T3 ZP	£0.14 £0.12
30	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£10.21 £8.51
31	WE10872600 In stock	10mm Rod End	£21.04 £17.53
32	WE04872100 Out of stock	M10 Locknut	£0.38 £0.32
33	WE313007800 Out of stock	Tractor Steering Link Rod March 99	£19.94 £16.62
34	WE189513700 Out of stock	Xw Series 15mm Rose Joint Spacer	£2.44 £2.03
35	WE18801400 Out of stock	15T Kc Series Steering Quadrant	£276.00 £230.00
36	WE11808600 Out of stock	Grease Nipple	£0.92 £0.77
37	WE31337400 Out of stock	Steering Rack Pivot	£17.68 £14.73
38	WE01821600 Out of stock	Bolt 38 X 2.12	£1.03 £0.86
39	WE31337500 Out of stock	Steering Support Boss	£32.78 £27.32
42	WE11867100 Out of stock	Hose Clip (Spring Type)	£0.90 £0.75
43	WE14803200 Out of stock	Fuel Feed Pipe 80059	£12.55 £10.46
44	WE11856900 Out of stock	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
45	WE01538400 In stock	Fuel Cap	£13.62 £11.35
46	WE307187400 Out of stock	2002 Fuel Tank Brkt	£9.82 £8.18
48	WE14859100 Out of stock	Console	£45.64 £38.03
49	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£1.36 £1.13
50	WE02826300 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	£0.19 £0.16
51	WE14810400 Out of stock	Control Knob (Throttle Cable)	£13.99 £11.66
53	WE04826400 Out of stock	M4 Nyloc T	£0.36 £0.30
54	WE14803000 Out of stock	Fuel Tank Without Hole	£88.20 £73.50
55	WE02913100 In stock	6 X 8 Pozi Ss Stap	£0.25 £0.21
