Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

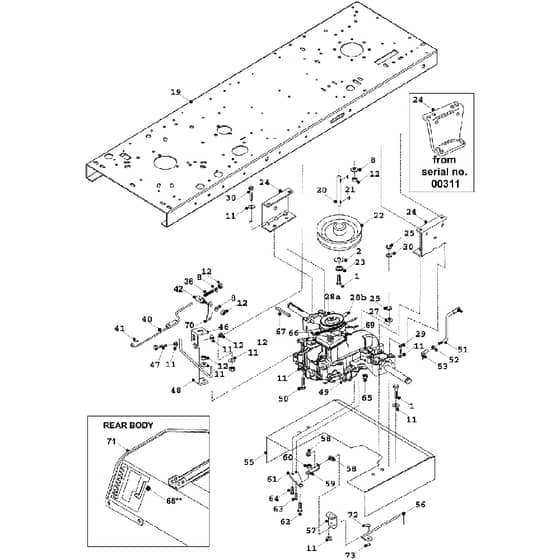

14 K46 Tuff Torq Transmission Mk2 Post 90326 Parts Diagram

Ref. Img. Part No. Details
  1 Set Screw
Set Screw
WE02819600 In stock
Set Screw
Was £0.92 £0.77 Special Price £0.26 £0.22

  2 Washer 516Id X 1Od Hd
Washer 516Id X 1Od Hd
WE08819800 In stock
Washer 516Id X 1Od Hd
£0.22 £0.18

  8 Washer 516 T3 Lp Zinc Plated
Washer 516 T3 Lp Zinc Plated
WE08819500 Out of stock
Washer 516 T3 Lp Zinc Plated
£0.62 £0.52

  11 Washer M8 X 21 X 1.6
Washer M8 X 21 X 1.6
WE088003700 In stock
Washer M8 X 21 X 1.6
£0.60 £0.50

  12 Nyloc Nut 516 UNF
Nyloc Nut 516 UNF
WE04827500 In stock
Nyloc Nut 516 UNF
£0.36 £0.30

  19 Tractor Chassis New Colour
Tractor Chassis New Colour
WE32702450 Out of stock
Tractor Chassis New Colour
£326.86 £272.38

  20 PTO Shaft
PTO Shaft
WE31306000 Out of stock
PTO Shaft
£59.84 £49.87

  21 Key No 61
Key No 61
WE09823900 In stock
Key No 61
£0.84 £0.70

  22 7 PTO Pulley
7 PTO Pulley
WE20870702 Out of stock
7 PTO Pulley
£48.74 £40.62

  23 M8 Internally Serrated Shakeproof Washe
M8 Internally Serrated Shakeproof Washe
WE088003800 In stock
M8 Internally Serrated Shakeproof Washe
£0.60 £0.50

  24 Manualhydro Gearbox Bracket
Manualhydro Gearbox Bracket
WE30131600 Out of stock
Manualhydro Gearbox Bracket
£23.36 £19.47

  24 C Series Transaxle Brkt 2000 6mm Thk
C Series Transaxle Brkt 2000 6mm Thk
WE307025900 Out of stock
C Series Transaxle Brkt 2000 6mm Thk
£47.04 £39.20

  25 14mm Circlip Mecro
14mm Circlip Mecro
WE07906600 Out of stock
14mm Circlip Mecro
£2.56 £2.13

  28 70mm Dia K46 Input Pulley (28a)
70mm Dia K46 Input Pulley (28a)
WE200811600 Out of stock
70mm Dia K46 Input Pulley (28a)
£47.70 £39.75

  28 Fan White (28b)
Fan White (28b)
WE1A646083050 In stock
Fan White (28b)
£34.66 £28.88

  29 Bolt 516UNF X 2.12 HT ZP
Bolt 516UNF X 2.12 HT ZP
WE01821100 In stock
Bolt 516UNF X 2.12 HT ZP
Was £0.70 £0.58 Special Price £0.50 £0.42

  30 Bolt 516X3 12In UNF
Bolt 516X3 12In UNF
WE01854700 Out of stock
Bolt 516X3 12In UNF
£1.08 £0.90

  36 Brake Rod Spring
Brake Rod Spring
WE25808300 Out of stock
Brake Rod Spring
£2.50 £2.08

  40 Foot Control C Series Brake Rod Assembly
Foot Control C Series Brake Rod Assembly
WE327020101 In stock
Foot Control C Series Brake Rod Assembly
£27.04 £22.53

  41 Split Pin 1 X 18 (Snowblade)
Split Pin 1 X 18 (Snowblade)
WE06823300 Out of stock
Split Pin 1 X 18 (Snowblade)
£0.24 £0.20

  42 99 Cseries Brake Rod Trunnion
99 Cseries Brake Rod Trunnion
WE183017400 Out of stock
99 Cseries Brake Rod Trunnion
£8.36 £6.97

  46 Torque Bracket
Torque Bracket
WE30137700 Out of stock
Torque Bracket
£19.72 £16.43

  48 Transaxle Steady Ssembly
Transaxle Steady Ssembly
WE327020401 Out of stock
Transaxle Steady Ssembly
£39.20 £32.67

  49 Hydrotx K46Cm 08
Hydrotx K46Cm 08
WE478000302 In stock
Hydrotx K46Cm 08
£738.00 £615.00

  51 Speed Select Rod (Tuff Torq Hydro)
Speed Select Rod (Tuff Torq Hydro)
WE31325400 Out of stock
Speed Select Rod (Tuff Torq Hydro)
£19.44 £16.20

  53 Rider M8 Gear Select Ball Joint
Rider M8 Gear Select Ball Joint
WE32879600 Out of stock
Rider M8 Gear Select Ball Joint
£21.94 £18.28

  55 2001 Cseries Transaxle Deflector
2001 Cseries Transaxle Deflector
WE30307101 Out of stock
2001 Cseries Transaxle Deflector
£66.68 £55.57

  56 Cseries Dump Valve Lever Assembly
Cseries Dump Valve Lever Assembly
WE321123301 Out of stock
Cseries Dump Valve Lever Assembly
£15.98 £13.32

  57 Park Brake Switch Brkt Long
Park Brake Switch Brkt Long
WE307022200 Out of stock
Park Brake Switch Brkt Long
£8.20 £6.83

  58 14 UNC Nyloc
14 UNC Nyloc
WE04897500 In stock
14 UNC Nyloc
Was £0.28 £0.23 Special Price £0.20 £0.17

  60 Nyloc Nut14 UNF
Nyloc Nut14 UNF
WE04891400 In stock
Nyloc Nut14 UNF
£0.60 £0.50

  62 Set Screw
Set Screw
WE02827700 In stock
Set Screw
Was £0.30 £0.25 Special Price £0.13 £0.11

  64 38UNC X 1 14 Bolt BZP
38UNC X 1 14 Bolt BZP
WE01848700 Out of stock
38UNC X 1 14 Bolt BZP
£1.64 £1.37

  65 M4 Nyloc Nut
M4 Nyloc Nut
WE04917100 Out of stock
M4 Nyloc Nut
£0.22 £0.18

  66 PTO Belt
PTO Belt
WE229503401 Out of stock
PTO Belt
£55.26 £46.05

  67 Keyrear Wheel
Keyrear Wheel
WE09830700 Out of stock
Keyrear Wheel
£5.54 £4.62

  68 Foot Control C Series Rear Body Deck Gat
Foot Control C Series Rear Body Deck Gat
WE303072000 Out of stock
Foot Control C Series Rear Body Deck Gat
£37.06 £30.88

  69 Reservoir Tank
Reservoir Tank
WE1A646024190 Out of stock
Reservoir Tank
£78.60 £65.50

  70 Brake Extension Plate
Brake Extension Plate
WE30138500 Out of stock
Brake Extension Plate
£32.14 £26.78

  72 14 Starloc Washer
14 Starloc Washer
WE07868700 Out of stock
14 Starloc Washer
£0.54 £0.45

  73 14 X 12 Steel Flat Hd Solid Rivet Zin
14 X 12 Steel Flat Hd Solid Rivet Zin
WE12855800 Out of stock
14 X 12 Steel Flat Hd Solid Rivet Zin
£1.44 £1.20


Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

14 K46 Tuff Torq Transmission Mk2 Post 90326 Parts Diagram
