Countax C500 - From 01-01-1996 To 01-01-2003 - 21 He Rear Body

Name: Countax C500 - From 01-01-1996 To 01-01-2003 - 21 He Rear Body
SKU: c500_01011996_01012003_21-group
Price: 0.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-1996 To 01-01-2003 - 21 He Rear Body

Description

Countax C Series

C500 - Tractor

From 01-01-1996 To 01-01-2003

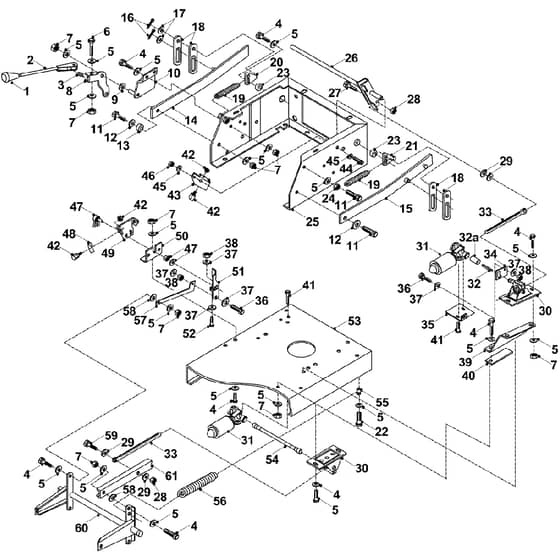

21 He Rear Body Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE14804800 Out of stock	Lever Knob	£7.12 £5.93
2	WE32708701 Out of stock	PTO Lever	£32.84 £27.37
3	WE25831100 Out of stock	Spring	£4.04 £3.37
4	WE02827600 Out of stock	Set Screw	£0.64 £0.53
5	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
6	WE01820700 Out of stock	Bolt 516UNF X 1.12 HT ZP	£0.52 £0.43
7	WE04827500 In stock	Nyloc Nut 516 UNF	£0.36 £0.30
8	WE405110200 Out of stock	PTO Plate Upgrade Kit	£24.12 £20.10
9	WE31305100 Out of stock	PTO Plate Spacer	£7.96 £6.63
10	WE32722500 Out of stock	PTO Engage Bridge	£20.90 £17.42
11	WE01820600 Out of stock	Bolt 516UNF X 1.14 HT ZP	£0.38 £0.32
12	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Washer	£0.28 £0.23
13	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
14	WE32720300 Out of stock	H.E. Sweeper Lift Arm RH	£60.34 £50.28
15	WE32721100 In stock	H.E. Sweper Lift Arm LH	Was £60.34 £50.28 Special Price £43.44 £36.20
16	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
17	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
18	WE30133500 Out of stock	H.E. Sweeper Lift Plate	£18.34 £15.28
19	WE25908802 In stock	He Sweeper Lift Assist Spring	£14.86 £12.38
20	WE32721300 Out of stock	Lift Triangle RH He	£25.16 £20.97
21	WE32721200 Out of stock	H.E. Sweeper Lift LH Triangle	£29.72 £24.77
23	WE31323500 Out of stock	H.E Lift Bar Spacer	£8.62 £7.18
24	WE04822200 Out of stock	Locknut 516UNF Hex ZP	£0.84 £0.70
25	WE327308500 Out of stock	Foot Control C Series Seatbox Manual	£159.40 £132.83
27	WE01855000 In stock	Pull Rod Spring Sleeve 302601	Was £0.96 £0.80 Special Price £0.70 £0.58
28	WE04820200 In stock	Nyloc Nut 38UNF	Was £0.48 £0.40 Special Price £0.35 £0.29
29	WE08820100 In stock	Washer 38 T3 ZP	£0.14 £0.12
33	WE21921700 Out of stock	Drive Motor Lead Screw Assy	£23.90 £19.92
34	WE30133300 Out of stock	He Sweeper Anti Rotation Plate	£5.42 £4.52
36	WE02912200 Out of stock	M5 X 16 Sscrew	£0.42 £0.35
38	WE04885900 In stock	Nut	£0.90 £0.75
39	WE30150200 Out of stock	Motor Mounting Plate	£7.46 £6.22
41	WE02885800 In stock	Bolt M5 X 20mm	£0.40 £0.33
42	WE44908700 Out of stock	Limit Switch	£32.86 £27.38
43	WE30135500 Out of stock	He Sweeper Limit Switch Bracket	£5.34 £4.45
44	WE02827700 In stock	Set Screw	Was £0.30 £0.25 Special Price £0.13 £0.11
45	WE08874300 In stock	14 T4 Hp Washer	£0.35 £0.29
46	WE04891400 In stock	Nyloc Nut14 UNF	£0.60 £0.50
47	WE44908000 Out of stock	Potentiometer	£63.90 £53.25
50	WE30135900 Out of stock	Potentioniometer Mounting Plate	£5.92 £4.93
52	WE02913500 Out of stock	M5 X 25 Hex Head Sscrew Stainless Stee	£0.42 £0.35
53	WE32702400 Out of stock	Chassis Assy	£300.20 £250.17
54	WE44941400 Out of stock	He Flexible Drive Cable	£36.38 £30.32
55	WE31323400 Out of stock	Deck Spring Spacer	£3.04 £2.53
56	WE25885300 Out of stock	Deck Assist Spring	£8.24 £6.87
58	WE183529500 Out of stock	Cseries Deck Lift Pivot Spacer	£4.66 £3.88
59	WE02825300 In stock	Bolt 38 X 1 14 UNF	£0.98 £0.82
60	WE327361700 Out of stock	2003 Rear Deck Hanging Brktcser Non He	£114.14 £95.12
