Countax C400 - From 01-01-2008 To 31-12-2008 - 09 Deck Cradle

Name: Countax C400 - From 01-01-2008 To 31-12-2008 - 09 Deck Cradle
SKU: c400_01012008_31122008_09-group
Price: 0.20 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C400 - From 01-01-2008 To 31-12-2008 - 09 Deck Cradle

Description

Countax C Series

C400 - Tractor

From 01-01-2008 To 31-12-2008

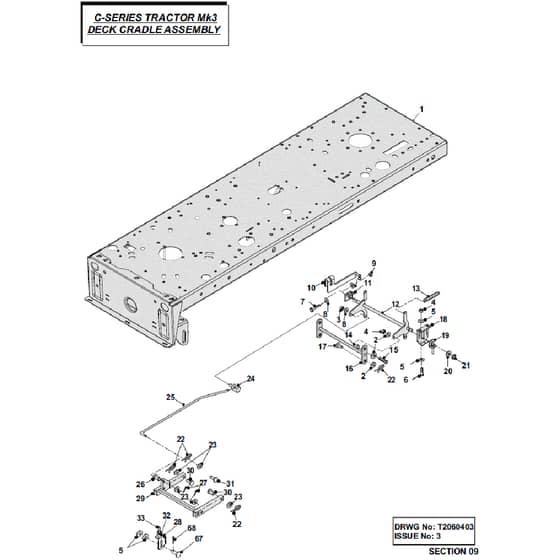

09 Deck Cradle Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
2	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£0.28 £0.23
3	WE028001000 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
4	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
5	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
6	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
7	WE018002400 Out of stock	M10 X 55 Hex Head Bolt	£0.70 £0.58
9	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
10	WE301965400 Out of stock	Ad Manual Deck Lift Lower Linkage Arm	£35.38 £29.48
11	WE307189601 Out of stock	2003 Rear Deck Hanging Brkt	£16.66 £13.88
12	WE327361700 Out of stock	2003 Rear Deck Hanging Brktcser Non He	£114.14 £95.12
12	WE328954100 Out of stock	C Series He Rear Deck Lift Cradle2003 (12a)	£132.68 £110.57
13	WE25908802 In stock	He Sweeper Lift Assist Spring	£14.86 £12.38
14	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
15	WE018005700 Out of stock	Hx Hd Bolt Zink Plt & Clear Passivated	£0.88 £0.73
16	WE549129100 Out of stock	Brkt Rear Deck Lift Link	£44.88 £37.40
17	WE31337200 Out of stock	Deck Lift Pin (Rear)	£10.88 £9.07
18	WE301143700 Out of stock	Hex Adjuster Deck Level Bracket 04	£27.04 £22.53
19	WE327029300 Out of stock	Rear Deck Cradle Adjuster Brkt Nov 04	£6.20 £5.17
20	WE089423700 Out of stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
21	WE078000800 Out of stock	E Clip M12 Plated	£0.88 £0.73
22	WE11836700 In stock	Rue Clip	£1.42 £1.18
23	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
24	WE189497500 Out of stock	2002 Tractor Deck Level Trunion	£9.76 £8.13
25	WE18805900 Out of stock	Height Adjuster Rod	£28.34 £23.62
26	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£8.14 £6.78
27	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
28	WE301040000 Out of stock	2050 Deck Lever Bracket	£23.12 £19.27
29	WE32703701 Out of stock	Deck Carry Cradle Assembly Front	£87.72 £73.10
30	WE31336800 Out of stock	Deck Lift Pin (Front)	£10.42 £8.68
32	WE189501800 Out of stock	Deck Level Hex Adjuster Nut Nov 04	£7.06 £5.88
