Countax C330 - From 01-01-2008 To 31-12-2011 - 6 PTO And Transmission Drive

Name: Countax C330 - From 01-01-2008 To 31-12-2011 - 6 PTO And Transmission Drive
SKU: c330_01012008_31122011_6p-group
Price: 0.20 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C330 - From 01-01-2008 To 31-12-2011 - 6 PTO And Transmission Drive

Description

Countax C Series

C330 - Tractor

From 01-01-2008 To 31-12-2011

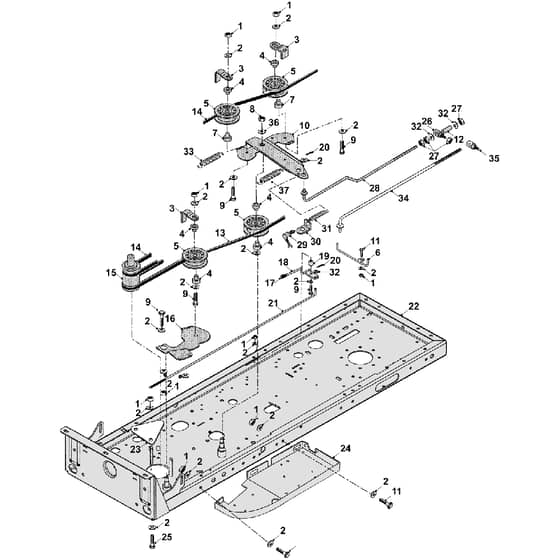

6 Pto And Transmission Drive Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
2	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
3	WE307187100 Out of stock	Belt Keeper	£8.02 £6.68
4	WE18831600 In stock	Spacer Jockey Wheel	£4.68 £3.90
5	WE20811500 In stock	PTO Jockey Pulley	£23.12 £19.27
6	WE328955500 Out of stock	C & Ww PTO Rear Belt Guide	£17.18 £14.32
7	WE31351100 Out of stock	Sweeper Jockey Cap	£7.08 £5.90
8	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
9	WE018001800 In stock	Bolt M8 X 50mm	£2.56 £2.13
10	WE328955100 Out of stock	2003 C Series Jockey Pulley Plate Assy	£77.32 £64.43
11	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
12	WE174008900 Out of stock	MK3 Park Brake Engage Rod Sleeve	£12.82 £10.68
13	WE2281110A In stock	Transmission Belt A82	£48.74 £40.62
14	WE229503401 Out of stock	A79 Clutching Belt K46	£55.26 £46.05
15	WE31330500 Out of stock	Engine Pulleymag Stop Clutch	£166.46 £138.72
16	WE307187000 Out of stock	Tractor PTO Jockey Pulley Plate	£51.52 £42.93
19	WE18833700 Out of stock	Pivot (Deck Overlock)	£5.78 £4.82
20	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
21	WE313513701 Out of stock	C Series Deck Tension Rod Bar Component	£50.62 £42.18
22	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
23	WE329592500 Out of stock	C Series Clutch Plate Assembly	£46.22 £38.52
24	WE327177700 Out of stock	Manual Running Board RH From 1101	£83.08 £69.23
26	WE187186100 Out of stock	MK3 Park Brake Engage Rod Trunnion	£8.24 £6.87
28	WE318952401 Out of stock	C Series Hbrake Engage Rod 10mm Longer	£69.48 £57.90
29	WE44945001 In stock	Brake Switchcw Spade Terminals	£27.54 £22.95
31	WE25812201 Out of stock	Brake Return Spring	£8.20 £6.83
32	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
33	WE259405600 Out of stock	Trunnion Damping Spring	£5.34 £4.45
34	WE327360900 Out of stock	Hbrake Trans. Rod 02 C Series	£39.82 £33.18
35	WE18806100 Out of stock	Trunion (PTO Engage)	£7.46 £6.22
37	WE25885300 Out of stock	Deck Assist Spring	£8.24 £6.87
