Countax C330 - From 01-01-2008 To 31-12-2011 - 1 Front Axel

Name: Countax C330 - From 01-01-2008 To 31-12-2011 - 1 Front Axel
SKU: c330_01012008_31122011_1f-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C330 - From 01-01-2008 To 31-12-2011 - 1 Front Axel

Description

Countax C Series

C330 - Tractor

From 01-01-2008 To 31-12-2011

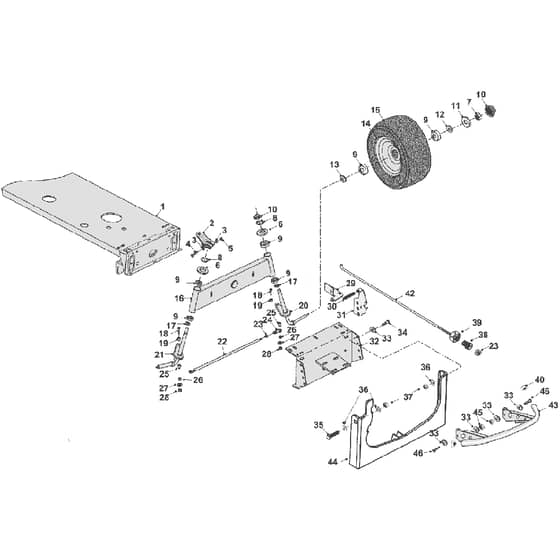

1 Front Axel Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
2	WE32702500 Out of stock	Steering Arm Assy	£45.24 £37.70
3	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
4	WE018005000 Out of stock	M10 X 60mm Coach Bolt Zincclear	£0.66 £0.55
5	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
6	WE183006200 Out of stock	Stub Axle Spacer	£7.96 £6.63
7	WE049381100 Out of stock	M12 Nyloc Nut	£0.28 £0.23
8	WE07921200 In stock	19mm External Circlip C1A140019	£0.36 £0.30
9	WE10802200 In stock	Front Wheel Bearing	£23.44 £19.53
10	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
11	WE30128100 Out of stock	Hub Cap Washer Front Wheel	£1.92 £1.60
12	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
13	WE088000500 Out of stock	Washer 19mm X 2mm	£0.42 £0.35
15	WE198005700 Out of stock	C330 Front Wheel Assembly 13X5-6	£137.86 £114.88
17	WE30127900 In stock	Washer 32 X 19.5	£2.50 £2.08
18	WE018002500 Out of stock	M10 X 90 Hex Head Bolt	£0.66 £0.55
19	WE31302400 Out of stock	Rose Joint Boss	£8.98 £7.48
20	WE327815101 Out of stock	C330 & S130 LH Stub Axle Assy	£116.42 £97.02
21	WE327815201 Out of stock	C330 & S130 RH Stub Axle Assy	£109.94 £91.62
22	WE183538400 Out of stock	C330C335S130 & S135 Track Rod	£20.26 £16.88
23	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
24	WE10872600 In stock	10mm Rod End	£27.42 £22.85
25	WE31337100 Out of stock	Rose Joint Shoulder Boss (Long)	£19.84 £16.53
26	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
29	WE301136400 Out of stock	MK3 C Series Bonnet Hinge Brkt 2002	£36.98 £30.82
30	WE25805200 Out of stock	Spring	£5.36 £4.47
31	WE301136600 Out of stock	RH Bonnet Stop MK3 Plastic Bonnet	£11.24 £9.37
32	WE327014600 Out of stock	Universal Front Axle Plate Assembly	£125.50 £104.58
33	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
34	WE01902300 Out of stock	Bolt M8X25mm	£0.38 £0.32
35	WE01820600 Out of stock	Bolt 516UNF X 1.14 HT ZP	£0.38 £0.32
36	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.60 £0.50
37	WE04827500 In stock	Nyloc Nut 516 UNF	£0.36 £0.30
38	WE189507400 Out of stock	Deck Tension Cradle Adjuster Nut	£6.44 £5.37
39	WE049382500 Out of stock	M16 Half Nut BZP	£1.66 £1.38
40	WE148014400 Out of stock	Stainless Steel Bullbar Plastic End Cap	£1.14 £0.95
42	WE318963201 Out of stock	C Series PTO Rod	£41.30 £34.42
43	WE327807600 Out of stock	Tractor Bullbar Assembly 08 To Current	£183.28 £152.73
44	WE327365700 Out of stock	2005 Deck Tension Cradle Welded Assy	£134.86 £112.38
45	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
46	WE018005700 Out of stock	Hx Hd Bolt Zink Plt & Clear Passivated	£0.88 £0.73
