Countax C300 - From 01-01-2009 To 01-01-2011 - 7 Transmission

Name: Countax C300 - From 01-01-2009 To 01-01-2011 - 7 Transmission
SKU: c300_01012009_01012011_7t-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C300 - From 01-01-2009 To 01-01-2011 - 7 Transmission

Description

Countax C Series

C300 - Tractor

From 01-01-2009 To 01-01-2011

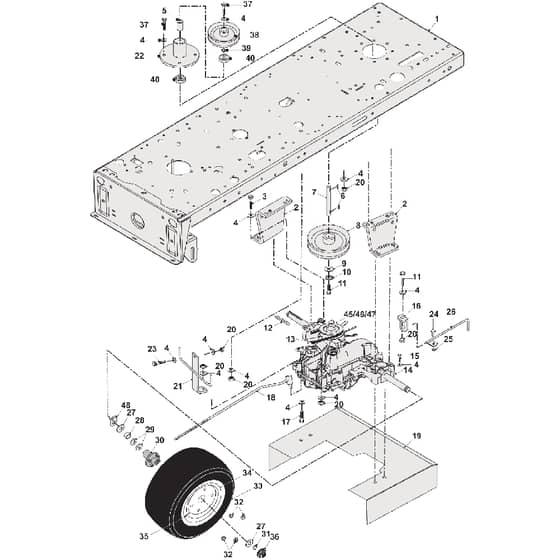

7 Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
2	WE307025900 Out of stock	C Series Transaxle Brkt 2000 6mm Thk	£47.04 £39.20
3	WE028003200 Out of stock	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.70 £0.58
4	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
5	WE31306200 Out of stock	PTO End Spacer	£6.22 £5.18
6	WE09823900 In stock	Key No 61	£0.84 £0.70
7	WE31306000 Out of stock	PTO Shaft	£59.84 £49.87
8	WE20870702 Out of stock	7 PTO Pulley	£48.74 £40.62
9	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£0.28 £0.23
10	WE088003800 In stock	M8 Internally Serrated Shakeproof Washe	£0.60 £0.50
11	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
12	WE09830700 Out of stock	Keyrear Wheel	£5.54 £4.62
13	WE229503401 Out of stock	PTO Belt	£55.26 £46.05
14	WE478000302 In stock	Hydrotx K46Cm 08	£738.00 £615.00
15	WE028662700 Out of stock	Bolt M8X65mm	£0.62 £0.52
16	WE307022200 Out of stock	Park Brake Switch Brkt Long	£8.20 £6.83
17	WE018001800 In stock	Bolt M8 X 50mm	£2.56 £2.13
19	WE30307101 Out of stock	2001 Cseries Transaxle Deflector	£66.68 £55.57
20	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
21	WE327020401 Out of stock	Transaxle Steady Ssembly	£39.20 £32.67
22	WE40835800 Out of stock	PTO Bearing Housing MK3 Comp.	£219.46 £182.88
24	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 10314816	£0.30 £0.25
25	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
26	WE321123301 Out of stock	Cseries Dump Valve Lever Assembly	£15.98 £13.32
27	WE30127800 Out of stock	Hub Cap Washer	£1.92 £1.60
28	WE189498701 Out of stock	K46 Transaxle Spacer 2008	£10.30 £8.58
29	WE089423700 Out of stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
30	WE198002000 Out of stock	Wheel Hub For 20 Wheel Cw Studs & Nuts	£56.12 £46.77
31	WE07921200 In stock	19mm External Circlip C1A140019	£0.36 £0.30
32	WE048000901 In stock	Ct Series Rear Wheel Nut	£2.48 £2.07
33	WE198001200 Out of stock	20 Rear Tyre Ctractor 20X8.00	£139.50 £116.25
34	WE198001100 Out of stock	20 Cseries& C4Wd Rear Rim	£99.92 £83.27
35	WE14889200 Out of stock	Wheel Valve	£10.92 £9.10
36	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
37	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
38	WE208000400 Out of stock	5 PTO Pulley	£41.60 £34.67
40	WE10811600 In stock	Bearing (PTO Housing)	£16.38 £13.65
44	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
45	TT1A646025300 Out of stock	Spline Collar	£5.34 £4.45
46	WE1A646083050 In stock	Fan White	£34.66 £28.88
47	WE200811600 Out of stock	70mm Dia K46 Input Pulley	£47.70 £39.75
48	WE307191801 Out of stock	K46 Transaxle Thrust Washer	£6.00 £5.00
