Countax C300 - From 01-01-2008 To 31-12-2008 - 06 Hydrostatic Transaxle

Description

Countax C Series

C300 - Tractor

From 01-01-2008 To 31-12-2008

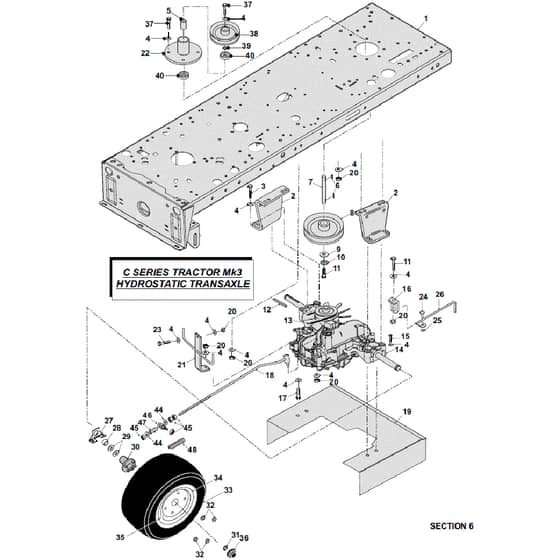

06 Hydrostatic Transaxle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327023302 Out of stock	Chassis Cseries	£645.08 £537.57
2	WE307025900 Out of stock	C Series Transaxle Brkt 2000 6mm Thk	£47.04 £39.20
3	WE028003200 Out of stock	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.70 £0.58
5	WE31306200 Out of stock	PTO End Spacer	£38.45 £32.04
6	WE09823900 In stock	Key No 61	£0.84 £0.70
7	WE31306000 Out of stock	PTO Shaft	£100.80 £84.00
8	WE20870702 Out of stock	7 PTO Pulley	£61.92 £51.60
9	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
10	WE088003800 In stock	M8 Internally Serrated Shakeproof Washe	£4.56 £3.80
11	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
12	WE09830700 Out of stock	Keyrear Wheel	£4.58 £3.82
13	WE229503401 In stock	PTO Belt	£89.52 £74.60
14	WE478000302 Out of stock	Hydrotx K46Cm 08	£1,027.07 £855.89
15	WE028662700 Out of stock	Bolt M8X65mm	£0.62 £0.52
16	WE307022200 Out of stock	Park Brake Switch Brkt Long	£8.20 £6.83
17	WE018001800 In stock	Bolt M8 X 50mm	£2.56 £2.13
19	WE30307101 Out of stock	2001 Cseries Transaxle Deflector	£66.68 £55.57
20	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
21	WE327020401 Out of stock	Transaxle Steady Ssembly	£39.20 £32.67
22	WE40835800 Out of stock	PTO Bearing Housing MK3 Comp.	£276.48 £230.40
24	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 10314816	£1.36 £1.13
25	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
26	WE321123301 Out of stock	Cseries Dump Valve Lever Assembly	£29.51 £24.59
27	WE307191801 Out of stock	K46 Transaxle Thrust Washer	£6.00 £5.00
28	WE189498701 Out of stock	K46 Transaxle Spacer 2008	£38.24 £31.87
29	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
30	WE198002000 Out of stock	Wheel Hub For 20 Wheel Cw Studs & Nuts	£56.12 £46.77
31	WE07921200 In stock	19mm External Circlip C1A140019	£0.23 £0.19
32	WE048000901 Out of stock	Ct Series Rear Wheel Nut	£2.57 £2.14
33	WE198001200 Out of stock	20 Rear Tyre Ctractor 20X8.00	£139.50 £116.25
34	WE198001100 Out of stock	20 Cseries& C4Wd Rear Rim	£120.84 £100.70
35	WE14889200 Out of stock	Wheel Valve	£10.92 £9.10
36	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
37	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
38	WE208000400 In stock	5 PTO Pulley	Was £43.04 £35.87 Special Price £29.95 £24.96
40	WE10811600 In stock	Bearing (PTO Housing)	£16.94 £14.12
41	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
42	WE29200101 Out of stock	Tow Bracket	£87.84 £73.20
43	WE04872100 Out of stock	M10 Locknut	£0.38 £0.32
44	WE088002400 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
46	WE187186100 Out of stock	MK3 Park Brake Engage Rod Trunnion	£8.24 £6.87
47	WE174008900 Out of stock	MK3 Park Brake Engage Rod Sleeve	£23.22 £19.35
48	WE259405100 Out of stock	2050 Comp Brake Rod Spring	£3.42 £2.85
