Description

Countax B Series

B60 - Tractor

From 01-10-2014 To 01-07-2015

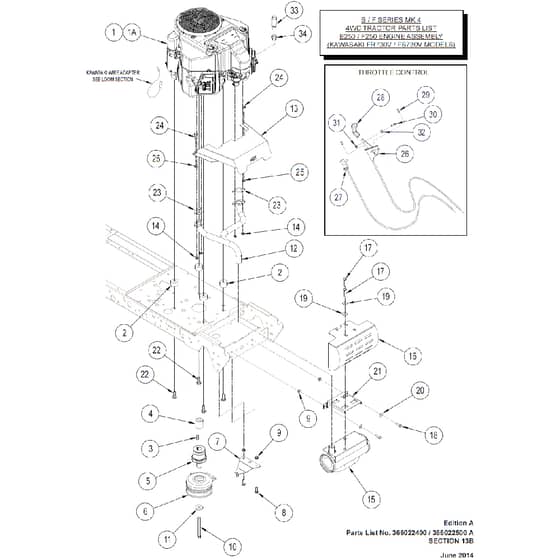

15 Kawasaki Engine Assy Parts Diagram

Ref. Img. Part No. Details
  1 26 Hp Kawasaki Fr730Vas50M
26 Hp Kawasaki Fr730Vas50M
WE159339700 Out of stock
26 Hp Kawasaki Fr730Vas50M
£2,512.78 £2,093.98

  1 26Hp Kawasaki Fs730Vas51M
26Hp Kawasaki Fs730Vas51M
WE159338501 Out of stock
26Hp Kawasaki Fs730Vas51M
£2,070.72 £1,725.60

  2 4Wd Engine Mount Spcr
4Wd Engine Mount Spcr
WE186006100 Out of stock
4Wd Engine Mount Spcr
£21.96 £18.30

  3 Key14Sq X 1 14 American Spec Rounded
Key14Sq X 1 14 American Spec Rounded
WE09853401 Out of stock
Key14Sq X 1 14 American Spec Rounded
£2.00 £1.67

  4 K730 Engine Pulley Spacer
K730 Engine Pulley Spacer
WE186006000 Out of stock
K730 Engine Pulley Spacer
£7.12 £5.93

  5 4Wd Pulley Asm
4Wd Pulley Asm
WE329600600 Out of stock
4Wd Pulley Asm
£69.40 £57.83

  6 Elec.Clutch Magstop
Elec.Clutch Magstop
WE44936100 In stock
Elec.Clutch Magstop
£376.60 £313.83

  7 Asm Clutch Retainer Front
Asm Clutch Retainer Front
WE328969500 Out of stock
Asm Clutch Retainer Front
£48.60 £40.50

  8 M8X25 Flange Bolt
M8X25 Flange Bolt
WE019484100 Out of stock
M8X25 Flange Bolt
£1.30 £1.08

  9 M8 Flange Nut
M8 Flange Nut
WE049383700 Out of stock
M8 Flange Nut
£0.82 £0.68

  10 716 UNF X 4.5 Bolt
716 UNF X 4.5 Bolt
WE01831000 Out of stock
716 UNF X 4.5 Bolt
£6.52 £5.43

  11 Engine Pulley Cap
Engine Pulley Cap
WE18312200 Out of stock
Engine Pulley Cap
£9.28 £7.73

  12 Exhaust Welded Assy Frfs540
Exhaust Welded Assy Frfs540
WE329599900 Out of stock
Exhaust Welded Assy Frfs540
£175.80 £146.50

  13 Heat Shieldkawasaki
Heat Shieldkawasaki
WE549005700 Out of stock
Heat Shieldkawasaki
£28.60 £23.83

  14 M8 Nyloc Nut
M8 Nyloc Nut
WE04920100 In stock
M8 Nyloc Nut
£0.28 £0.23

  15 Exhaust C500H C600H
Exhaust C500H C600H
WE401007001 Out of stock
Exhaust C500H C600H
£132.68 £110.57

  16 2004 Countax Heatshield
2004 Countax Heatshield
WE307199700 Out of stock
2004 Countax Heatshield
£66.24 £55.20

  17 M8X40mm Bright Zinc Plate Bolt
M8X40mm Bright Zinc Plate Bolt
WE018003200 Out of stock
M8X40mm Bright Zinc Plate Bolt
£0.70 £0.58

  18 M8 X 25 Hex Set Screw Self Colour
M8 X 25 Hex Set Screw Self Colour
WE019479700 In stock
M8 X 25 Hex Set Screw Self Colour
£0.30 £0.25

  19 Washer M8 X 25 X 3 Unplated
Washer M8 X 25 X 3 Unplated
WE089418600 In stock
Washer M8 X 25 X 3 Unplated
£0.28 £0.23

  20 Washer M8 X 21 X 1.6
Washer M8 X 21 X 1.6
WE088003700 In stock
Washer M8 X 21 X 1.6
£0.60 £0.50

  22 3.8 UNC X 2 Sae Grade 5
3.8 UNC X 2 Sae Grade 5
WE018993400 Out of stock
3.8 UNC X 2 Sae Grade 5
£1.50 £1.25

  23 B Engine Gasket
B Engine Gasket
WE528005200 Out of stock
B Engine Gasket
£19.80 £16.50

  24 M6 X 20 Flange Bolts(Non Serrated)
M6 X 20 Flange Bolts(Non Serrated)
WE019484600 Out of stock
M6 X 20 Flange Bolts(Non Serrated)
£1.92 £1.60

  25 M6 Nyloc Flange Nut
M6 Nyloc Flange Nut
WE049383800 Out of stock
M6 Nyloc Flange Nut
£0.46 £0.38

  26 Wtwin
Wtwin
WE528004600 Out of stock
Wtwin
£27.66 £23.05

  27 Choke Cable
Choke Cable
WE529469800 Out of stock
Choke Cable
£25.26 £21.05

  28 Control Knob (Throttle Cable)
Control Knob (Throttle Cable)
WE14810400 Out of stock
Control Knob (Throttle Cable)
£9.90 £8.25

  29 Pop Rivet 4.8mm X 10mm
Pop Rivet 4.8mm X 10mm
WE12824400 Out of stock
Pop Rivet 4.8mm X 10mm
£0.54 £0.45

  30 M4 X 12 Pozi Pan Ss Zinc Plated
M4 X 12 Pozi Pan Ss Zinc Plated
WE02826300 In stock
M4 X 12 Pozi Pan Ss Zinc Plated
Was £0.19 £0.16 Special Price £0.14 £0.12

  31 M4 Nyloc T
M4 Nyloc T
WE04826400 Out of stock
M4 Nyloc T
£0.36 £0.30

  33 Oil Drainage Valve
Oil Drainage Valve
WE52851200 Out of stock
Oil Drainage Valve
£26.02 £21.68

  34 Haexagon Adaptor M20 To 38 Taper
Haexagon Adaptor M20 To 38 Taper
WE183013902 Out of stock
Haexagon Adaptor M20 To 38 Taper
£14.56 £12.13


Description

Countax B Series

B60 - Tractor

From 01-10-2014 To 01-07-2015

15 Kawasaki Engine Assy Parts Diagram
