Countax B60 - From 01-07-2015 To 06-04-2016 - 9 Rear Transmission

Name: Countax B60 - From 01-07-2015 To 06-04-2016 - 9 Rear Transmission
SKU: b60_01072015_06042016_9r-group
Price: 0.34 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B60 - From 01-07-2015 To 06-04-2016 - 9 Rear Transmission

Description

Countax B Series

B60 - Tractor

From 01-07-2015 To 06-04-2016

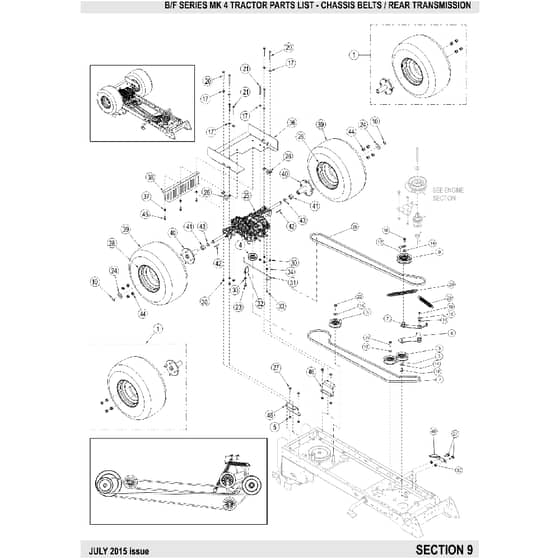

9 Rear Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405111100 Out of stock	Wheel Assy20 Wanda 24Wd Cseries 2013	£267.96 £223.30
2	WE22951900 Out of stock	PTO Belt	£58.92 £49.10
3	WE20811500 In stock	PTO Jockey Pulley	£23.90 £19.92
4	WE200811600 Out of stock	70mm Dia K46 Input Pulley	£47.70 £39.75
5	WE50100063 Out of stock	MK4 K730 Drive Belt Retrofit Kit	£258.72 £215.60
7	WE50100062 Out of stock	MK4 B Driv Belt Retrofit Kit	£494.38 £411.98
8	WE329594700 Out of stock	Assy Tensioner Plate Lower	£48.38 £40.32
9	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
10	WE07823200 Out of stock	E Clip 34	£0.88 £0.73
11	WE52824700 Out of stock	Oilite Bush	£5.42 £4.52
12	WE549006000 Out of stock	Idler Pulley Guard	£16.10 £13.42
14	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
15	WE08845200 Out of stock	M6X25X1.5 mm Washer	£1.24 £1.03
16	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.37 £17.81
17	WE088003700 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
18	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
19	WE028662300 Out of stock	M6X16mm Set Screw	£1.74 £1.45
20	WE028663200 Out of stock	M8X70mm Hex Bolt Zinc & Clear Passivate	£0.70 £0.58
21	WE028662700 Out of stock	Bolt M8X65mm	£0.62 £0.52
22	WE019483700 Out of stock	M8 X 30 Flange Bolt	£1.54 £1.28
23	WE019483500 Out of stock	M8 X 16 Flange Bolt	£1.08 £0.90
24	WE30127800 Out of stock	Hub Cap Washer	£1.79 £1.49
25	WE478000500 Out of stock	Hydrotx K574C 2Port 4Trac	£1,747.20 £1,456.00
26	WE307191801 Out of stock	K46 Transaxle Thrust Washer	£6.00 £5.00
27	WE019484100 Out of stock	M8X25 Flange Bolt	£0.41 £0.34
28	WE199503800 Out of stock	Wheel Rear Rim Wanda	£66.98 £55.82
29	WE25812201 Out of stock	Brake Return Spring	£10.43 £8.69
30	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
31	WE321123301 Out of stock	Cseries Dump Valve Lever Assembly	£29.51 £24.59
32	WE307022200 Out of stock	Park Brake Switch Brkt Long	£8.20 £6.83
33	WE12855800 Out of stock	14 X 12 Steel Flat Hd Solid Rivet Zin	£1.44 £1.20
34	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
35	WE22951800 Out of stock	Transmission Belt	£61.88 £51.57
36	WE30307101 Out of stock	2001 Cseries Transaxle Deflector	£66.68 £55.57
37	WE049381900 Out of stock	M6 X 3mm Captive Nut	£1.16 £0.97
38	WE542030100 Out of stock	B Seriesrear Guard	£87.36 £72.80
39	WE199503600 Out of stock	Tyre20 Wanda	£183.24 £152.70
40	WE198002000 Out of stock	Wheel Hub For 20 Wheel Cw Studs & Nuts	£56.12 £46.77
41	WE189503401 In stock	Cseries 4Wd Rear Wheel Spacer	Was £22.80 £19.00 Special Price £9.59 £7.99
42	WE09830700 Out of stock	Keyrear Wheel	£4.58 £3.82
43	WE081258200 Out of stock	32 X 20 X 1mm Galv Washer	£6.50 £5.42
44	WE048000800 Out of stock	2050 Wheel Nut	£3.74 £3.12
45	WE019484600 Out of stock	M6 X 20 Flange Bolts(Non Serrated)	£1.92 £1.60
46	WE541140500 Out of stock	Transaxle Mount Bracket	£39.48 £32.90
48	WE549010300 Out of stock	Mount Drive Belt Spring	£9.26 £7.72
