Countax B60 - From 01-02-2014 To 01-06-2014 - 2 Chassis Front Axle

Countax B60 - From 01-02-2014 To 01-06-2014 - 2 Chassis Front Axle
Countax B60 - From 01-02-2014 To 01-06-2014 - 2 Chassis Front Axle

Description

Countax B Series

B60 - Tractor

From 01-02-2014 To 01-06-2014

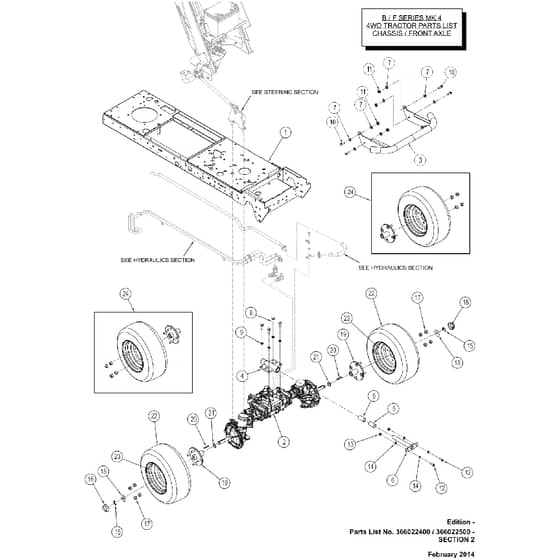

2 Chassis Front Axle Parts Diagram

Ref. Img. Part No. Details
  1 Assy Chassis Front 4Wd
Assy Chassis Front 4Wd
WE329594400 Out of stock
Assy Chassis Front 4Wd
£688.10 £573.42

  2 Kxh7N Hfwd Transmission
Kxh7N Hfwd Transmission
WE480000100 Out of stock
Kxh7N Hfwd Transmission
£2,334.40 £1,945.33

  3 Bull Bar Assy Welded
Bull Bar Assy Welded
WE327815300 Out of stock
Bull Bar Assy Welded
£201.20 £167.67

  4 4Wd Butterfly Assembly
4Wd Butterfly Assembly
WE329600700 Out of stock
4Wd Butterfly Assembly
£30.36 £25.30

  5 Axle Bearing Plastic Igus Psm222545
Axle Bearing Plastic Igus Psm222545
WE109011600 Out of stock
Axle Bearing Plastic Igus Psm222545
£10.90 £9.08

  6 Alpha Axle Pin Asm
Alpha Axle Pin Asm
WE329599100 Out of stock
Alpha Axle Pin Asm
£44.84 £37.37

  7 Washer 10.8Id X 20.7Od X 2mm Thk
Washer 10.8Id X 20.7Od X 2mm Thk
WE088002400 Out of stock
Washer 10.8Id X 20.7Od X 2mm Thk
£0.30 £0.25

  8 Screw Hex Hd Din933 M10 X 30 Grade 10.
Screw Hex Hd Din933 M10 X 30 Grade 10.
WE028892300 In stock
Screw Hex Hd Din933 M10 X 30 Grade 10.
£0.94 £0.78

  9 M10 Single Coil Spring Washer
M10 Single Coil Spring Washer
WE088002900 Out of stock
M10 Single Coil Spring Washer
£0.54 £0.45

  10 M10 X 25 Sscrew BZP
M10 X 25 Sscrew BZP
WE028002300 Out of stock
M10 X 25 Sscrew BZP
£1.45 £1.21

  11 M10 Nyloc Nut
M10 Nyloc Nut
WE04886100 In stock
M10 Nyloc Nut
Was £0.72 £0.60 Special Price £0.52 £0.43

  12 M8 X 25 Hex Set Screw Self Colour
M8 X 25 Hex Set Screw Self Colour
WE019479700 In stock
M8 X 25 Hex Set Screw Self Colour
£0.30 £0.25

  13 M8 Nyloc Nut
M8 Nyloc Nut
WE04920100 In stock
M8 Nyloc Nut
£0.28 £0.23

  14 Washer 516 T3 Lp Zinc Plated
Washer 516 T3 Lp Zinc Plated
WE08819500 Out of stock
Washer 516 T3 Lp Zinc Plated
£0.62 £0.52

  15 19mm External Circlip C1A140019
19mm External Circlip C1A140019
WE07921200 In stock
19mm External Circlip C1A140019
£0.36 £0.30

  16 Hub Cap (Moulded)
Hub Cap (Moulded)
WE14811800 Out of stock
Hub Cap (Moulded)
£6.78 £5.65

  17 2050 Wheel Nut
2050 Wheel Nut
WE048000800 Out of stock
2050 Wheel Nut
£2.64 £2.20

  18 Hub Cap Washer
Hub Cap Washer
WE30127800 Out of stock
Hub Cap Washer
£1.92 £1.60

  19 C4Wdwheel Hub Asm With M12 Studs
C4Wdwheel Hub Asm With M12 Studs
WE198003200 Out of stock
C4Wdwheel Hub Asm With M12 Studs
£77.38 £64.48

  20 316 Square Key 40mm Long
316 Square Key 40mm Long
WE09912600 Out of stock
316 Square Key 40mm Long
£6.36 £5.30

  21 32 X 20 X 1mm Galv Washer
32 X 20 X 1mm Galv Washer
WE081258200 Out of stock
32 X 20 X 1mm Galv Washer
£6.50 £5.42

  22 Tyre 16 Wanda
Tyre 16 Wanda
WE199503900 Out of stock
Tyre 16 Wanda
£102.18 £85.15

  23 18 X 6.50 Wheel Rim
18 X 6.50 Wheel Rim
WE198004300 In stock
18 X 6.50 Wheel Rim
Was £79.64 £66.37 Special Price £35.99 £29.99

  24 Wheel Assy 16 Wanda 4Wd Cseries 2013
Wheel Assy 16 Wanda 4Wd Cseries 2013
WE405111200 Out of stock
Wheel Assy 16 Wanda 4Wd Cseries 2013
£188.22 £156.85


Description

Countax B Series

B60 - Tractor

From 01-02-2014 To 01-06-2014

2 Chassis Front Axle Parts Diagram
