Countax B60 - From 01-02-2014 To 01-06-2014 - 11 Deck Lift

Description

Countax B Series

B60 - Tractor

From 01-02-2014 To 01-06-2014

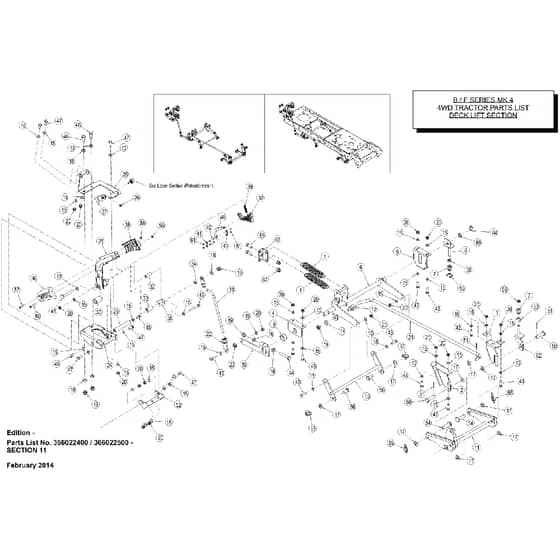

11 Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE25885300 Out of stock	Deck Assist Spring	£8.24 £6.87
4	WE302080300 Out of stock	Bracket Right Hand Rear Hanging	£13.84 £11.53
5	WE302080500 Out of stock	Brkt Left Hand Rear Hanging	£17.00 £14.17
6	WE329600200 Out of stock	Assy 2013 Rear Deck Hanging Bracket	£152.88 £127.40
7	WE189501800 Out of stock	Deck Level Hex Adjuster Nut Nov 04	£7.06 £5.88
8	WE328961400 Out of stock	Diesel & Kawasaki Rear Deck Adjust Brkt	£34.04 £28.37
9	WE31323500 Out of stock	H.E Lift Bar Spacer	£8.62 £7.18
10	WE301965400 Out of stock	Ad Manual Deck Lift Lower Linkage Arm	£35.38 £29.48
11	WE328969400 Out of stock	Asm Front Cradle	£117.82 £98.18
12	WE189497500 Out of stock	2002 Tractor Deck Level Trunion	£9.76 £8.13
13	WE549129100 Out of stock	Brkt Rear Deck Lift Link	£44.88 £37.40
14	WE088004500 Out of stock	M10 X 24 X 2 Tl Washer	£0.88 £0.73
15	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
16	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
17	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
19	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
20	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
22	WE327806100 Out of stock	Manual Deck Lift Adjuster Rod Plate Asse	£36.72 £30.60
23	WE183529500 Out of stock	Cseries Deck Lift Pivot Spacer	£4.66 £3.88
24	WE328969300 Out of stock	Asm Manual Deck Lift Carry Plate Welded	£40.64 £33.87
25	WE541146100 Out of stock	Brkt Deck Lift Attachment Top	£21.66 £18.05
26	WE019479500 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	Was £0.41 £0.34 Special Price £0.24 £0.20
27	WE329600400 Out of stock	Welded Assypotentiometer Pivot	£9.94 £8.28
28	WE329599400 Out of stock	Asm Deck Lift Handle	£39.04 £32.53
29	WE186003000 Out of stock	Deck Handle Cross Shaft	£10.54 £8.78
30	WE183864100 Out of stock	Spacer Deck Lift Handle Cross Shaft	£4.60 £3.83
31	WE329598200 Out of stock	Yoke Rod Welded Asm	£50.52 £42.10
32	WE186005600 Out of stock	Spacer Deck Lift Support Brkk	£7.92 £6.60
33	WE186005000 Out of stock	Spacer Deck Lift	£4.92 £4.10
34	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
35	WE549119300 Out of stock	Brkt Deckt Lift Support	£5.06 £4.22
36	WE149550400 Out of stock	Deck Lift RH Handle Cover Black	£1.40 £1.17
37	WE149550601 Out of stock	Manual Deck Lift Handle Trigger	£2.26 £1.88
38	WE149550500 Out of stock	Deck Lift LH Handle Cover Black	£1.40 £1.17
39	WE259405900 Out of stock	Manual Deck Lift Handle Spring 2008	£1.38 £1.15
40	WE327878100 Out of stock	Deck Lift Handle Link Welded Assembly	£38.92 £32.43
41	WE301965300 Out of stock	Manual Deck Lift Slide Plate	£7.12 £5.93
42	WE183528801 In stock	Manual Deck Lift Link Slide Pin	Was £6.26 £5.22 Special Price £3.59 £2.99
43	WE019479700 In stock	M8 X 25 Hex Set Screw Self Colour	£0.30 £0.25
44	WE018002400 Out of stock	M10 X 55 Hex Head Bolt	£0.70 £0.58
45	WE028001000 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
46	WE028002300 Out of stock	M10 X 25 Sscrew BZP	£1.45 £1.21
47	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
48	WE018005300 Out of stock	M10 X 65mm Hex Head Bolt BZP	£0.66 £0.55
49	WE018000600 In stock	Bolt M8 X 60mm	£3.02 £2.52
50	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£8.14 £6.78
51	WE06823300 Out of stock	Split Pin 1 X 18 (Snowblade)	£0.24 £0.20
52	WE541146000 Out of stock	Brkt Deck Lift Attachment Bottom	£11.14 £9.28
53	WE07921200 In stock	19mm External Circlip C1A140019	£0.36 £0.30
54	WE31336800 Out of stock	Deck Lift Pin (Front)	£10.42 £8.68
55	WE11836700 In stock	Rue Clip	£1.42 £1.18
56	WE31337200 Out of stock	Deck Lift Pin (Rear)	£10.88 £9.07
57	WE028004000 Out of stock	M5 X 30mm Csk Socket Head Screw Black	£1.08 £0.90
58	WE048001800 Out of stock	M5 Half Nut Black Finish	£0.90 £0.75
59	WE04872100 Out of stock	M10 Locknut	£0.42 £0.35
60	WE029425000 Out of stock	M5 X 35 Csk Socket Head Screw Black	£0.64 £0.53
61	WE07986100 Out of stock	4mm Eclip D15004mm	£0.64 £0.53
62	WE329600900 Out of stock	Deck Adjustment Brkt Asm	£14.30 £11.92
63	WE549004800 Out of stock	Deck Lift Spring Anchor	£2.08 £1.73
64	WE078000800 Out of stock	E Clip M12 Plated	£0.88 £0.73
65	WE089423700 Out of stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
66	WE019483600 Out of stock	M8 X 20 Flange Bolt	£2.00 £1.67
67	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
