Countax B60 4Trac - From 09-09-2019 - 23 Deck Lift Handle

Name: Countax B60 4Trac - From 09-09-2019 - 23 Deck Lift Handle
SKU: b604trac_09092019_23-group
Price: 0.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B60 4Trac - From 09-09-2019 - 23 Deck Lift Handle

Description

Countax B Series

B60 4TRAC - Tractor

From 09-09-2019

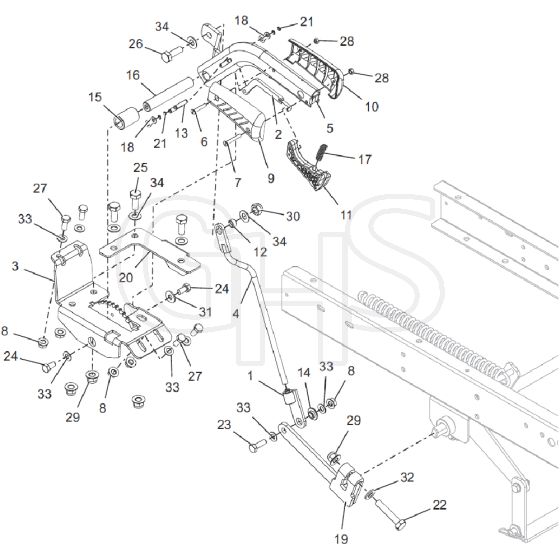

23 Deck Lift Handle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327806100 Out of stock	Manual Deck Lift Adjuster Rod Plate Asse	£36.72 £30.60
2	WE327878100 Out of stock	Deck Lift Handle Link Welded Assembly	£38.92 £32.43
3	WE328969800 Out of stock	Asm Manual Deck Lift Carry Plate Welded	£130.90 £109.08
4	WE329598200 Out of stock	Yoke Rod Welded Asm	£50.52 £42.10
5	WE329602800 Out of stock	Asm Deck Lift Handle	£40.72 £33.93
6	WE028004000 Out of stock	M5 X 30mm Csk Socket Head Screw Black	£1.08 £0.90
7	WE029425000 Out of stock	M5 X 35 Csk Socket Head Screw Black	£0.64 £0.53
8	WE049383700 Out of stock	M8 Flange Nut	£0.82 £0.68
9	WE149550400 Out of stock	Deck Lift RH Handle Cover Black	£1.40 £1.17
10	WE149550500 Out of stock	Deck Lift LH Handle Cover Black	£1.40 £1.17
11	WE149550601 Out of stock	Manual Deck Lift Handle Trigger	£2.26 £1.88
12	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
13	WE183528801 In stock	Manual Deck Lift Link Slide Pin	Was £6.26 £5.22 Special Price £3.59 £2.99
14	WE183529500 Out of stock	Cseries Deck Lift Pivot Spacer	£4.66 £3.88
15	WE183864100 Out of stock	Spacer Deck Lift Handle Cross Shaft	£4.60 £3.83
16	WE186006800 Out of stock	Deck Handle Cross Shaft	£6.92 £5.77
17	WE259405900 Out of stock	Manual Deck Lift Handle Spring 2008	£1.38 £1.15
18	WE301965300 Out of stock	Manual Deck Lift Slide Plate	£7.12 £5.93
19	WE301965400 Out of stock	Ad Manual Deck Lift Lower Linkage Arm	£35.38 £29.48
20	WE541147400 In stock	Brkt Deck Lift Attachment Top	Was £10.32 £8.60 Special Price £4.79 £3.99
21	WE078000700 Out of stock	9mm Grip Ring Jan 03	£1.42 £1.18
22	WE018002400 Out of stock	M10 X 55 Hex Head Bolt	£0.70 £0.58
23	WE019479700 In stock	M8 X 25 Hex Set Screw Self Colour	£0.30 £0.25
24	WE028001000 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
25	WE028002300 Out of stock	M10 X 25 Sscrew BZP	£1.45 £1.21
26	WE028892300 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
27	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
28	WE048001800 Out of stock	M5 Half Nut Black Finish	£0.90 £0.75
29	WE049381600 Out of stock	M10 Flanged Nyloc Nut	£0.40 £0.33
30	WE04886100 In stock	M10 Nyloc Nut	Was £0.72 £0.60 Special Price £0.52 £0.43
32	WE088002400 Out of stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.30 £0.25
33	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
