Description

Countax B Series

B250 - Tractor

From A0328984 06-04-2016

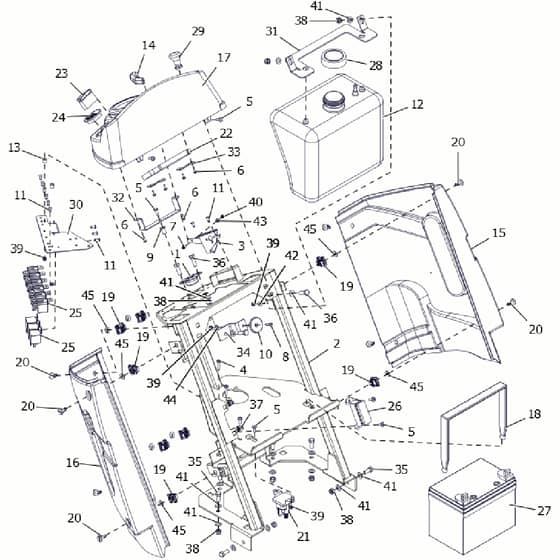

5 Console Parts Diagram

Ref. Img. Part No. Details
  3 Wtwin
Wtwin
WE528004600 Out of stock
Wtwin
£27.66 £23.05

  4 Flanged Button Head Bolt V2050 Bonnet
Flanged Button Head Bolt V2050 Bonnet
WE018003700 Out of stock
Flanged Button Head Bolt V2050 Bonnet
£0.88 £0.73

  5 M5 X 16mm Flang Butt Hd Sckt Drive Scre
M5 X 16mm Flang Butt Hd Sckt Drive Scre
WE019479500 In stock
M5 X 16mm Flang Butt Hd Sckt Drive Scre
Was £0.41 £0.34 Special Price £0.24 £0.20

  6 K3.0mm X 12mm Pt Screws
K3.0mm X 12mm Pt Screws
WE019484400 Out of stock
K3.0mm X 12mm Pt Screws
£0.30 £0.25

  7 M4 X 12 Pozi Pan Ss Zinc Plated
M4 X 12 Pozi Pan Ss Zinc Plated
WE02826300 In stock
M4 X 12 Pozi Pan Ss Zinc Plated
Was £0.19 £0.16 Special Price £0.14 £0.12

  8 Screw M5 X 20 Csk Hd Nylon
Screw M5 X 20 Csk Hd Nylon
WE029429100 Out of stock
Screw M5 X 20 Csk Hd Nylon
£0.54 £0.45

  9 M5 Jack Nut V2050 Bonnet Trim Fixing
M5 Jack Nut V2050 Bonnet Trim Fixing
WE048001400 Out of stock
M5 Jack Nut V2050 Bonnet Trim Fixing
£6.00 £5.00

  10 Magnet Bonnet Catch
Magnet Bonnet Catch
WE119072500 Out of stock
Magnet Bonnet Catch
£13.32 £11.10

  11 Pop Rivet 4.8mm X 10mm
Pop Rivet 4.8mm X 10mm
WE12824400 Out of stock
Pop Rivet 4.8mm X 10mm
£0.54 £0.45

  12 Fuel Tank With Hole For Guage 03
Fuel Tank With Hole For Guage 03
WE148015400 Out of stock
Fuel Tank With Hole For Guage 03
£59.98 £49.98

  13 West Pcb Case 9mm Plastic Spacer
West Pcb Case 9mm Plastic Spacer
WE148017700 Out of stock
West Pcb Case 9mm Plastic Spacer
£0.64 £0.53

  14 Control Knob (Throttle Cable)
Control Knob (Throttle Cable)
WE14810400 Out of stock
Control Knob (Throttle Cable)
£9.90 £8.25

  15 Console Mould LH Countax (2013)
Console Mould LH Countax (2013)
WE148993400 Out of stock
Console Mould LH Countax (2013)
£76.42 £63.68

  16 Console Mould RH Countax (2013)
Console Mould RH Countax (2013)
WE148993800 Out of stock
Console Mould RH Countax (2013)
£76.42 £63.68

  17 Dashboard Standard 2013 Tractor
Dashboard Standard 2013 Tractor
WE148995600 Out of stock
Dashboard Standard 2013 Tractor
£24.62 £20.52

  18 Battery Strap
Battery Strap
WE149499500 In stock
Battery Strap
£13.54 £11.28

  19 Dzus Receptacle
Dzus Receptacle
WE149499900 In stock
Dzus Receptacle
£0.66 £0.55

  20 Stud ¼ Turn Slot Hd Dzus D1004050030
Stud ¼ Turn Slot Hd Dzus D1004050030
WE148996800 In stock
Stud ¼ Turn Slot Hd Dzus D1004050030
£1.12 £0.93

  21 Starter Solenoid
Starter Solenoid
WE44814801 In stock
Starter Solenoid
£55.36 £46.13

  22 Clarex Display Dashboard 2022 Version
Clarex Display Dashboard 2022 Version
WE448999901 Out of stock
Clarex Display Dashboard 2022 Version
£240.24 £200.20

  23 Switch Rocker
Switch Rocker
WE449880200 Out of stock
Switch Rocker
£17.68 £14.73

  25 Electric Relay 12V 30A With Diode
Electric Relay 12V 30A With Diode
WE449562700 Out of stock
Electric Relay 12V 30A With Diode
£24.80 £20.67

  26 Fuse Box 6 Way
Fuse Box 6 Way
WE448017700 Out of stock
Fuse Box 6 Way
£12.34 £10.28

  28 Fuel Cap
Fuel Cap
WE01538400 In stock
Fuel Cap
£16.57 £13.81

  29 Choke Cable
Choke Cable
WE529469800 In stock
Choke Cable
£25.26 £21.05

  30 Relay Bracket
Relay Bracket
WE542020200 Out of stock
Relay Bracket
£3.76 £3.13

  31 Fuel Tank Bracket
Fuel Tank Bracket
WE549111600 Out of stock
Fuel Tank Bracket
£15.46 £12.88

  32 Dashboard Mount Brkt
Dashboard Mount Brkt
WE549112500 Out of stock
Dashboard Mount Brkt
£12.40 £10.33

  33 Dash Display Mount Bracket
Dash Display Mount Bracket
WE549112600 Out of stock
Dash Display Mount Bracket
£0.44 £0.37

  34 Brkt Magnet Catch
Brkt Magnet Catch
WE549119700 Out of stock
Brkt Magnet Catch
£5.18 £4.32

  35 Screw Hex Hd Din933 M8 X 20 Grade 10.9
Screw Hex Hd Din933 M8 X 20 Grade 10.9
WE028893500 In stock
Screw Hex Hd Din933 M8 X 20 Grade 10.9
£0.58 £0.48

  36 M8 X 25 Hex Set Screw Self Colour
M8 X 25 Hex Set Screw Self Colour
WE019479700 In stock
M8 X 25 Hex Set Screw Self Colour
£0.30 £0.25

  37 M5 Cage Nut 3mm Mat
M5 Cage Nut 3mm Mat
WE049382600 Out of stock
M5 Cage Nut 3mm Mat
£0.82 £0.68

  38 M8 Nyloc Nut
M8 Nyloc Nut
WE04920100 In stock
M8 Nyloc Nut
£0.28 £0.23

  39 Nut
Nut
WE04885900 In stock
Nut
£0.90 £0.75

  40 M4 Nyloc T
M4 Nyloc T
WE04826400 Out of stock
M4 Nyloc T
£0.36 £0.30

  41 Washer 516 T3 Lp Zinc Plated
Washer 516 T3 Lp Zinc Plated
WE08819500 Out of stock
Washer 516 T3 Lp Zinc Plated
£0.62 £0.52

  42 M5 Washer Form C Od 12.5mm
M5 Washer Form C Od 12.5mm
WE088002800 In stock
M5 Washer Form C Od 12.5mm
Was £0.54 £0.45 Special Price £0.23 £0.19

  45 Dzus 14 Turn Retain Washer
Dzus 14 Turn Retain Washer
WE149500000 Out of stock
Dzus 14 Turn Retain Washer
£1.38 £1.15


Description

Countax B Series

B250 - Tractor

From A0328984 06-04-2016

5 Console Parts Diagram
