Description

Countax B Series

B250 - Tractor

From A0328984 06-04-2016

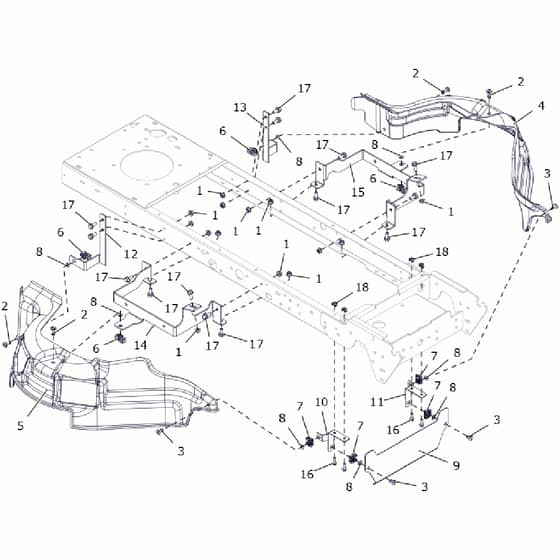

25 Guarding Assy Parts Diagram

Ref. Img. Part No. Details
  1 M8 Flange Nut
M8 Flange Nut
WE049383700 Out of stock
M8 Flange Nut
£0.82 £0.68

  2 Stud Slot Head 16.5mm Long
Stud Slot Head 16.5mm Long
WE148020900 Out of stock
Stud Slot Head 16.5mm Long
£3.59 £2.99

  3 Stud ¼ Turn Slot Hd Dzus D1004050030
Stud ¼ Turn Slot Hd Dzus D1004050030
WE148996800 In stock
Stud ¼ Turn Slot Hd Dzus D1004050030
£1.12 £0.93

  4 MK4 Tractor Guard LH
MK4 Tractor Guard LH
WE148996900 Out of stock
MK4 Tractor Guard LH
£101.30 £84.42

  5 MK4 Tractor Guard RH
MK4 Tractor Guard RH
WE148997000 Out of stock
MK4 Tractor Guard RH
£99.32 £82.77

  6 Receptacle Snapin Back Load 3.6mm4mm
Receptacle Snapin Back Load 3.6mm4mm
WE148997800 In stock
Receptacle Snapin Back Load 3.6mm4mm
£3.18 £2.65

  7 Dzus Receptacle
Dzus Receptacle
WE149499900 In stock
Dzus Receptacle
£0.66 £0.55

  8 Dzus 14 Turn Retain Washer
Dzus 14 Turn Retain Washer
WE149500000 Out of stock
Dzus 14 Turn Retain Washer
£1.38 £1.15

  9 Clutch Guard Front
Clutch Guard Front
WE549007400 Out of stock
Clutch Guard Front
£21.28 £17.73

  10 Upper Clutch Guard
Upper Clutch Guard
WE549007500 Out of stock
Upper Clutch Guard
£18.82 £15.68

  11 Clutch Guard Lower
Clutch Guard Lower
WE549007600 Out of stock
Clutch Guard Lower
£11.80 £9.83

  12 Brkt RH Rear Plastic Guard Mount
Brkt RH Rear Plastic Guard Mount
WE549219300 Out of stock
Brkt RH Rear Plastic Guard Mount
£16.84 £14.03

  13 Brkt LH Rear Plastic Guard Mount
Brkt LH Rear Plastic Guard Mount
WE549219400 Out of stock
Brkt LH Rear Plastic Guard Mount
£16.84 £14.03

  14 Frame RH Side Guard
Frame RH Side Guard
WE549219600 Out of stock
Frame RH Side Guard
£61.80 £51.50

  15 Frame LH Side Guard
Frame LH Side Guard
WE549219700 Out of stock
Frame LH Side Guard
£31.28 £26.07

  16 M6 X 20 Flange Bolts(Non Serrated)
M6 X 20 Flange Bolts(Non Serrated)
WE019484600 Out of stock
M6 X 20 Flange Bolts(Non Serrated)
£1.92 £1.60

  17 M8 X 20 Flange Bolt
M8 X 20 Flange Bolt
WE019483600 Out of stock
M8 X 20 Flange Bolt
£2.00 £1.67

  18 M6 X 3mm Captive Nut
M6 X 3mm Captive Nut
WE049381900 Out of stock
M6 X 3mm Captive Nut
£1.16 £0.97


Description

Countax B Series

B250 - Tractor

From A0328984 06-04-2016

25 Guarding Assy Parts Diagram
