Countax A2550 He - 7 Console

Name: Countax A2550 He - 7 Console
SKU: a2550he___7-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax A Series

A2550 HE - Tractor

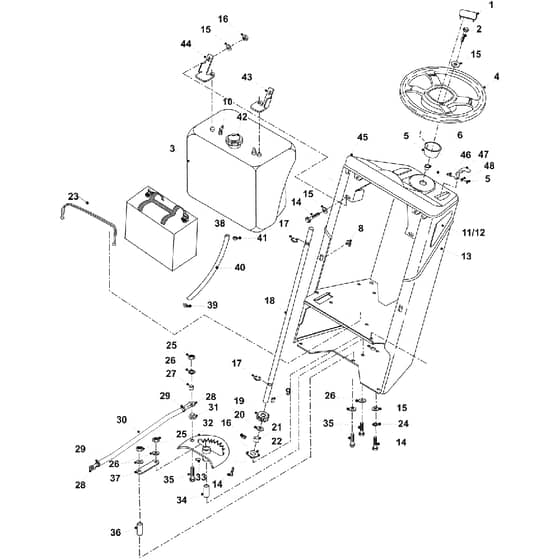

7 Console Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	WE02826000 In stock	Bolt M8 X 25mm	£0.38 £0.32
3	WE148015400 Out of stock	Fuel Tank With Hole For Guage 03	£59.98 £49.98
4	WE149591300 Out of stock	Steering Wheel Assy (2013)	£98.96 £82.47
5	WE04826400 Out of stock	M4 Nyloc T	£0.36 £0.30
6	WE149588800 Out of stock	Steering Column Upper Bush	£4.52 £3.77
8	WE049381900 Out of stock	M6 X 3mm Captive Nut	£1.16 £0.97
9	WE09823900 In stock	Key No 61	£0.84 £0.70
10	WE449665300 Out of stock	Fuel Level Sender 208mm Long 16mm Hole	£42.06 £35.05
12	WE148986300 Out of stock	Cda Series Knee Pad RH	£50.16 £41.80
13	WE327807101 Out of stock	C Series Consol Welded Assembly 2008	£510.82 £425.68
14	WE028893500 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
15	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
16	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
17	WE07823800 Out of stock	Circlip 58 External	£0.90 £0.75
19	WE213112100 In stock	Steering Gear 2050 Cser Wwk1850	£72.38 £60.32
20	WE08822700 In stock	Washer 58 T3 Lp	Was £0.58 £0.48 Special Price £0.42 £0.35
21	WE18401500 Out of stock	Steering Rod Spacer	£10.20 £8.50
22	WE10801700 Out of stock	Column Lower Bearing	£20.36 £16.97
23	WE148015900 Out of stock	RH Side Panel For D1850 & K1850 0903	£161.54 £134.62
24	WE088003800 In stock	M8 Internally Serrated Shakeproof Washe	£0.60 £0.50
25	WE04836100 In stock	M12 Nyloc Nut Metric Fine 1.25 Pitch	£1.56 £1.30
26	WE088003600 In stock	Washer M12 X 24 X 1.6	£0.60 £0.50
27	WE183016900 Out of stock	Track Rod End Spacer 12.7Od X 10Id X 7	£7.22 £6.02
28	WE108728000 Out of stock	M12 Rod Joint 2050	£35.02 £29.18
30	WE313007400 Out of stock	2050 Steering Rod	£34.34 £28.62
31	WE189513700 Out of stock	Xw Series 15mm Rose Joint Spacer	£2.44 £2.03
32	WE301134100 In stock	A2050 19 Tooth Special Quadrant	£179.50 £149.58
33	WE11808600 Out of stock	Grease Nipple	£0.92 £0.77
34	WE31337400 Out of stock	Steering Rack Pivot	£17.68 £14.73
35	WE019478800 Out of stock	M12 X 60mm Bolt (Zinc)	£0.88 £0.73
36	WE31337500 Out of stock	Steering Support Boss	£18.08 £15.07
38	WE458141201 Out of stock	Lucas 12V Sealed Battery Lslc3412	£238.02 £198.35
39	WE11867100 Out of stock	Hose Clip (Spring Type)	£0.90 £0.75
40	WE14803200 Out of stock	Fuel Feed Pipe 80059	£10.66 £8.88
41	WE11856900 Out of stock	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
42	WE01538400 In stock	Fuel Cap	£16.57 £13.81
43	WE307187400 Out of stock	2002 Fuel Tank Brkt	£9.82 £8.18
45	WE148986100 In stock	Dashboard 2008	Was £13.88 £11.57 Special Price £5.99 £4.99
46	WE02826300 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	Was £0.19 £0.16 Special Price £0.14 £0.12
47	WE14810400 Out of stock	Control Knob (Throttle Cable)	£9.90 £8.25
