Countax A2050 - From 01-01-2009 To 01-09-2011 - 13 Transmission

Name: Countax A2050 - From 01-01-2009 To 01-09-2011 - 13 Transmission
SKU: a2050_01012009_01092011_13-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax A2050 - From 01-01-2009 To 01-09-2011 - 13 Transmission

Description

Countax A Series

A2050 - Tractor

From 01-01-2009 To 01-09-2011

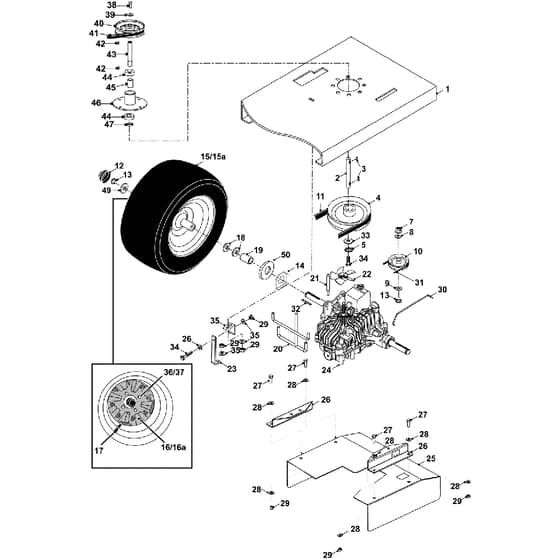

13 Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327006300 Out of stock	2050 Chassis	£1,085.72 £904.77
2	WE31306000 Out of stock	PTO Shaft	£59.84 £49.87
3	WE09823900 In stock	Key No 61	£0.84 £0.70
4	WE20870702 Out of stock	7 Pulley (Capitol)	£48.74 £40.62
5	WE088003800 In stock	M8 Star Washer (Vac)	£0.60 £0.50
7	WE049381600 Out of stock	M10 Flanged Nyloc Nut	£0.40 £0.33
8	WE089418800 Out of stock	2050 Transaxle Fan Washer	£1.92 £1.60
10	WE20904400 In stock	2050 Hydrostatic Box Pulley	£47.56 £39.63
11	WE228001501 Out of stock	PTO Belt	£66.68 £55.57
12	WE14811800 Out of stock	Hub Cap (Moulded)	£6.78 £5.65
13	WE07921200 In stock	19mm External Circlip C1A140019	£0.36 £0.30
15	WE198005000 Out of stock	Wheel	£202.16 £168.47
15	WE198000400 Out of stock	2050 Rear Tyre 23X10.5012Nhsty12231050 (15a)	£244.06 £203.38
16	WE198001300 Out of stock	2050 Rear Wheel Hub Hukey01 (16a)	£58.04 £48.37
17	WE14889200 Out of stock	Wheel Valve	£10.92 £9.10
18	WE089423700 Out of stock	Washer 3.4 T3 Lp Z.P	£1.92 £1.60
19	WE183018501 Out of stock	2050 Wheel Spacer	£13.62 £11.35
20	WE327021800 Out of stock	2050 Double Belt Guide	£6.22 £5.18
21	WE313019100 Out of stock	2050 LH Taxle Steady Rod	£20.54 £17.12
22	WE148002900 Out of stock	K62 20.50 Plastic Fa	£15.64 £13.03
23	WE292003500 Out of stock	2050 RH Transaxle Support Bar	£20.84 £17.37
25	WE301119700 Out of stock	2050 Transaxle Deflector	£91.68 £76.40
26	WE301119500 Out of stock	2050 Transaxle Grass Deflector Bracket	£58.76 £48.97
27	WE028893500 In stock	Bolt M8 X 20mm	£0.58 £0.48
28	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£0.62 £0.52
29	WE04920100 In stock	M8 Nyloc Nut	£0.28 £0.23
30	WE313010600 Out of stock	2050 Dump Valve Rod	£58.30 £48.58
32	3666 Out of stock	Key 1/4 X 1/4	£5.54 £4.62
33	WE089418600 In stock	Washer M8 X 25 X 3 Unplated	£0.28 £0.23
35	WE30137700 Out of stock	Torque Bracket	£19.72 £16.43
36	WE128000200 Out of stock	Diesel A2050 Wheel Stud	£3.56 £2.97
37	WE048000800 Out of stock	2050 Wheel Nut	£2.64 £2.20
40	WE208000400 Out of stock	5 PTO Pulley	£41.60 £34.67
41	WE22950100 Out of stock	Transmission Belt	£69.66 £58.05
43	WE183013700 Out of stock	Diesel P.T.O. Shaft	£29.98 £24.98
44	WE10802200 In stock	Front Wheel Bearing	£23.44 £19.53
45	WE31334800 Out of stock	Spacer PTO Centre	£14.28 £11.90
46	WE40835800 Out of stock	PTO Bearing Housing	£219.46 £182.88
47	WE31306200 Out of stock	PTO End Spacer	£6.22 £5.18
49	WE30127800 Out of stock	Hub Cap Washer	£1.92 £1.60
50	WE089423500 Out of stock	Washer Transaxle	£3.24 £2.70
