Countax A2050 - From 01-01-2009 To 01-09-2011 - 08 Seat

Description

Countax A Series

A2050 - Tractor

From 01-01-2009 To 01-09-2011

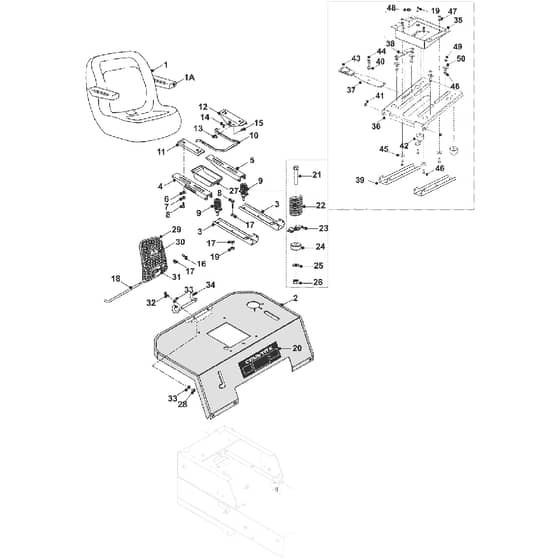

08 Seat Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405463500 Out of stock	Kita25 Seat Conversion Milsco To Seat	£522.32 £435.27
1	WE30118000 Out of stock	Seat Plate Adjuster LH (1A)	£8.26 £6.88
2	WE327809500 Out of stock	Adkv Rear Body	£349.88 £291.57
3	WE301985800 Out of stock	Seat Attachment Channel 2008	£53.36 £44.47
4	WE30117700 Out of stock	Adjustable Seat Channel RH	£16.22 £13.52
5	WE30117800 Out of stock	Adjustable Seat Channel LH	£16.22 £13.52
6	WE08925400 Out of stock	M8 X 40 X 3mm Heavy Guage Washer	£0.28 £0.23
7	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
8	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
9	WE405003200 Out of stock	Seat Spring Kit Assy	£8.90 £7.42
10	WE30203100 Out of stock	Seat Handle	£14.32 £11.93
13	WE07868700 Out of stock	14 Starloc Washer	£0.54 £0.45
14	WE25831100 Out of stock	Spring	£8.18 £6.82
15	WE012885800 Out of stock		£0.37 £0.31
16	WE06849100 Out of stock	2mm R Clip	£0.60 £0.50
17	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£1.36 £1.13
18	WE31301800 Out of stock	Seat Pivot Rod	£37.66 £31.38
19	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
20	WE359549100 Out of stock	C & Ww 2Wd Instruction Decal Rear Body	£11.08 £9.23
21	WE01918500 Out of stock	M8 X 40 Csk Hd Allen Bolt	£0.36 £0.30
22	WE25858100 Out of stock	Spring Sliding Seat	£13.16 £10.97
23	WE27835400 Out of stock	Spring Retaining Washer (Seat)	£5.08 £4.23
24	WE31330800 Out of stock	Spacer(He Cseries Seat Spring)	£5.24 £4.37
25	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
26	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
27	WE14848500 In stock	Tool Tray	Was £24.70 £20.58 Special Price £17.81 £14.84
28	2047 In stock	Nut	£0.90 £0.75
29	WE149496400 Out of stock	PTO Flap Shell Tractor Manual (Plastic)	£58.44 £48.70
30	WE35809500 Out of stock	PTO Danger Label	£33.78 £28.15
31	WE35891200 Out of stock	Sweeper Belt Decal (Symbols Only)	£5.71 £4.76
32	6872 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
33	2053 In stock	M5 Washer Form C Od 12.5mm	£0.54 £0.45
34	WE542032800 Out of stock	Brkt PTO Flap A Series	£17.56 £14.63
35	WE301985400 Out of stock	Seat Base Plate 2008	£117.24 £97.70
36	WE301985502 Out of stock	Seat Running Plate 2008	£89.18 £74.32
37	WE301985600 Out of stock	Seat Release Mechanism Lever 2008	£37.56 £31.30
38	WE301985700 Out of stock	Seat Mechanism Spring Retainer Plate	£33.62 £28.02
40	WE183531300 Out of stock	Seat Mechanism Locking Pin 2008	£7.18 £5.98
41	WE10901100 Out of stock	Nylon Slide Bearing ( P804008 )	£4.56 £3.80
42	WE149551900 Out of stock	Rubber Seat Spring Retainer	£10.09 £8.41
43	WE149551800 Out of stock	Tractor Seat Handle 2008	£1.88 £1.57
47	WE089422300 Out of stock	M8 X 13 X 1 Mild Steel Washer Scolour	£0.96 £0.80
48	WE52849700 Out of stock	Grommet Small	£0.96 £0.80
50	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
