Countax A2050 - From 01-01-2007 To 01-01-2008 - 14 Transmission

Name: Countax A2050 - From 01-01-2007 To 01-01-2008 - 14 Transmission
SKU: a2050_01012007_01012008_14-group
Price: 0.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax A2050 - From 01-01-2007 To 01-01-2008 - 14 Transmission

Description

Countax A Series

A2050 - Tractor

From 01-01-2007 To 01-01-2008

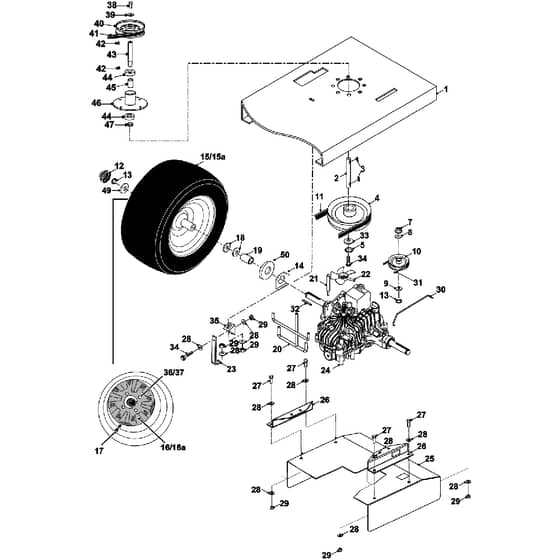

14 Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327006300 Out of stock	2050 Chassis	£1,085.72 £904.77
2	WE183013700 Out of stock	D1850 Deisel PTO Shaft	£60.53 £50.44
3	WE09823900 In stock	Key No 61	£0.84 £0.70
4	WE20870702 Out of stock	7 PTO Pulley	£61.92 £51.60
5	6408 In stock	M8 Internally Serrated Shakeproof Washer	£1.34 £1.12
7	WE049381600 Out of stock	M10 Flanged Nyloc Nut	£0.40 £0.33
8	WE089418800 Out of stock	2050 Transaxle Fan Washer	£1.92 £1.60
10	WE20904400 Out of stock	2050 Hydrostatic Box Pulley	£29.15 £24.29
11	WE228001501 Out of stock	Clutching Belt	£66.68 £55.57
12	WE14811800 Out of stock	Hub Cap (Moulded)	£6.79 £5.66
13	2012 In stock	19mm External Circlip C1A140019	£0.23 £0.19
14	WE307191901 Out of stock	K62 66 Transaxle Thrust Washer	£11.66 £9.72
15	WE198005000 Out of stock	Adk 23 Rear Wheel Assy	£202.16 £168.47
15	WE198000400 Out of stock	2050 Rear Tyre 23X10.5012Nhsty12231050 (15a)	£244.06 £203.38
16	WE198001300 Out of stock	2050 Rear Wheel Hub Hukey01 (16a)	£70.20 £58.50
17	WE14889200 Out of stock	Wheel Valve	£10.93 £9.11
18	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
19	WE183018501 Out of stock	2050 Wheel Spacer	£19.24 £16.03
20	WE327021800 Out of stock	2050 Double Belt Guide	£6.22 £5.18
21	WE313019100 Out of stock	2050 LH Taxle Steady Rod	£36.98 £30.82
22	TT1A632085100 Out of stock	2050 Hydro Cooling Fan	£21.04 £17.53
23	WE292003500 Out of stock	2050 RH Transaxle Support Bar	£19.24 £16.03
25	WE301119700 Out of stock	2050 Transaxle Deflector	£91.68 £76.40
26	WE301119500 Out of stock	2050 Transaxle Grass Deflector Bracket	£99.00 £82.50
27	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
28	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£1.36 £1.13
29	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
30	WE313010600 Out of stock	2050 Dump Valve Rod	£58.30 £48.58
32	3666 In stock	Key 1/4 X 1/4	£4.99 £4.16
33	8417 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
35	WE30137700 Out of stock	Torque Bracket	£19.73 £16.44
36	WE128000200 Out of stock	Diesel A2050 Wheel Stud	£3.56 £2.97
37	WE048000800 Out of stock	2050 Wheel Nut	£3.74 £3.12
41	WE22950100 Out of stock	Transmission Belt	£73.56 £61.30
44	WE10802200 In stock	Front Wheel Bearing	£35.70 £29.75
45	WE31334800 Out of stock	Spacer PTO Centre	£25.92 £21.60
46	WE40835800 Out of stock	PTO Bearing Housing MK3 Comp.	£263.40 £219.50
47	WE31306200 Out of stock	PTO End Spacer	£38.45 £32.04
49	WE30127800 Out of stock	Hub Cap Washer	£1.79 £1.49
50	2151 Out of stock	Washer Transaxle	£3.24 £2.70
