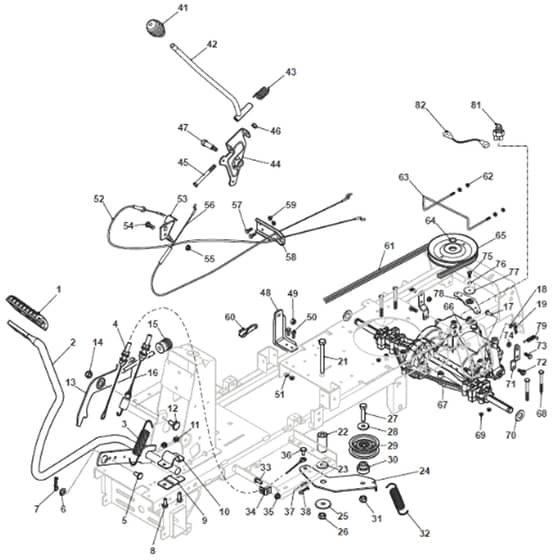

Cobra XE866B - Tractor Transmission and Gearbox Diagram

Name: Cobra XE866B - Tractor Transmission and Gearbox Diagram
SKU: xe866b_tractor_transmission_and_gearbox-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra XE866B - Tractor Transmission and Gearbox Diagram

Description

Cobra XE866B Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110391/0 Out of stock	Clamp Cover	£6.50 £5.42
2	MO384503013/0 Out of stock	Pedal	£49.85 £41.54
4	MO384004607/1 Out of stock	Tightener Cable	£21.95 £18.29
8	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
9	MO325785350/0 Out of stock	Support	£1.49 £1.24
10	MO325547231/1 Out of stock	Plate	£4.20 £3.50
11	MO112154510/0 In stock	Nut	£1.49 £1.24
12	MO122524970/3 Out of stock	Pin	£1.63 £1.36
13	MO384002097/0 Out of stock	Brake Control Rod	£14.09 £11.74
15	MO127395050/1 Out of stock	Knob	£2.84 £2.37
16	MO384004603/1 Out of stock	Wire	£29.80 £24.83
18	MO325670011/0 Out of stock	Antifriction Washer	£1.49 £1.24
21	MO112735403/0 Out of stock	Screw	£1.49 £1.24
22	MO127160065/0 Out of stock	Spacer	£6.23 £5.19
23	MO122041980/0 Out of stock	Bush	£1.49 £1.24
24	MO384307003/0 Out of stock	Tightener Lever	£13.81 £11.51
25	MO112523070/0 Out of stock	Washer	£1.49 £1.24
27	MO112691115/0 Out of stock	Screw	£1.49 £1.24
28	MO112523060/0 In stock	Washer	£1.49 £1.24
29	MO127604015/0 Out of stock	Pulley	£13.34 £11.12
30	MO127160064/0 Out of stock	Spacer	£4.87 £4.06
32	MO127430594/0 Out of stock	Spring	£5.42 £4.52
34	MO322806619/0 Out of stock	Support	£4.48 £3.73
36	MO127510120/1-1 Out of stock	Pin	£4.15 £3.46
37	MO112521350/0 In stock	Washer	£1.49 £1.24
38	MO124487997/0 Out of stock	Cotter Pin	£1.49 £1.24
41	MO125394510/0 Out of stock	Knob	£4.07 £3.39
42	MO384317097/0 Out of stock	Lever Speed Drive Control	£30.40 £25.33
43	MO125430226/0 Out of stock	Spring	£2.17 £1.81
44	MO384773579/0 Out of stock	Bracket	£17.20 £14.33
45	MO112692050/0 In stock	Screw	£1.75 £1.46
46	MO112155000/0 In stock	Nut	£1.49 £1.24
47	MO127510122/1 Out of stock	Bracket	£5.69 £4.74
48	MO327772197/0 Out of stock	Bracket	£5.82 £4.85
52	MO384004602/0 Out of stock	Wire	£19.37 £16.14
53	MO327772195/0 Out of stock	Front Bracket	£5.28 £4.40
56	MO384004609/0 Out of stock	Wire	£19.37 £16.14
57	MO112791200/1 Out of stock	Screw	£1.34 £1.12
58	MO327787093/0 Out of stock	Support	£5.69 £4.74
60	MO327110509/0 Out of stock	Inspection Door	£4.07 £3.39
61	MO135061430/0 In stock	Belt	£37.94 £31.62
62	MO112292102/0 Out of stock	Nut	£1.63 £1.36
63	MO127294011/0 Out of stock	Belt Guide	£14.76 £12.30
64	MO112608950/0 Out of stock	Seeger	£1.49 £1.24
65	MO182601509/0 Out of stock	Pulley	£73.81 £61.51
66	MO112139430/0 Out of stock	Key	£1.90 £1.58
67	MO118400981/1 Out of stock	Transmission Unit (Mecc)	£582.05 £485.04
68	MO112691800/0 Out of stock	Screw	£1.49 £1.24
69	MO112154210/0 In stock	Nut	£1.63 £1.36
70	MO125670005/2 Out of stock	Washer	£3.92 £3.27
71	MO327772189/0 Out of stock	Bracket	£3.92 £3.27
72	MO112735150/0 Out of stock	Screw	£1.63 £1.36
73	MO112792611/0 Out of stock	Screw	£1.49 £1.24
74	MO112293201/0 In stock	Nut	£1.63 £1.36
75	MO112735520/0 Out of stock	Screw	£1.49 £1.24
76	MO112540040/0 Out of stock	Washer	£1.36 £1.13
77	MO322680009/0 Out of stock	Washer	£1.75 £1.46
78	MO327543055/0 Out of stock	Plate	£5.54 £4.62
79	MO127430597/0 Out of stock	Spring	£5.02 £4.18
81	MO119410608/1 Out of stock	Neutral Switch (Mech)	£59.40 £49.50
82	MO127065069/0 Out of stock	Wire	£6.91 £5.76
