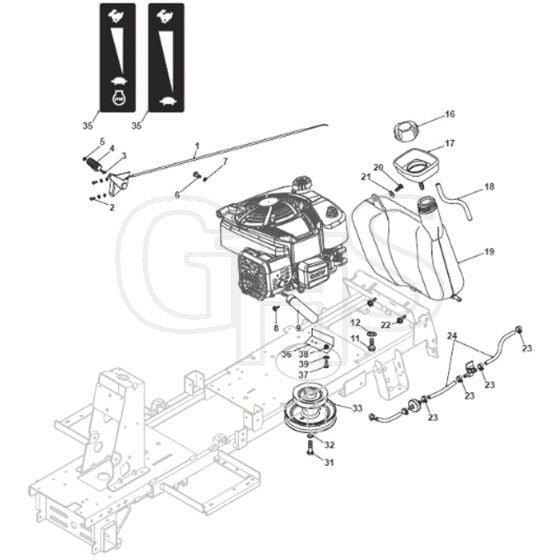

Cobra XE866B - Tractor B&S Engine Diagram

Cobra XE866B - Tractor B&S Engine Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra XE866B - Tractor B&S Engine Diagram

Cobra XE866B - Tractor B&S Engine Diagram

Description

Cobra XE866B Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		MO184000256/0 Out of stock	Obsolete		£21.41 £17.84
	2		MO125943012/0 Out of stock	Screw		£1.49 £1.24
	3		MO112726388/0 Out of stock	Screw		£1.49 £1.24
	4		MO125394501/0 Out of stock	Knob		£1.49 £1.24
	5		MO112290800/0 Out of stock	Nut		£1.49 £1.24
	6		MO112735599/0 Out of stock	Screw		£1.49 £1.24
	7		MO112540040/0 Out of stock	Washer		£1.36 £1.13
	8		MO112735110/0 Out of stock	Screw		£1.49 £1.24
	9		MO118738252/0 Out of stock	Exhaust Tube		£13.00 £10.83
	11		MO112735108/1 In stock	Screw		£2.04 £1.70
	12		MO112540070/0 Out of stock	Washer		£1.49 £1.24
	16		MO127790000/1 Out of stock	Fuel Cap		£6.30 £5.25
	17		MO327600180/0 Out of stock	Tank Protection		£3.79 £3.16
	18		MO327869054/1 Out of stock	Connecting Tube		£21.80 £18.17
	19		MO327733008/0 Out of stock	Fuel Tank		£52.82 £44.02
	20		MO112727801/0 Out of stock	Screw		£1.49 £1.24
	21		MO112523040/0 In stock	Washer		£1.49 £1.24
	22		MO125943010/0 In stock	Screw		£1.90 £1.58
	23		MO118375062/0 Out of stock	Fair Led		£1.75 £1.46

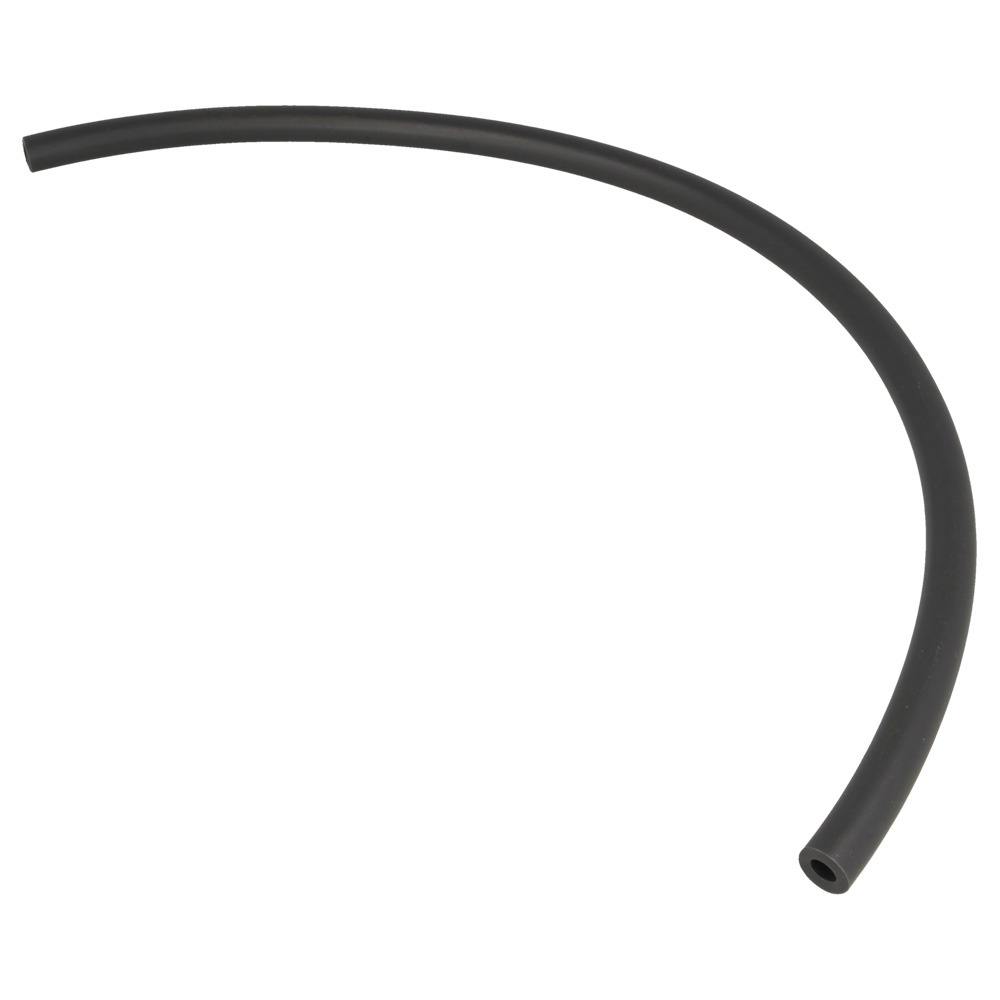

	24		MO325869035/1 Out of stock	Connecting Tube		£9.07 £7.56
	31		MO112736850/0 Out of stock	Screw		£2.30 £1.92
	31		MO112735694/0 In stock	Screw		£1.90 £1.58
	32		MO112543000/0 Out of stock	Washer		£1.49 £1.24
	33		MO384601501/1 Out of stock	Pulley		£52.82 £44.02
	33		MO384601500/1 Out of stock	Pulley		£58.25 £48.54
	35		MO114366873/0 Out of stock	Label		£2.44 £2.03
	35		MO114366874/0 Out of stock	Label		£2.30 £1.92
	36		MO327772239/0 Out of stock	Clamp		£9.14 £7.62
	37		MO112791200/1 Out of stock	Screw		£1.34 £1.12
	39		MO9694-0001-00 Out of stock	Washer		£1.49 £1.24

Description

Cobra XE866B Ride On Mower Parts Diagram
