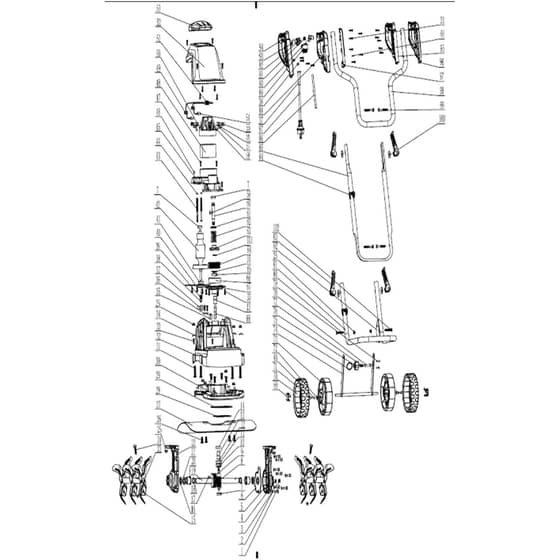

Cobra T40CE - Tiller Main Diagram

Ref. Img. Part No. Details
  1 Screw M6X18
Screw M6X18
COT40CE-1 Out of stock
Screw M6X18
£1.26 £1.05

  2 Washer 6Mm
Washer 6Mm
COT40CE-2 Out of stock
Washer 6Mm
£1.26 £1.05

  3 Screw M10X10
Screw M10X10
COT40CE-3 Out of stock
Screw M10X10
£1.26 £1.05

  4 O-Rings
O-Rings
COT40CE-4 Out of stock
O-Rings
£1.26 £1.05

  5 Right Gear Box
Right Gear Box
COT40CE-5 Out of stock
Right Gear Box
£12.12 £10.10

  6 Gear Box Case Sealing Strips
Gear Box Case Sealing Strips
COT40CE-6 Out of stock
Gear Box Case Sealing Strips
£1.26 £1.05

  7 Ball Bearing
Ball Bearing
COT40CE-7 Out of stock
Ball Bearing
£1.54 £1.28

  8 Worm Shaft
Worm Shaft
COT40CE-8 Out of stock
Worm Shaft
£9.16 £7.63

  9 Worm Wheel
Worm Wheel
COT40CE-9 Out of stock
Worm Wheel
£20.18 £16.82

  10 Sleeve
Sleeve
COT40CE-10 Out of stock
Sleeve
£3.05 £2.54

  11 Thrust Bearing
Thrust Bearing
COT40CE-11 Out of stock
Thrust Bearing
£3.05 £2.54

  12 Ball Bearing
Ball Bearing
COT40CE-12 Out of stock
Ball Bearing
£1.54 £1.28

  13 Spindle Sleeve
Spindle Sleeve
COT40CE-13 Out of stock
Spindle Sleeve
£3.25 £2.71

  14 Rubber Seal 14
Rubber Seal 14
COT40CE-14 Out of stock
Rubber Seal 14
£1.26 £1.05

  15 Blade Assy(L R)
Blade Assy(L R)
COT40CE-15 Out of stock
Blade Assy(L R)
£26.17 £21.81

  16 Rubber Seal Guard
Rubber Seal Guard
COT40CE-16 Out of stock
Rubber Seal Guard
£1.54 £1.28

  17 Flat Key 4X4X16
Flat Key 4X4X16
COT40CE-17 Out of stock
Flat Key 4X4X16
£1.26 £1.05

  18 Washer 19
Washer 19
COT40CE-18 Out of stock
Washer 19
£1.26 £1.05

  19 Worm Wheel Shaft
Worm Wheel Shaft
COT40CE-19 Out of stock
Worm Wheel Shaft
£8.15 £6.79

  20 Oil Bearing
Oil Bearing
COT40CE-20 Out of stock
Oil Bearing
£3.05 £2.54

  21 Rubber Seal 19
Rubber Seal 19
COT40CE-21 Out of stock
Rubber Seal 19
£1.26 £1.05

  22 Left Gear Box
Left Gear Box
COT40CE-22 Out of stock
Left Gear Box
£10.19 £8.49

  23 Nut M8
Nut M8
COT40CE-23 Out of stock
Nut M8
£1.26 £1.05

  24 Srew M8X40
Srew M8X40
COT40CE-24 Out of stock
Srew M8X40
£1.26 £1.05

  39 Pinion
Pinion
COT40CE-39 Out of stock
Pinion
£1.54 £1.28

  40 Rotor Locating Plate
Rotor Locating Plate
COT40CE-40 Out of stock
Rotor Locating Plate
£3.58 £2.98

  41 Bearing 6000
Bearing 6000
COT40CE-41 Out of stock
Bearing 6000
£2.04 £1.70

  42 Rotor Assy
Rotor Assy
COT40CE-42 Out of stock
Rotor Assy
£20.60 £17.17

  45 Motor Support Base
Motor Support Base
COT40CE-45 Out of stock
Motor Support Base
£7.12 £5.93

  48 Stator Assy
Stator Assy
COT40CE-48 Out of stock
Stator Assy
£18.17 £15.14

  49 Inductor 1
Inductor 1
COT40CE-49 Out of stock
Inductor 1
£2.41 £2.01

  50 Motor Support Base
Motor Support Base
COT40CE-50 Out of stock
Motor Support Base
£3.05 £2.54

  51 Inductor 2
Inductor 2
COT40CE-51 Out of stock
Inductor 2
£2.41 £2.01

  52 Housing
Housing
COT40CE-52 Out of stock
Housing
£7.12 £5.93

  53 Housing Cover
Housing Cover
COT40CE-53 Out of stock
Housing Cover
£3.58 £2.98

  54 Carbon Brush Insert
Carbon Brush Insert
COT40CE-54 Out of stock
Carbon Brush Insert
£1.26 £1.05

  55 Carbon Brush
Carbon Brush
COT40CE-55 Out of stock
Carbon Brush
£2.92 £2.43

  57 Carbon Brush Frame
Carbon Brush Frame
COT40CE-57 Out of stock
Carbon Brush Frame
£1.82 £1.52

  59 Steel Ball
Steel Ball
COT40CE-59 Out of stock
Steel Ball
£1.26 £1.05

  60 Shaft
Shaft
COT40CE-60 Out of stock
Shaft
£3.58 £2.98

  61 Sleeve
Sleeve
COT40CE-61 Out of stock
Sleeve
£1.26 £1.05

  62 Spring
Spring
COT40CE-62 Out of stock
Spring
£1.26 £1.05

  63 Spring Holder
Spring Holder
COT40CE-63 Out of stock
Spring Holder
£3.86 £3.22

  64 Belt Roller
Belt Roller
COT40CE-64 Out of stock
Belt Roller
£3.25 £2.71

  65 Ball Bearing
Ball Bearing
COT40CE-65 Out of stock
Ball Bearing
£2.04 £1.70

  66 Belt
Belt
COT40CE-66 Out of stock
Belt
£6.94 £5.78

  67 Support Base
Support Base
COT40CE-67 Out of stock
Support Base
£1.62 £1.35

  68 Shaft
Shaft
COT40CE-68 Out of stock
Shaft
£2.44 £2.03

  69 Wheel Cover
Wheel Cover
COT40CE-69 Out of stock
Wheel Cover
£1.26 £1.05

  70 Wheel Sleeve
Wheel Sleeve
COT40CE-70 Out of stock
Wheel Sleeve
£2.75 £2.29

  71 Screw M5
Screw M5
COT40CE-71 Out of stock
Screw M5
£1.26 £1.05

  72 Washer
Washer
COT40CE-72 Out of stock
Washer
£1.26 £1.05

  73 Wheel
Wheel
COT40CE-73 Out of stock
Wheel
£3.97 £3.31

  74 Wheel Bracket
Wheel Bracket
COT40CE-74 Out of stock
Wheel Bracket
£5.09 £4.24

  75 Pull-Tab
Pull-Tab
COT40CE-75 Out of stock
Pull-Tab
£1.26 £1.05

  76 Stents
Stents
COT40CE-76 Out of stock
Stents
£1.26 £1.05

  77 Regulating Spring
Regulating Spring
COT40CE-77 Out of stock
Regulating Spring
£1.26 £1.05

  78 Bolt
Bolt
COT40CE-78 Out of stock
Bolt
£1.54 £1.28

  79 Cross Screw
Cross Screw
COT40CE-79 Out of stock
Cross Screw
£1.26 £1.05

  80 Coach Screw M6X32
Coach Screw M6X32
COT40CE-80 Out of stock
Coach Screw M6X32
£1.26 £1.05

  81 Hand Bar 1
Hand Bar 1
COT40CE-81 Out of stock
Hand Bar 1
£7.27 £6.06

  82 Wheel Adjustment Plate
Wheel Adjustment Plate
COT40CE-82 Out of stock
Wheel Adjustment Plate
£2.04 £1.70

  83 Fast Loading Wrench
Fast Loading Wrench
COT40CE-83 Out of stock
Fast Loading Wrench
£1.49 £1.24

  84 Cable Clip
Cable Clip
COT40CE-84 Out of stock
Cable Clip
£1.26 £1.05

  85 Hand Bar
Hand Bar
COT40CE-85 Out of stock
Hand Bar
£7.27 £6.06

  86 Cable
Cable
COT40CE-86 Out of stock
Cable
£23.27 £19.39

  87 Plug
Plug
COT40CE-87 Out of stock
Plug
£3.25 £2.71

  88 Main Handle Right
Main Handle Right
COT40CE-88 Out of stock
Main Handle Right
£1.79 £1.49

  89 Switch
Switch
COT40CE-89 Out of stock
Switch
£7.27 £6.06

  90 Switch Box Button
Switch Box Button
COT40CE-90 Out of stock
Switch Box Button
£1.26 £1.05

  91 Switch Box Button Spring
Switch Box Button Spring
COT40CE-91 Out of stock
Switch Box Button Spring
£1.26 £1.05

  92 Switch Trigger
Switch Trigger
COT40CE-92 Out of stock
Switch Trigger
£1.26 £1.05

  93 Switch Trigger Spring
Switch Trigger Spring
COT40CE-93 Out of stock
Switch Trigger Spring
£1.26 £1.05

  94 Main Handle Left
Main Handle Left
COT40CE-94 Out of stock
Main Handle Left
£1.45 £1.21

  95 Auxiliary Handle Right
Auxiliary Handle Right
COT40CE-95 Out of stock
Auxiliary Handle Right
£1.45 £1.21

  96 Auxiliary Handle Left
Auxiliary Handle Left
COT40CE-96 Out of stock
Auxiliary Handle Left
£1.45 £1.21

  97 Main Handle Clamp
Main Handle Clamp
COT40CE-97 Out of stock
Main Handle Clamp
£1.26 £1.05

  98 Hand Bar 3
Hand Bar 3
COT40CE-98 Out of stock
Hand Bar 3
£7.27 £6.06

  99 Screw M6X57
Screw M6X57
COT40CE-99 Out of stock
Screw M6X57
£1.26 £1.05

  100 Fast Loading Wrench Gasket
Fast Loading Wrench Gasket
COT40CE-100 Out of stock
Fast Loading Wrench Gasket
£1.26 £1.05

  101 Gasket 135
Gasket 135
COT40CE-101 Out of stock
Gasket 135
£1.26 £1.05

  102 Coach Screw M6X35
Coach Screw M6X35
COT40CE-102 Out of stock
Coach Screw M6X35
£1.26 £1.05


Description

Cobra T40CE Tiller Parts Diagram
