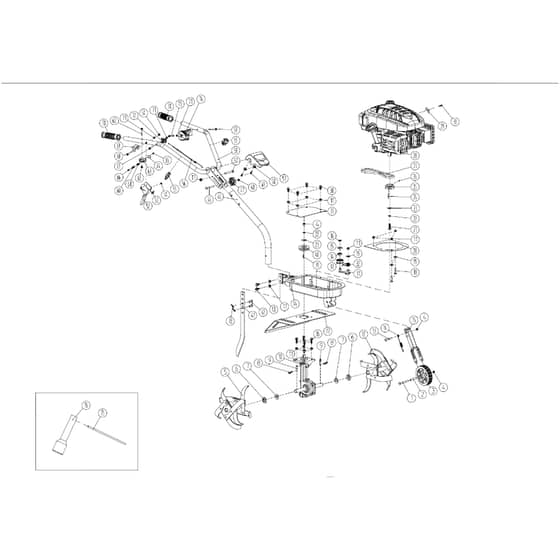

Cobra T40B - Tiller Main Diagram

Ref. Img. Part No. Details
  1 Bolt
Bolt
CO26800614601 Out of stock
Bolt
£2.52 £2.10

  2 Wheel Axis Sleeve
Wheel Axis Sleeve
CO26300198101 Out of stock
Wheel Axis Sleeve
£2.52 £2.10

  3 Wheel Ass'Y
Wheel Ass'Y
CO25400203501 Out of stock
Wheel Ass'Y
£7.02 £5.85

  4 Nut
Nut
CO26800501201 Out of stock
Nut
£1.26 £1.05

  5 Right Blade Ass'Y
Right Blade Ass'Y
CO23600167601 Out of stock
Right Blade Ass'Y
£44.74 £37.28

  6 Dustproof Cover
Dustproof Cover
CO26300266901 Out of stock
Dustproof Cover
£2.52 £2.10

  7 Washer
Washer
CO25600300301 Out of stock
Washer
£2.52 £2.10

  8 Pin
Pin
CO26300230101 Out of stock
Pin
£2.52 £2.10

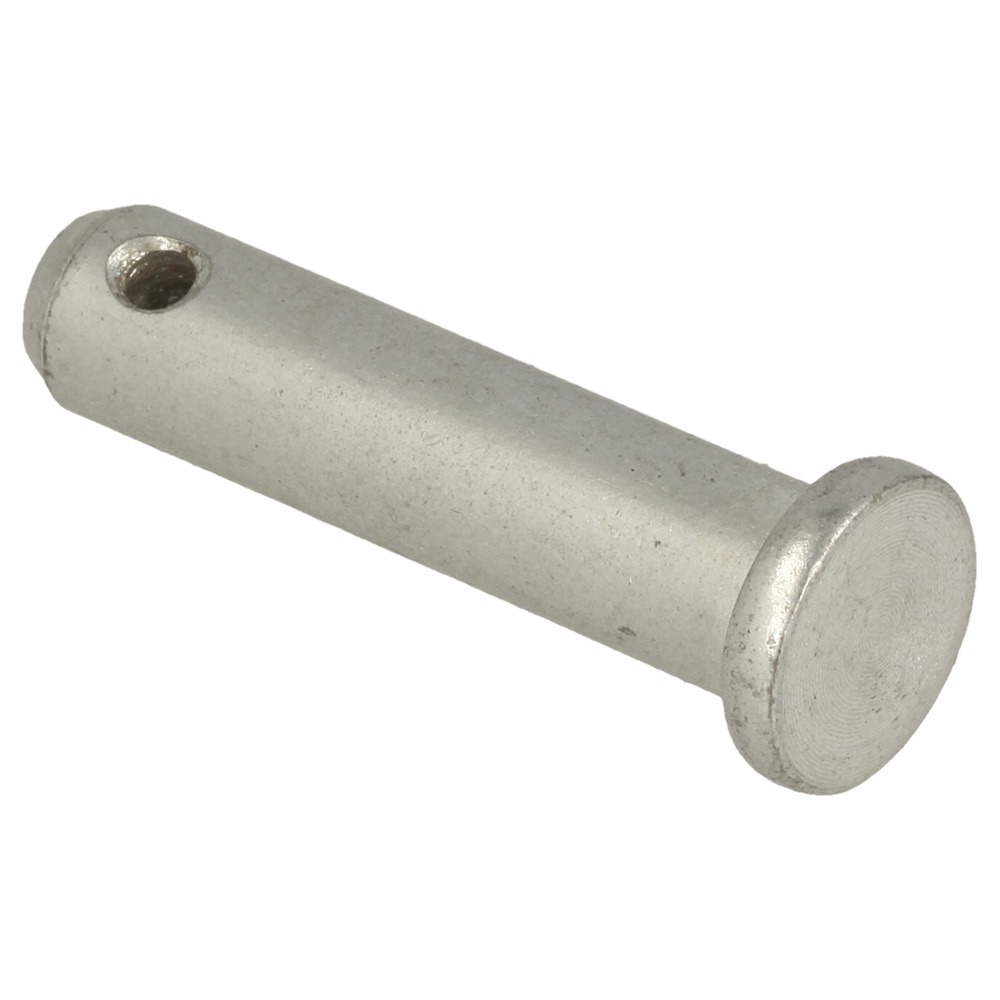

  9 Bearing Pin
Bearing Pin
CO26200105901 Out of stock
Bearing Pin
£2.52 £2.10

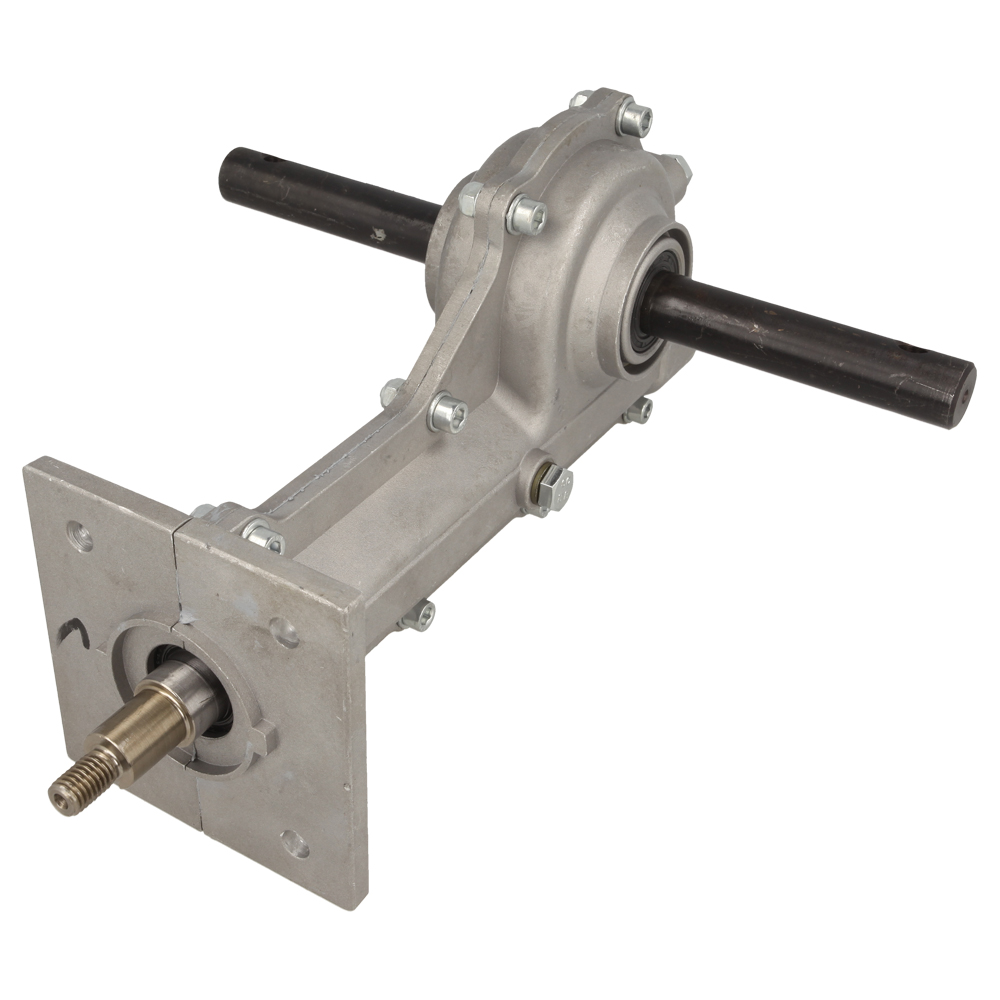

  10 Gearbox Ass'Y
Gearbox Ass'Y
CO23050202301 Out of stock
Gearbox Ass'Y
£103.80 £86.50

  11 Nut
Nut
CO26800502801 Out of stock
Nut
£1.26 £1.05

  12 Left Blade Ass'Y
Left Blade Ass'Y
CO23600167501 Out of stock
Left Blade Ass'Y
£44.74 £37.28

  13 Bolt
Bolt
CO26800614701 Out of stock
Bolt
£2.52 £2.10

  14 Spring
Spring
CO26801118501 Out of stock
Spring
£2.52 £2.10

  15 Front Wheel Support Assy
Front Wheel Support Assy
CO23600165401 Out of stock
Front Wheel Support Assy
£12.43 £10.36

  16 Bolt
Bolt
CO26800614901 Out of stock
Bolt
£2.52 £2.10

  17 Board
Board
CO23600167301 Out of stock
Board
£15.04 £12.53

  18 Bolt
Bolt
CO26800602501 Out of stock
Bolt
£2.52 £2.10

  19 Washer
Washer
CO26800700201 Out of stock
Washer
£2.52 £2.10

  20 Board
Board
CO23600165901 Out of stock
Board
£5.57 £4.64

  21 Blade Fixing Bolt
Blade Fixing Bolt
CO26800606501 Out of stock
Blade Fixing Bolt
£2.52 £2.10

  22 Spring Washer
Spring Washer
CO26800800101 Out of stock
Spring Washer
£2.52 £2.10

  23 Washer
Washer
CO26800700101 Out of stock
Washer
£2.52 £2.10

  24 Flat Key
Flat Key
CO26809005201 Out of stock
Flat Key
£2.52 £2.10

  25 Driving Wheel
Driving Wheel
CO26300402201 Out of stock
Driving Wheel
£9.43 £7.86

  26 Screw
Screw
CO26800300502 Out of stock
Screw
£1.26 £1.05

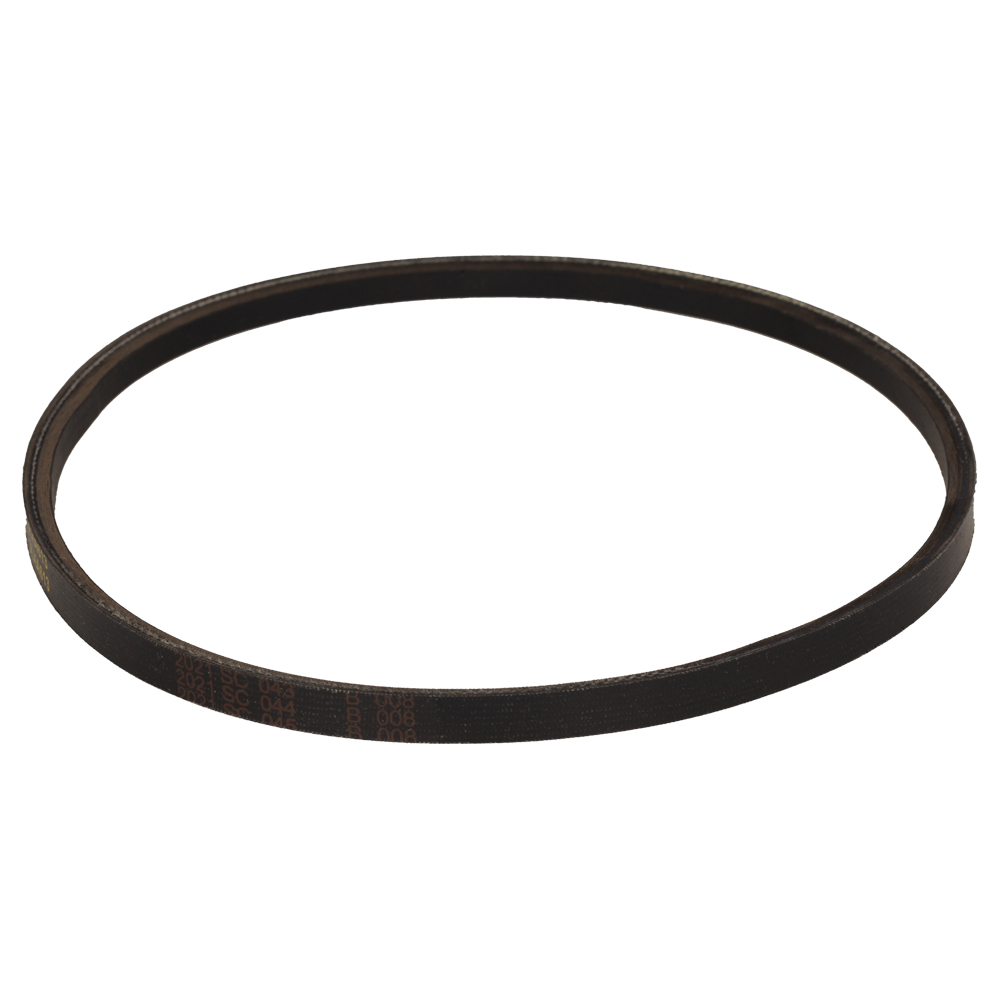

  27 Triangle Belt
Triangle Belt
CO25100204801 Out of stock
Triangle Belt
£21.02 £17.52

  29 Press Plate
Press Plate
CO26300108301 Out of stock
Press Plate
£2.52 £2.10

  30 Bolt
Bolt
CO26800301201 Out of stock
Bolt
£2.52 £2.10

  31 Power Lock
Power Lock
CO26300192601 Out of stock
Power Lock
£4.98 £4.15

  32 Spring
Spring
CO26801118601 Out of stock
Spring
£2.52 £2.10

  33 Change Speed Wheel
Change Speed Wheel
CO26400105601 Out of stock
Change Speed Wheel
£6.91 £5.76

  34 Bearing
Bearing
CO26800401501 Out of stock
Bearing
£2.66 £2.22

  35 Washer
Washer
CO26800902101 Out of stock
Washer
£2.52 £2.10

  36 Washer
Washer
CO26800903201 Out of stock
Washer
£2.52 £2.10

  37 Rear Board Cover
Rear Board Cover
CO23600166901 Out of stock
Rear Board Cover
£5.57 £4.64

  38 Bolt
Bolt
CO26800606401 Out of stock
Bolt
£2.52 £2.10

  39 Flat Key
Flat Key
CO26809005601 Out of stock
Flat Key
£2.52 £2.10

  40 Driven Pulley
Driven Pulley
CO26300402501 Out of stock
Driven Pulley
£9.43 £7.86

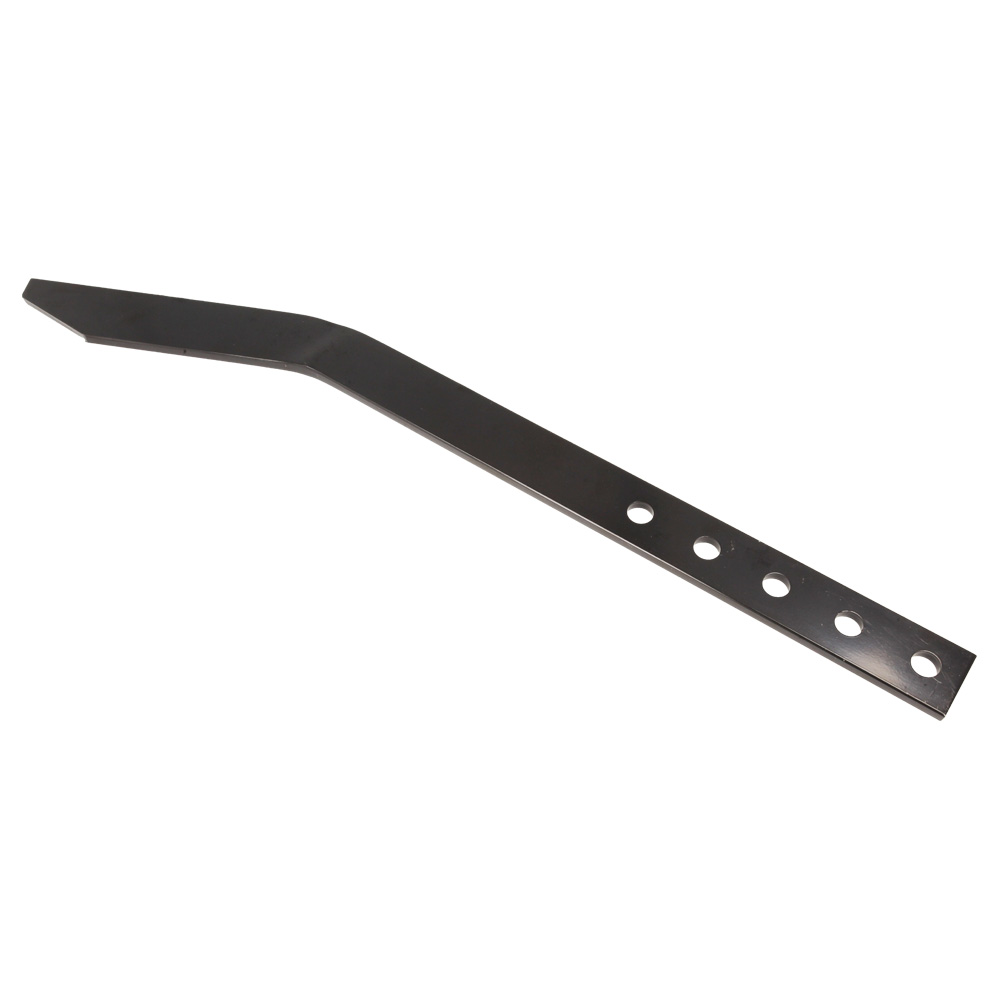

  41 Pole
Pole
CO26300194001 Out of stock
Pole
£8.54 £7.12

  42 Bearing Pin
Bearing Pin
CO26200105801 Out of stock
Bearing Pin
£2.52 £2.10

  43 Bolt
Bolt
CO26800615001 Out of stock
Bolt
£2.52 £2.10

  44 Deck Ass'Y
Deck Ass'Y
CO23600166801 Out of stock
Deck Ass'Y
£44.77 £37.31

  45 Bolt
Bolt
CO26800615601 Out of stock
Bolt
£2.52 £2.10

  46 Handle Plank Ass'Y
Handle Plank Ass'Y
CO23600167001 Out of stock
Handle Plank Ass'Y
£8.90 £7.42

  47 Lower Handle Knob
Lower Handle Knob
CO25236500101 Out of stock
Lower Handle Knob
£2.52 £2.10

  48 Nut
Nut
CO26800502301 Out of stock
Nut
£1.26 £1.05

  49 Screw
Screw
CO26800104601 Out of stock
Screw
£1.26 £1.05

  50 Washer
Washer
CO25239100101 Out of stock
Washer
£2.52 £2.10

  51 Panel
Panel
CO25280100101 Out of stock
Panel
£5.26 £4.38

  52 Grip
Grip
CO23600166301 Out of stock
Grip
£4.43 £3.69

  53 Mat
Mat
CO25280700101 Out of stock
Mat
£2.52 £2.10

  54 Nut
Nut
CO26800506001 Out of stock
Nut
£1.26 £1.05

  55 Wire Clamp
Wire Clamp
CO25281000101 Out of stock
Wire Clamp
£2.52 £2.10

  56 Driving Cord Ass'Y
Driving Cord Ass'Y
CO29100123401 Out of stock
Driving Cord Ass'Y
£6.78 £5.65

  57 Bolt
Bolt
CO26800601401 Out of stock
Bolt
£2.52 £2.10

  58 Handle Ass'Y
Handle Ass'Y
CO23600167101 Out of stock
Handle Ass'Y
£34.99 £29.16

  59 Bolt
Bolt
CO26800608201 Out of stock
Bolt
£2.52 £2.10

  60 Pole
Pole
CO26300199001 Out of stock
Pole
£2.52 £2.10

  61 Spring
Spring
CO26801118901 Out of stock
Spring
£2.52 £2.10

  62 Nut
Nut
CO26800500501 Out of stock
Nut
£2.52 £2.10

  63 Stopper
Stopper
CO25280500101 Out of stock
Stopper
£2.52 £2.10

  64 Stop Board
Stop Board
CO26300199101 Out of stock
Stop Board
£2.52 £2.10

  65 Screw
Screw
CO26800310001 Out of stock
Screw
£1.26 £1.05

  66 Button
Button
CO25280600101 Out of stock
Button
£2.52 £2.10

  67 Bolt
Bolt
CO26800612101 Out of stock
Bolt
£2.52 £2.10

  68 Bolt
Bolt
CO26800616201 Out of stock
Bolt
£2.52 £2.10

  69 Grip Block
Grip Block
CO26300246101 Out of stock
Grip Block
£2.52 £2.10

  70 Handle Cover
Handle Cover
CO25281300101 Out of stock
Handle Cover
£5.65 £4.71

  71 Flat Washer
Flat Washer
CO26800700801 Out of stock
Flat Washer
£2.52 £2.10

  72 Cable Fixed Block
Cable Fixed Block
CO25233600101 Out of stock
Cable Fixed Block
£2.52 £2.10

  73 Nut
Nut
CO26800501602 Out of stock
Nut
£2.52 £2.10

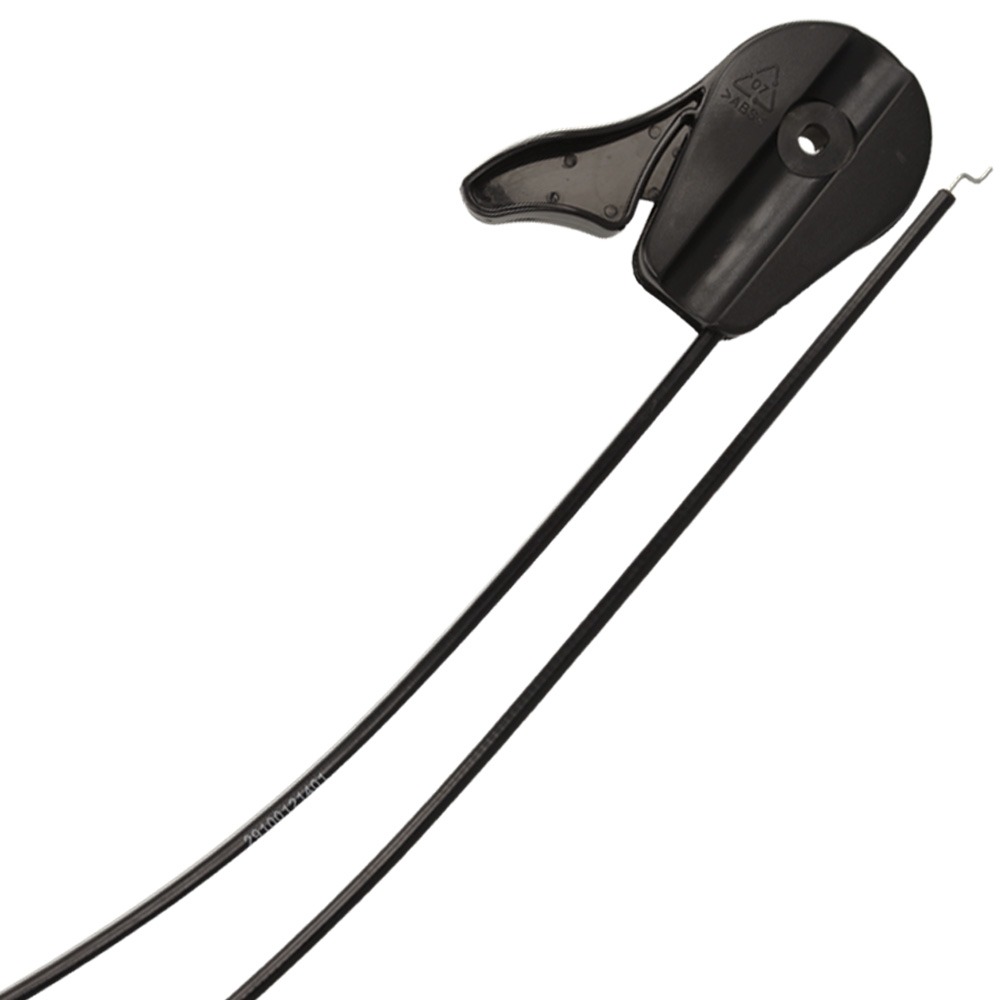

  74 Choke Handle Ass'Y
Choke Handle Ass'Y
CO29100121401 Out of stock
Choke Handle Ass'Y
£7.54 £6.28

  75 Wrench
Wrench
CO26300107901 Out of stock
Wrench
£2.52 £2.10

  76 Wrench Rod
Wrench Rod
CO26300161201 Out of stock
Wrench Rod
£2.52 £2.10
