Cobra RM46SPC - 18" Roller Self Propelled Revised June 2020 Main Diagram

Name: Cobra RM46SPC - 18" Roller Self Propelled Revised June 2020 Main Diagram
SKU: rm46spc_18_roller_self_propelled_revised_june_2020_main-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

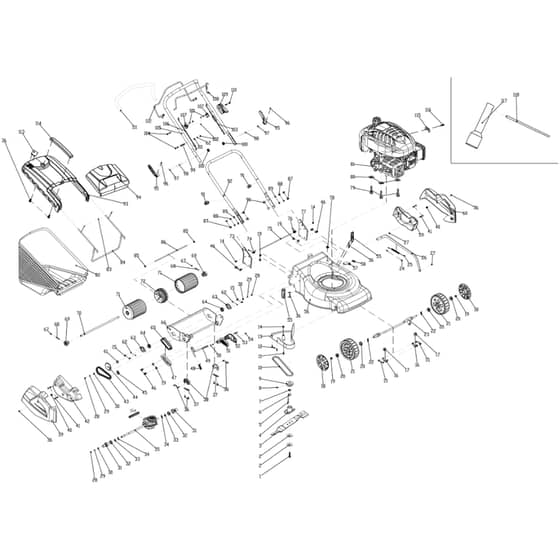

Cobra RM46SPC - 18" Roller Self Propelled Revised June 2020 Main Diagram

Description

Cobra RM46SPC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800606201 Out of stock	Blade Locking Bolt	£2.40 £2.00
2	CO26300107302 Out of stock	Dishing Washer	£2.52 £2.10
2	CO2105200245A Out of stock	Pressing Plate Of Blade	£2.52 £2.10
3	CO21052003402000A Out of stock	Blade	£18.88 £15.73
3	CO26300239301 In stock	Blade	£18.88 £15.73
4	CO2105200251A Out of stock	Blade Support	£7.54 £6.28
4	CO26300152502 Out of stock	Blade Support	£7.54 £6.28
5	CO26809000201 Out of stock	Flat Pin	£2.52 £2.10
6	CO25231800101 Out of stock	Blade Support Bush	£2.52 £2.10
7	CO26900209301 Out of stock	Blade Support Bush	£2.52 £2.10
7	CO2105400024A Out of stock	Bushing Of Blade Support	£2.52 £2.10
8	CO26800300502 Out of stock	Locking Screw	£1.26 £1.05
9	CO26300403401 Out of stock	Driving Belt Wheel	£5.71 £4.76
10	CO25100127301 In stock	Triangle Belt	£8.80 £7.33
11	CO26800202001 Out of stock	Tooth Screw	£1.26 £1.05
12	CO26800103701 In stock	Self-Driving Screw	£1.26 £1.05
13	CO25205200101 Out of stock	Belt Protecting Cover	£6.83 £5.69
14	CO26800502401 Out of stock	Locking Nut	£1.26 £1.05
15	CO26800201901 Out of stock	Tooth Screw	£1.26 £1.05
16	CO26300134202 Out of stock	Pressing Plate For Axle Fixed	£2.52 £2.10
17	CO25202600101 Out of stock	Front Wheel Axis Fixing Ring	£2.52 £2.10
18	CO23600105002 In stock	Wheel Cover-1	£2.52 £2.10
19	CO26800502801 Out of stock	Hexagon Flange Locking Bolt	£1.26 £1.05
20	CO26800401601 In stock	Bearing	£4.20 £3.50
21	CO25400200105 In stock	Wheel Assy	£11.95 £9.96
22	CO26800706202 Out of stock	Wave Washer	£2.52 £2.10
23	CO23600402601 In stock	Front Wheel Axis Assy	£16.99 £14.16
24	CO29000300101 Out of stock	Heat Shrink Tubing	£2.52 £2.10
25	CO26801124501 Out of stock	Connecting Rod Tension Spring	£3.89 £3.24
26	CO23600402901 Out of stock	Connecting Rod	£5.76 £4.80
27	CO26800500501 Out of stock	Hexagon Flange Locking Bolt	£2.52 £2.10
28	CO26800201002 Out of stock	Tooth Screw	£1.26 £1.05
29	CO26800800402 Out of stock	Spring Washer	£2.52 £2.10
30	CO26800706301 Out of stock	Flat Washer	£1.26 £1.05
31	CO26900211301 Out of stock	Bearing Sheath	£3.11 £2.59
32	CO26800402301 In stock	Bearing	£2.77 £2.31
33	CO26800705102 Out of stock	Flat Washer	£2.52 £2.10
34	CO26300230101 Out of stock	B Pin	£2.52 £2.10
35	CO2100200173 Out of stock	35A Gearbox Spring	£2.52 £2.10
35	CO23050205001 Out of stock	Variable Gear Box Assy	£60.60 £50.50
36	CO26800104601 Out of stock	Self-Driving Screw	£1.26 £1.05
37	CO26300282801 Out of stock	Pressing Board	£2.52 £2.10
38	CO25320300101 Out of stock	Axle Pressure	£2.52 £2.10
39	CO25319600201 Out of stock	Left Rear Wheel Decorative Panel	£6.64 £5.53
40	CO25320500101 Out of stock	Fixed Block	£2.52 £2.10
41	CO26800612201 Out of stock	Bolt	£2.52 £2.10
42	CO25319800101 Out of stock	Right Rear Wheel Protecting Cover	£5.44 £4.53
43	CO26809010001 In stock	Link Chain	£10.50 £8.75
44	CO26300283201 Out of stock	Large Chain Wheel	£7.86 £6.55
45	CO26300283101 Out of stock	Small Chain Wheel	£6.05 £5.04
46	CO26800606401 Out of stock	Bolt	£2.52 £2.10
47	CO23600403101 Out of stock	Gearing Board	£3.11 £2.59
48	CO26801124401 Out of stock	Torsional Spring	£2.52 £2.10
49	CO23600403001 Out of stock	Height Adjustment Handle	£5.26 £4.38
50	CO26800500201 Out of stock	Locking Nut	£2.52 £2.10
51	CO25400107503 Out of stock	7 Shape Handle_Left Shell	£2.52 £2.10
52	CO25400107603 Out of stock	7 Shape Handle_Right Shell	£2.52 £2.10
53	CO26800200301 Out of stock	Tooth Screw	£2.52 £2.10
54	CO26800106202 Out of stock	Self-Driving Screw	£2.52 £2.10
55	CO25320600101 Out of stock	Clip	£2.52 £2.10
57	CO26300257701 Out of stock	Positioned Board	£2.52 £2.10
58	CO26800611201 Out of stock	Bolt	£2.52 £2.10
59	CO25319700101 Out of stock	Left Rear Wheel Protecting Cover	£4.81 £4.01
60	CO25319500201 Out of stock	Left Rear Wheel Decorative Panel	£6.64 £5.53
61	CO26300285001 Out of stock	Drivepipe	£2.52 £2.10
62	CO26800800303 Out of stock	Spring Washer	£2.52 £2.10
63	CO26300283801 Out of stock	Bearing Catch	£2.52 £2.10
64	CO26800407301 Out of stock	Bearing	£3.41 £2.84
65	CO23100109101 Out of stock	Gear Decorative Board	£2.52 £2.10
66	CO23600402701 Out of stock	Rear Wheel Axis Assy	£42.90 £35.75
67	CO26800501101 Out of stock	Locking Nut	£1.26 £1.05
68	CO26800303601 Out of stock	Screw	£1.26 £1.05
69	CO25320200101 Out of stock	Connecting Knob	£2.52 £2.10
70	CO26300282901 Out of stock	Connecting Rod	£10.30 £8.58
71	CO25320000101 Out of stock	Idler Wheel	£12.56 £10.47
72	CO25320100101 Out of stock	Connecting Wheel	£3.89 £3.24
73	CO23601016701 Out of stock	Right Handle Bracket	£5.10 £4.25
74	CO26801112701 Out of stock	Spring Of Right Knob	£2.52 £2.10
75	CO26300165601 Out of stock	Long Rod	£2.52 £2.10
76	CO26801112601 Out of stock	Spring Of Left Knob	£2.52 £2.10
77	CO23601016801 Out of stock	Left Handle Blacket	£5.10 £4.25
78	CO25217800104 Out of stock	Cord Protceting Sheath	£2.52 £2.10
79	CO26800601701 Out of stock	Hexagon Bolt	£2.52 £2.10
80	CO26300210602 Out of stock	Square Washer	£2.52 £2.10
81	CO60400101304 Out of stock	Engine Assy	£182.88 £152.40
82	CO25100165502 Out of stock	Grass Catcher	£31.92 £26.60
83	CO26800103202 Out of stock	Self-Driving Screw	£1.26 £1.05
84	CO26300283002 Out of stock	Grass Catcher Bracket	£17.40 £14.50
85	CO26800506001 Out of stock	Nut	£1.26 £1.05
86	CO26300289601 Out of stock	Long Rod	£2.52 £2.10
87	CO26800501502 Out of stock	Lid Nut	£1.26 £1.05
88	CO26800800202 Out of stock	Spring Washer	£2.52 £2.10
89	CO26800700701 Out of stock	Flate Washer	£2.52 £2.10
90	CO26800601903 Out of stock	Bolt	£2.52 £2.10
91	CO25261100101 Out of stock	Wire Clamp	£2.52 £2.10
92	CO23600173601 Out of stock	Lower Handle Pole	£13.98 £11.65
93	CO25275300101 Out of stock	Grass Bracket Cover	£19.32 £16.10
94	CO23000487501 Out of stock	Rear Cover Assy	£9.91 £8.26
95	CO25236401501 Out of stock	Locking Handle	£2.52 £2.10
96	CO26809004801 Out of stock	Column Pin	£2.52 £2.10
97	CO26300142002 Out of stock	Pressing Plate	£2.52 £2.10
98	CO26300124501 Out of stock	Locking Handle Bolt	£2.52 £2.10
99	CO26300168401 Out of stock	Rope Guide	£2.52 £2.10
100	CO26800500801 Out of stock	Locking Nut	£1.26 £1.05
101	CO26800700801 Out of stock	Flate Washer	£2.52 £2.10
102	CO26800501602 Out of stock	Lid Nut	£2.52 £2.10
103	CO29100134001 In stock	Driving Cord Assy	£10.78 £8.98
104	CO26800607701 Out of stock	Bolt	£2.52 £2.10
105	CO23600163201 Out of stock	Upper Handle Pole	£24.30 £20.25
106	CO29100117401 Out of stock	Flameout Cord Assy	£10.06 £8.38
107	CO25233600101 Out of stock	Cord Fixing Board	£2.52 £2.10
108	CO23601016901 Out of stock	Flameout Pulling Pole	£5.52 £4.60
109	CO29100119602 Out of stock	Choke Handle Assy	£11.32 £9.43
110	CO26800603601 Out of stock	Bolt	£2.52 £2.10
111	CO25600101702 Out of stock	Handle Sheath	£4.60 £3.83
112	CO23600135201 Out of stock	Choke Pulling Pole	£5.65 £4.71
113	CO25275600501 Out of stock	Wind Window Board	£2.52 £2.10
114	CO25275500201 Out of stock	Grass Catcher Handle	£2.52 £2.10
115	CO26300108301 Out of stock	Pressing Board Of Cord	£2.52 £2.10
116	CO26800301201 Out of stock	Bolt	£2.52 £2.10
117	CO26300107801 Out of stock	Wrench	£2.52 £2.10
118	CO26300107901 Out of stock	Wrench Rod	£2.52 £2.10
