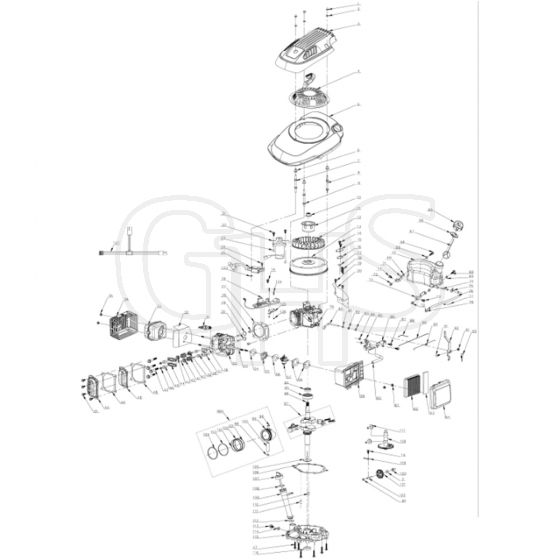

Cobra MX534SPCE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COB2002B00000 Out of stock	Screw	£2.52 £2.10
2	COB5027B00000 Out of stock	Engine Cover	£2.52 £2.10
3	COY3A10000055 Out of stock	Nut M6	£9.66 £8.05
4	COY2A20000000 Out of stock	Recoil Start Assy	£23.50 £19.58
5	COY3A3NA00010 Out of stock	Blower Housing	£17.02 £14.18
6	COY2A40000000 Out of stock	Bush	£2.52 £2.10
7	COY3AB0000000 Out of stock	Bolt I	£2.52 £2.10
8	COY3A80000000 Out of stock	Bolt Ii	£2.52 £2.10
9	COY3A90000000 Out of stock	Bolt Iii	£2.52 £2.10
10	COB2015W00000 Out of stock	Nut M14X15	£2.52 £2.10
11	COY3A50000000 Out of stock	Start-Up Hub	£4.48 £3.73
12	COY3A60000000 Out of stock	Fan	£3.49 £2.91
13	COY3B12000000 Out of stock	Flywheel	£40.85 £34.04
14	COB1058W06012 Out of stock	Bolt M6X12	£2.52 £2.10
15	COY3250000000 Out of stock	Respirator Cover Plate	£2.52 £2.10
16	COY3240000000 Out of stock	Gasket Of Respirator Cover	£2.52 £2.10
17	COY3230000000 Out of stock	Valve Element	£2.52 £2.10
18	COY2220000000 Out of stock	Lubricate Filtering Net	£2.52 £2.10
19	COB1057W06010 Out of stock	Bolt M6X10	£2.52 £2.10
20	COY3AA1000000 Out of stock	Plate	£2.41 £2.01
21	COB1067W06035 Out of stock	Bolt M6X35	£2.52 £2.10
22	COY5B40000000 Out of stock	Start Motor	£51.24 £42.70
23	COY3B80000000 Out of stock	Locating Pin	£2.52 £2.10
24	COB1064W06025 Out of stock	Bolt	£2.52 £2.10
25	COY2B20000000 Out of stock	Ignition Assy	£19.07 £15.89
26	COY37N0000000 Out of stock	Motor Brake Assy	£8.48 £7.07
27	COY3120000000 Out of stock	Gasket Of Cylinder Head	£5.23 £4.36
28	COY2260000000 Out of stock	Locating Pin	£2.52 £2.10
29	COY3520000000 Out of stock	Inlet Valve	£5.52 £4.60
30	COY3530000000 Out of stock	Outlet Valve	£5.52 £4.60
31	2136 In stock	Spark Plug	£3.02 £2.52
32	COY2930000000 Out of stock	Gasket Of Muffler	£3.72 £3.10
33	COY3910000000 Out of stock	Muffler Assy	£14.36 £11.97
34	COY3920000000 Out of stock	Muffler Cover Assy	£10.06 £8.38
35	COB2016W00000 Out of stock	Locknut M6	£1.26 £1.05
36	COY55C0000000 Out of stock	Handspike Assy	£1.26 £1.05
37	COY35E0000000 Out of stock	Guide Board Of Handspike	£2.52 £2.10
38	COY2580000000 Out of stock	Rocker Support Bolt Of Valve	£2.52 £2.10
39	COBC011H00000 Out of stock	Oil Seal Of Valve	£2.52 £2.10
40	COY3540000000 Out of stock	Spring Of Valve	£2.52 £2.10
41	COY2560000000 Out of stock	Spring Coil Of Outlet Valve	£2.52 £2.10
42	COY25D0000000 Out of stock	Upper Cap Of Outlet Valve	£2.52 £2.10
43	COY2550000000 Out of stock	Spring Coil Of Outlet Valve	£2.52 £2.10
44	COY2570000000 Out of stock	Rocker Of Valve	£2.52 £2.10
45	COY2590000000 Out of stock	Adjust Nut Of Valve	£2.52 £2.10
46	COY25A0000000 Out of stock	Combined Nut	£2.52 £2.10
47	COB1080W08050 Out of stock	Bolt M8X50	£2.52 £2.10
48	COY2130000000 Out of stock	Gasket Of Cylinder Head Cover	£2.52 £2.10
49	COY3140000000 Out of stock	Cylinder Head Inner Cover	£2.52 £2.10
50	COY3150000000 Out of stock	Cylinder Head Outer Cover	£3.19 £2.66
51	COB1059W06014 Out of stock	Bolt M6X14	£2.52 £2.10
52	COY3110000000 Out of stock	Cylinder Head Assy	£59.03 £49.19
53	COB4002W06092 Out of stock	Two Stud Bolt M6X92	£2.52 £2.10
54	COY3810000000 Out of stock	Paper Gasket Of Inlet Pipe	£2.52 £2.10
55	COY3820000000 Out of stock	Air Inlet Pipe	£2.52 £2.10
56	COY3830000000 Out of stock	Paper Gasket Of Carburetor	£3.13 £2.61
57	COY585B000000 Out of stock	Carburetor Assy	£39.17 £32.64
58	COY2840000000 Out of stock	Paper Gasket Of Air Filter	£2.52 £2.10

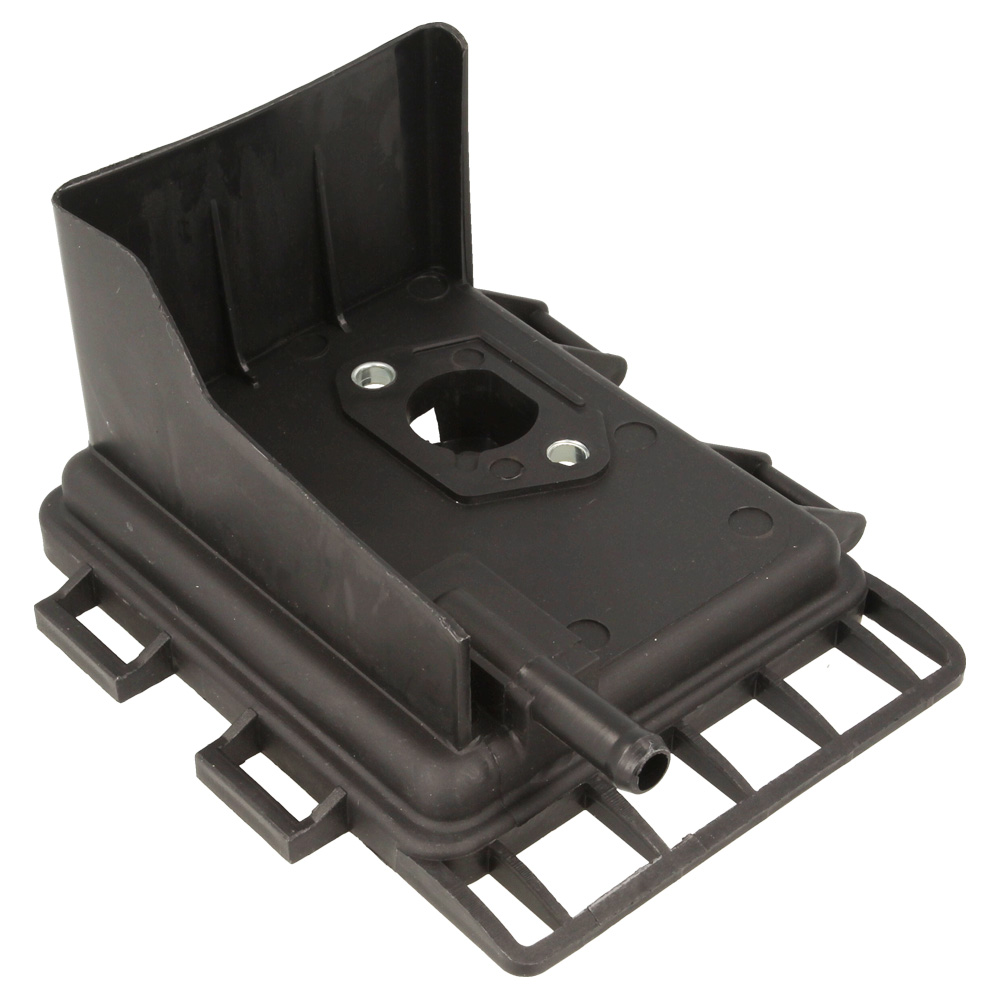

59	COY2870000100 Out of stock	Air Filter Pedestal	£3.84 £3.20
60	COY38A0000000 Out of stock	Exhuast Pipe Φ8Φ12140	£2.52 £2.10
61	COB2012W00000 Out of stock	Bolt	£2.52 £2.10
62	COY3880000000 In stock	Paper Filter Element	£7.78 £6.48
63	COY28C0000000 Out of stock	Filter Element	£3.78 £3.15
64	COY2860000000 Out of stock	Air Filter Upper Cover	£5.84 £4.87
65	COY28H0000000 Out of stock	Fuel Tank Cap	£5.26 £4.38
66	COY28F0000000 Out of stock	Seal Gasket Of Fuel Tank Cap	£2.52 £2.10
67	COY28T0000000 Out of stock	Connecting Rope	£2.52 £2.10
68	COB1063W06022 Out of stock	Bolt M6X22	£2.52 £2.10
69	COY28S0000000 Out of stock	Gasket	£2.52 £2.10
70	COY28D0000000 Out of stock	Fuel Tank	£13.91 £11.59
71	COY38N0000000 Out of stock	Right Bracket Of Fuel Tank	£2.52 £2.10
72	COB2008W00000 Out of stock	Locknut M6	£2.52 £2.10
73	COY38M0000000 Out of stock	Left Bracket Of Fuel Tank	£2.52 £2.10
74	COY28E0000000 Out of stock	Filtering Net Duct Of Fuel	£2.52 £2.10
75	COY28K0000000 Out of stock	Oil Pipe Circlip I	£2.52 £2.10
76	COY38J0000000 Out of stock	Oil Pipe	£5.34 £4.45
77	COY28U0000000 Out of stock	Oil Pipe Fixing Clip	£2.52 £2.10
78	COY28L0000000 Out of stock	Oil Pipe Circlip Ii	£2.52 £2.10
80	COY3660000000 Out of stock	Speed Regulator Rocker Spindle	£2.52 £2.10
81	COB5026W00000 Out of stock	Flat Washer	£2.52 £2.10
82	COBC006B00000 Out of stock	Oil Seal 6114	£2.52 £2.10
83	COY2670000000 Out of stock	Springness Split Pin	£2.52 £2.10
84	COY27X0000000 Out of stock	Bush	£2.52 £2.10
85	COY2690000000 Out of stock	Plate	£2.63 £2.19
86	COY269A000000 Out of stock	Fixing Board For Choke Cable	£2.52 £2.10
87	COB1060W06016 Out of stock	Bolt	£2.52 £2.10
88	COY56D0000000 Out of stock	Handspike Of Choke	£1.45 £1.21
89	COY56B0000000 Out of stock	Handspike Of Valve	£1.45 £1.21
90	COY36C0000000 Out of stock	Spring Of Valve	£2.52 £2.10
91	COB1085W06023 Out of stock	"T" Type Bolt M6X23	£2.52 £2.10
92	COY3680000000 Out of stock	Speed Regulator Rocker	£2.52 £2.10
93	COY36A0000300 Out of stock	Speed Regulator Vice Spring	£2.52 £2.10
94	COBC004B00000 Out of stock	Oil Seal 25387	£2.52 £2.10
95	COB0008W00000 Out of stock	Ball Bearing	£6.52 £5.43
96	COY541A000000 Out of stock	Crankshaft Assy	£50.45 £42.04
97	COY5470000000 Out of stock	Connecting Rod Assy	£10.81 £9.01
98	COY542ZC00000 Out of stock	98A Piston Assy	£17.98 £14.98
105	COY34A0000000 Out of stock	Gasket Of Gear	£2.52 £2.10
106	COY3350000000 Out of stock	Gasket Of Crankcase	£4.43 £3.69
107	COY3331200000 Out of stock	Lubricating Gauge	£5.26 £4.38
108	COBD006B00000 Out of stock	O Ring	£2.52 £2.10
109	COY3320000000 Out of stock	Lubricating Pipe	£3.89 £3.24
110	COY2360000000 Out of stock	Locating Pin Of Crankcase	£2.52 £2.10
111	COY3360000000 Out of stock	Locating Pin Of Crankcase	£2.52 £2.10
112	COBD004H00000 Out of stock	"O" Ring Φ21*Φ23	£2.52 £2.10
113	COB1016W10012 Out of stock	Draining Oil Bolt	£2.52 £2.10
114	COB5021W00000 Out of stock	Draining Oil Bolt Gasket	£2.52 £2.10
115	COY3310000000 Out of stock	Crankcase Cover	£41.12 £34.27
116	COBC008H00000 Out of stock	Oil Seal 25407	£4.18 £3.48
117	COY35B0000000 Out of stock	Tappet	£2.52 £2.10
118	COY5510000000 Out of stock	Camshaft Assy	£17.18 £14.32
119	COY2650000000 Out of stock	Gear Shaft Hold-Down Plate	£2.52 £2.10
120	COY2640000000 Out of stock	Sliding Sleeve	£2.52 £2.10
121	COY2610000000 Out of stock	Gear Shaft Assy	£2.66 £2.22
122	COY3620000000 Out of stock	Circlip Of Gear Shaft	£2.52 £2.10
123	COB5049W00000 Out of stock	Flat Washer	£2.52 £2.10
124	COB3072W00000 Out of stock	Screw	£2.52 £2.10
125	COY3WDKG00000 Out of stock	Switch	£2.52 £2.10
126	COB2031W00000 Out of stock	Nut	£2.52 £2.10
127	COY3B92018000 Out of stock	Switch Wire	£6.97 £5.81
9898	COY5490000000 Out of stock	98A-98 Circlip Of Piston Pin	£2.52 £2.10
9899	COY5420000000 Out of stock	98A-99 Piston Assy	£14.76 £12.30
98100	COY5480000000 Out of stock	98A-100 Piston Pin	£2.52 £2.10
98101	COY5450000000 Out of stock	98A-101 Scraper Ring	£2.52 £2.10
98102	COY5460000000 Out of stock	98A-102 Bushing Ring	£2.52 £2.10
98103	COY5440000000 Out of stock	98A-103 Piston Ring Ii	£2.52 £2.10
98104	COY5430000000 Out of stock	98A-104 Piston Ring I	£2.63 £2.19
