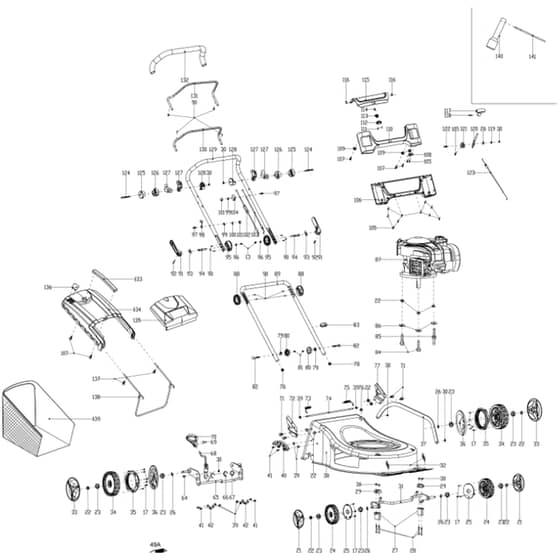

Cobra MX46SPB - 18" Self Propelled Main Diagram

Name: Cobra MX46SPB - 18" Self Propelled Main Diagram
SKU: mx46spb_18_self_propelled_main-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra MX46SPB - 18" Self Propelled Main Diagram

Description

Cobra MX46SPB Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800602301 Out of stock	Blade Locking Bolt	£2.52 £2.10
2	CO26300107302 Out of stock	Dishing Washer	£2.52 £2.10
3	CO26900205001 Out of stock	Pressing Board Of Blade Support	£2.52 £2.10
4	CO25271600101 In stock	Upper Pressing Plate Of Blade	£2.52 £2.10
5	CO26300248801 Out of stock	Blade	£20.14 £16.78
6	CO25271700101 In stock	Lower Pressing Plate Of Blade	£2.52 £2.10
7	CO26900208701 Out of stock	Blade Support - Briggs	£8.80 £7.33
7	CO26900212801 Out of stock	Blade Support - Honda	£8.80 £7.33
8	CO26809000201 Out of stock	Flat Pin	£2.52 £2.10
9	CO25231800101 Out of stock	Blade Support Bush	£2.52 £2.10
10	CO26800300502 Out of stock	Locking Screw	£1.26 £1.05
11	CO26300400202 Out of stock	Driving Belt Wheel	£6.38 £5.32
12	CO25100205501 In stock	Triangle Belt	£10.06 £8.38
13	CO26800500801 Out of stock	Hexagon Locking Nut	£1.26 £1.05
14	CO26800103701 In stock	Self-Driving Screw	£1.26 £1.05
15	CO26800700701 Out of stock	Flat Ring	£2.52 £2.10
16	CO25237800101 Out of stock	Belt Protecting Cover	£7.16 £5.97
17	CO26800100501 In stock	Self-Driving Screw	£1.26 £1.05
18	CO25301700101 Out of stock	Cover Handle	£2.52 £2.10
19	CO23600302101 Out of stock	Head Cover	£12.01 £10.01
20	CO25301600101 Out of stock	Cover Board	£2.57 £2.14
21	CO23600301901 Out of stock	Wheel Cover	£2.52 £2.10
22	CO26800502801 Out of stock	Hexagon Flange Locking Bolt	£1.26 £1.05
23	CO26800401601 In stock	Bearing	£4.20 £3.50
24	CO25400204001 Out of stock	Wheel Assy	£14.47 £12.06
25	CO25287100101 Out of stock	Dust-Proof Wheel Cover	£3.44 £2.87
26	CO26800706201 In stock	Wave Washer	£2.52 £2.10
27	CO25237600101 Out of stock	Lower Support Of Axle	£2.52 £2.10
28	CO26800611901 Out of stock	Hexagon Flange Locking Bolt	£2.52 £2.10

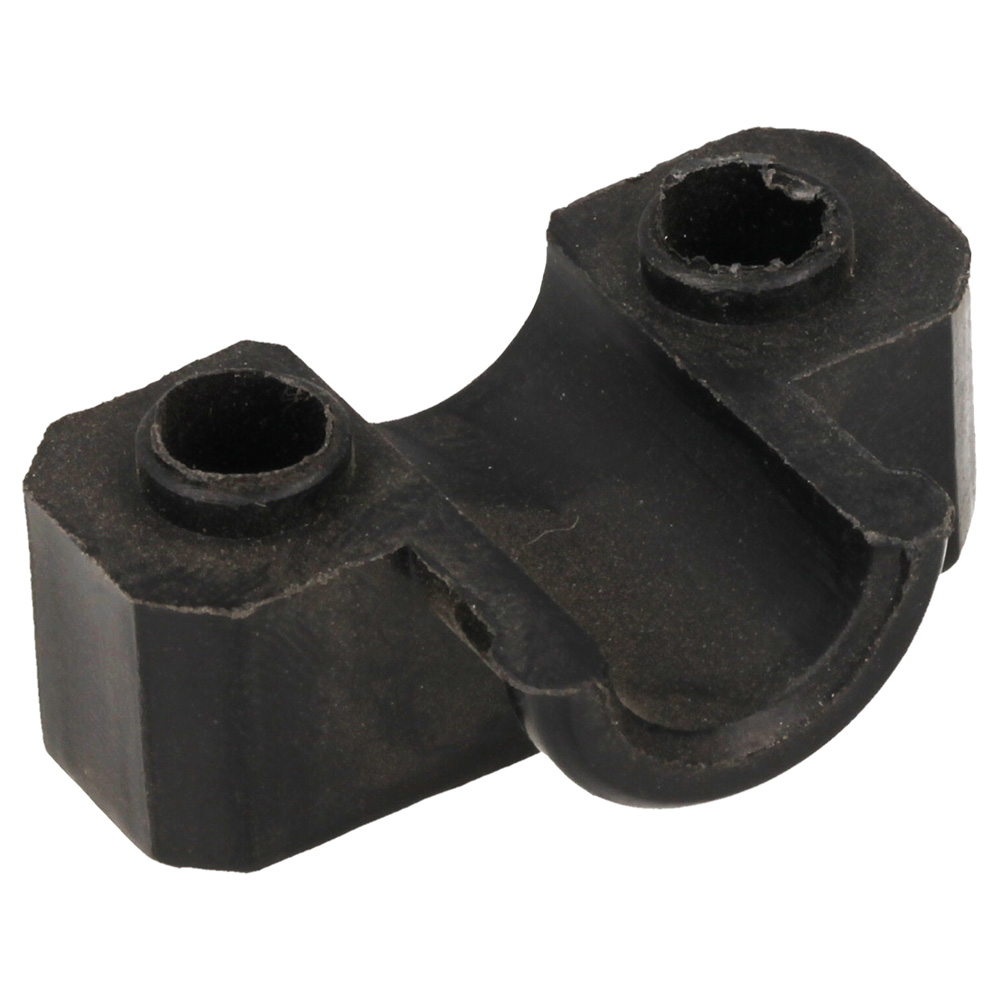

29	CO25237600201 Out of stock	Upper Support Of Axle	£2.52 £2.10
30	CO26800500501 Out of stock	Hexagon Locking Nut	£2.52 £2.10
31	CO26300137401 Out of stock	Front Wheel Axis Assy	£16.99 £14.16
32	CO26801111201 Out of stock	Front Wheel Axis Spring	£2.52 £2.10
33	CO23600302001 Out of stock	Wheel Cover	£5.32 £4.43
34	CO25400204101 Out of stock	Wheel Assy	£23.92 £19.93
35	CO25229500101 Out of stock	Wheel Gear Ring	£6.70 £5.58
36	CO25208700105 Out of stock	11 Dust-Proof Wheel Cover	£4.00 £3.33
37	CO26300137701 Out of stock	Connecting Rod	£6.89 £5.74
39	CO26800502401 Out of stock	Hexagon Flange Locking Bolt	£1.26 £1.05
40	CO23100106901 Out of stock	Gearing Board	£3.02 £2.52
41	CO26800201901 Out of stock	Tooth Screw	£1.26 £1.05
42	CO26300124401 Out of stock	Axle Fixing Ring	£2.52 £2.10
43	CO26800900201 Out of stock	Open Block Ring	£2.52 £2.10
44	CO26900300103 In stock	Left Output Gear Assy	£7.36 £6.13
45	CO26800705102 Out of stock	Flat Washer	£2.52 £2.10
46	CO26800402301 In stock	Bearing	£2.77 £2.31
47	CO26900203103 Out of stock	Bearing Sheath	£3.11 £2.59
48	CO26809000102 In stock	Column Pin	£2.52 £2.10
49	CO23050203201 Out of stock	Variable Gear Box Assy	£63.84 £53.20
49	CO2100200173 Out of stock	49A Gearbox Spring	£2.52 £2.10
50	CO26900300202 In stock	Right Output Gear Assy	£7.01 £5.84
51	CO26800611201 Out of stock	Hexagon Bolt	£2.52 £2.10
52	CO26300257701 Out of stock	Positioned Board	£2.52 £2.10
53	CO26300218302 Out of stock	Side-Discharge Fixing Board	£2.52 £2.10
54	CO26200101901 Out of stock	Side-Discharge Fixing Shaft	£2.52 £2.10
55	CO26800800403 Out of stock	Spring Washer	£2.52 £2.10
56	CO26800201501 Out of stock	Tooth Screw	£2.52 £2.10
57	CO26801113002 Out of stock	Spring Of Side Cover Board	£2.52 £2.10
58	CO25286500101 Out of stock	Side-Discharge Cover Board	£5.82 £4.85
59	CO25306600101 Out of stock	Side-Discharge Protecting Cover	£12.26 £10.22
60	CO25231700101 Out of stock	Pressing Board Of Locking Button	£2.52 £2.10
61	CO26801100501 Out of stock	Spring	£2.52 £2.10
62	CO25231600501 Out of stock	Locking Knob	£2.52 £2.10
63	CO25232600101 Out of stock	Mulching Plug-In	£10.19 £8.49
64	CO26800203001 Out of stock	Cross Pan Screw	£1.26 £1.05
65	CO26300137201 Out of stock	Rear Wheel Axis Assy	£19.51 £16.26
66	CO26800900301 Out of stock	E Clip	£2.52 £2.10
67	CO26300107601 Out of stock	Adjusting Washer	£2.52 £2.10
68	CO26300139602 Out of stock	Handle Assy	£3.49 £2.91
69	CO26800303301 Out of stock	Sunk Screw	£1.26 £1.05
70	CO25400105401 Out of stock	Height Adjustment Handle	£4.64 £3.87
71	CO26800606401 Out of stock	Hexagon Flange Locking Bolt	£2.52 £2.10
72	CO23600118701 Out of stock	Right Handle Bracket	£5.32 £4.43
73	CO26801111301 Out of stock	Spring Of Right Knob	£2.52 £2.10
74	CO26300136601 Out of stock	Long Rod	£2.52 £2.10
75	CO26801111401 Out of stock	Spring Of Left Knob	£2.52 £2.10
76	CO25217800104 Out of stock	Cord Protceting Sheath	£2.52 £2.10
77	CO23600118601 Out of stock	Left Handle Blacket	£5.32 £4.43
78	CO25100119902 Out of stock	Plug	£2.52 £2.10
79	CO25100108501 Out of stock	Curl Washer	£2.52 £2.10
80	CO25236500101 Out of stock	Knob Of Lower Handle Pole	£2.52 £2.10
81	CO26800502301 Out of stock	Hexagon Nut	£1.26 £1.05
82	CO26800600401 Out of stock	Bolt	£2.52 £2.10
83	CO25261100101 Out of stock	Wire Clamp	£2.52 £2.10
84	CO26800602501 Out of stock	Hexagon Bolt	£2.52 £2.10
85	CO26800304401 Out of stock	Special Nut	£2.52 £2.10
86	CO26300210602 Out of stock	Square Washer	£2.52 £2.10
88	CO25205500103 Out of stock	Lower Adjuesting Gear Ring	£2.52 £2.10
89	CO26300138504 Out of stock	Lower Handle Pole	£16.91 £14.09
90	CO26800104902 Out of stock	Self-Driving Screw	£1.26 £1.05
91	CO25236400101 Out of stock	Locking Handle	£2.52 £2.10
92	CO26809004801 Out of stock	Column Pin	£2.52 £2.10
93	CO26300111901 Out of stock	Pressing Plate	£2.52 £2.10
94	CO26300130101 Out of stock	Locking Handle Bolt	£2.52 £2.10
95	CO25205400103 Out of stock	Upper Adjusting Gear Ring	£2.52 £2.10
96	CO26300118902 Out of stock	Flate Washer	£2.52 £2.10
97	CO26800607701 Out of stock	Hexagon Flange Locking Bolt	£2.52 £2.10
98	CO26300168401 Out of stock	Rope Guide	£2.52 £2.10
99	CO26800700801 Out of stock	Flate Washer	£2.52 £2.10
100	CO26800800303 Out of stock	Spring Washer	£2.52 £2.10
101	CO26800501602 Out of stock	Lid Nut	£2.52 £2.10
102	CO29100126301 In stock	Driving Cord Assy	£12.58 £10.48
103	CO29100125201 Out of stock	Flameout Cord Assy	£10.06 £8.38
104	CO25233600101 Out of stock	Cord Fixing Board	£2.52 £2.10
105	CO26800105602 Out of stock	Self-Driving Screw	£2.52 £2.10
106	CO25286200101 Out of stock	Rear Cover Of Panel	£10.06 £8.38
107	CO26800104601 Out of stock	Self-Driving Screw	£1.26 £1.05
108	CO26300139501 Out of stock	Board	£2.52 £2.10
109	CO25239100101 Out of stock	Curl Washer	£2.52 £2.10
110	CO25286100101 Out of stock	Armrest Of Panel	£10.64 £8.87
111	CO26800103602 Out of stock	Self-Driving Screw	£2.52 £2.10
112	CO25237200101 Out of stock	Pressing Board	£2.52 £2.10
113	CO25286400101 Out of stock	Locking Botton Of Panel	£2.52 £2.10
114	CO26801104201 Out of stock	Safety Button Spring	£2.52 £2.10
115	CO25286300101 Out of stock	Panel Cover	£3.02 £2.52
116	CO26801111501 Out of stock	Flip Torsional Spring	£2.52 £2.10
117	CO25239200101 Out of stock	Gear Adjusting Handle	£2.52 £2.10
118	CO26800202501 Out of stock	Tooth Screw	£1.26 £1.05
119	CO26800700301 Out of stock	Big Washer	£2.52 £2.10
120	CO26300139301 Out of stock	Choke Pulling Pole	£2.52 £2.10
121	CO25238700101 Out of stock	Choke Gear Board	£2.52 £2.10
122	CO26800604501 Out of stock	Hexagon Bolt	£2.52 £2.10
123	CO29100128201 Out of stock	Choke Cord Assy	£11.32 £9.43
124	CO26800611401 Out of stock	Inner Haxagon Bolt	£2.52 £2.10
125	CO25239300101 Out of stock	Outside Positioned Support	£2.52 £2.10
126	CO25239300201 Out of stock	Inside Positioned Support	£2.52 £2.10
127	CO25287600101 In stock	Self-Driving Cord Board	£2.52 £2.10
128	CO25239300302 Out of stock	Cover Board Of Pulling Pole	£2.52 £2.10
129	CO26300138606 Out of stock	Upper Handle Pole	£22.18 £18.48
130	CO23600153101 Out of stock	Flameout Pulling Pole	£5.82 £4.85
131	CO26300139003 Out of stock	Choke Pulling Pole	£5.82 £4.85
132	CO25600101903 Out of stock	Handle Sheath	£4.60 £3.83
133	CO25275500201 Out of stock	Grass Catcher Handle	£2.52 £2.10
134	CO25275300101 Out of stock	Grass Catcher Cover	£19.32 £16.10
135	CO23000450701 Out of stock	Rear Cover Assy	£8.68 £7.23
136	CO25275600501 Out of stock	Wind Window Board	£2.52 £2.10
137	CO26800103202 Out of stock	Self-Driving Screw	£1.26 £1.05
138	CO26300195901 Out of stock	Grass Catcher Bracket	£18.25 £15.21
139	CO25100137801 Out of stock	Grass Catcher	£21.97 £18.31
140	CO26300161201 Out of stock	Wrench	£2.52 £2.10
141	CO26300107901 Out of stock	Wrench Rod	£2.52 £2.10
