Cobra MTX230C - Multi Tool Sept 2018 Main Diagram

Ref. Img. Part No. Details
  1 230 Engine Assy COGC230-42000
230 Engine Assy
Out of stock
£108.84 £90.70

  1 ZC1 Connecter Assy COGC305.3-42100
ZC1 Connecter Assy
Out of stock
£25.60 £21.33

  2 ZC2 G-Handle Ass`Y COGC260-46090
ZC2 G-Handle Ass`Y
Out of stock
£11.98 £9.98

  2 Clutch Housing COGC260.3-44310
Clutch Housing
Out of stock
£35.36 £29.47

  3 Combination Screw COGC260-97016
Combination Screw
Out of stock
£1.26 £1.05

  4 ZC4 Nylon Head Assy COGC305.3-48180
ZC4 Nylon Head Assy
Out of stock
£21.00 £17.50

  4 Combination Screw COBGC350K-97025
Combination Screw
Out of stock
£2.52 £2.10

  5 Screw COYD3800-90021
Screw
Out of stock
£1.26 £1.05

  6 Aluminium Pipe Of Engie Side COGC305-45106A
Aluminium Pipe Of Engie Side
Out of stock
£26.10 £21.75

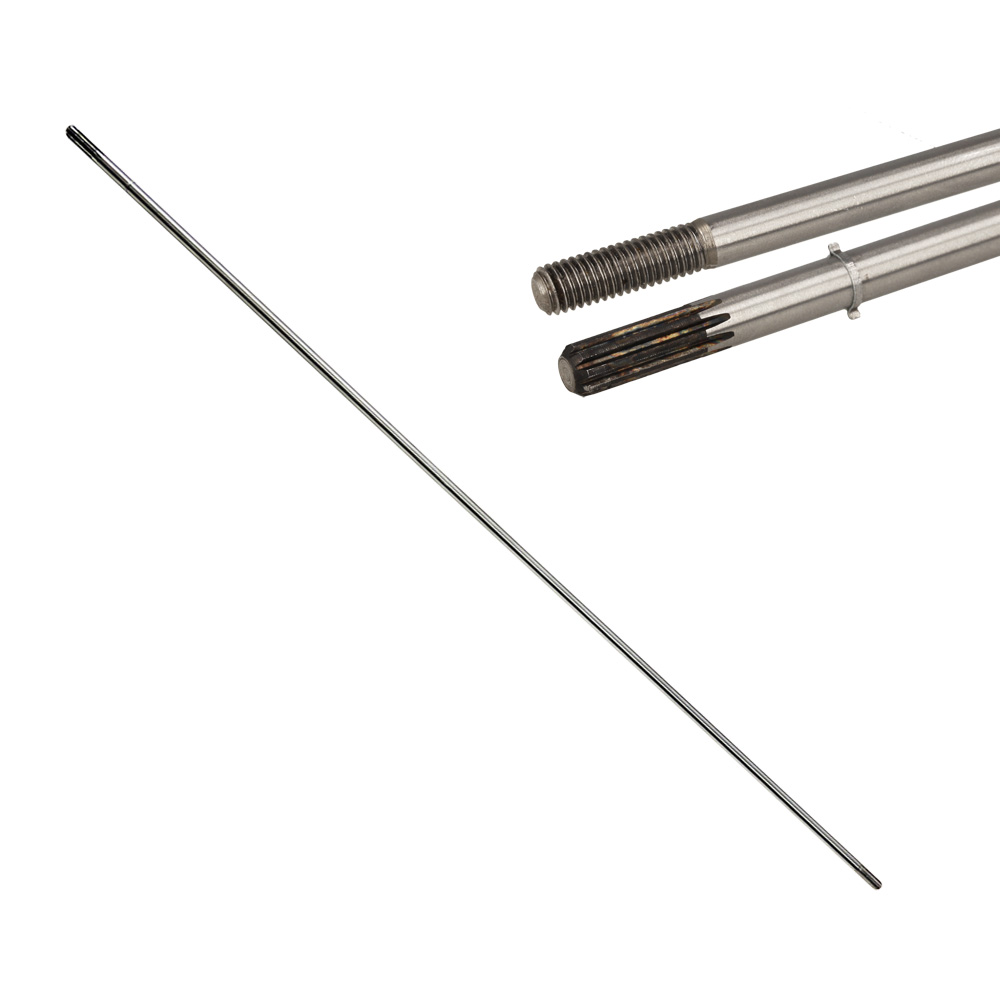

  7 Drive Shaft Of Engine Side COGC305-42108
Drive Shaft Of Engine Side
Out of stock
£28.36 £23.63

  8 Bearing COGC415-45300
Bearing
Out of stock
£2.52 £2.10

  9 Spline Housing COGC415-42116
Spline Housing
Out of stock
£4.25 £3.54

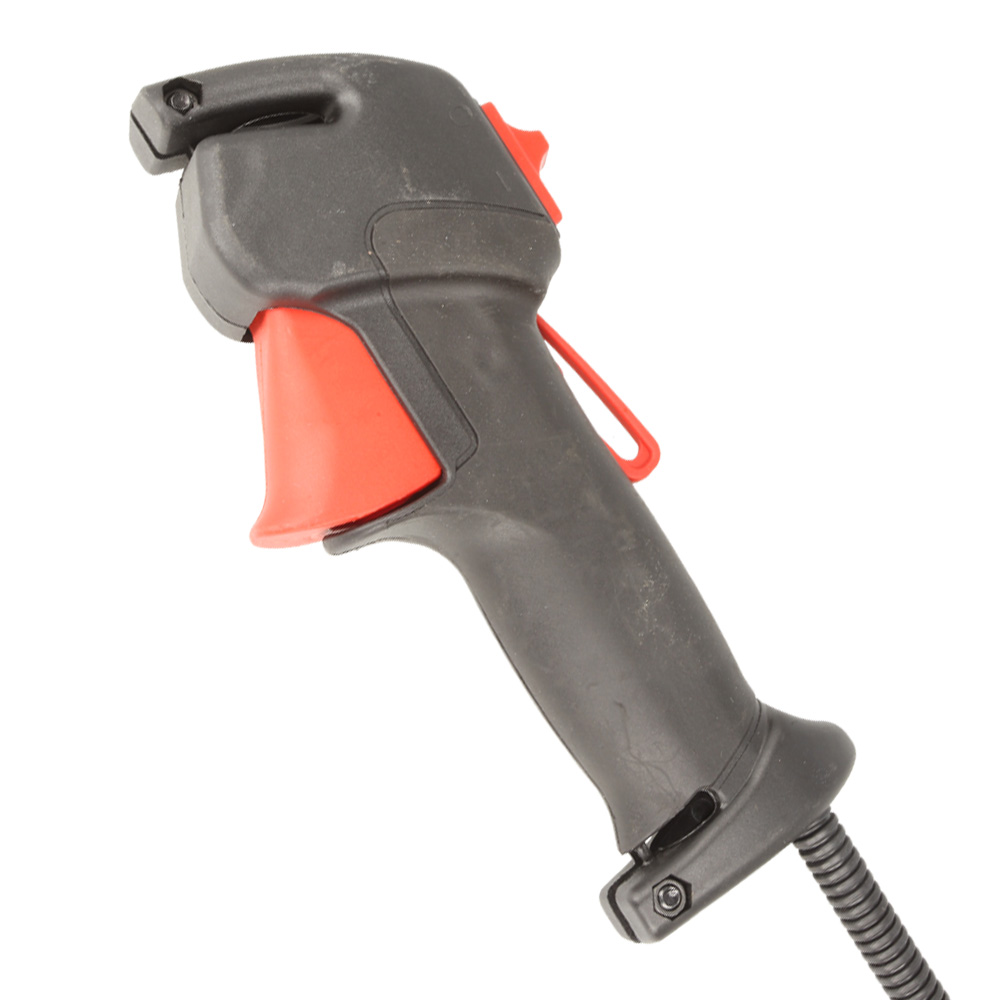

  10 Controller COLJ260K-47000
Controller
Out of stock
£18.84 £15.70

  11 Damping Sleeve COGC305.5-48057
Damping Sleeve
Out of stock
£2.52 £2.10

  12 Hex Nut COYD2500-92001
Hex Nut
Out of stock
£1.26 £1.05

  13 Hook COGC305-46581
Hook
Out of stock
£2.52 £2.10

  14 Hook Fix Seat COGC305-13582
Hook Fix Seat
Out of stock
£2.52 £2.10

  15 Screw COYD5200.5-90030
Screw
Out of stock
£2.52 £2.10

  16 Pin Handle COGC260-42158
Pin Handle
Out of stock
£2.58 £2.15

  20 New Connector COGC305.3-42150
New Connector
Out of stock
£26.26 £21.88

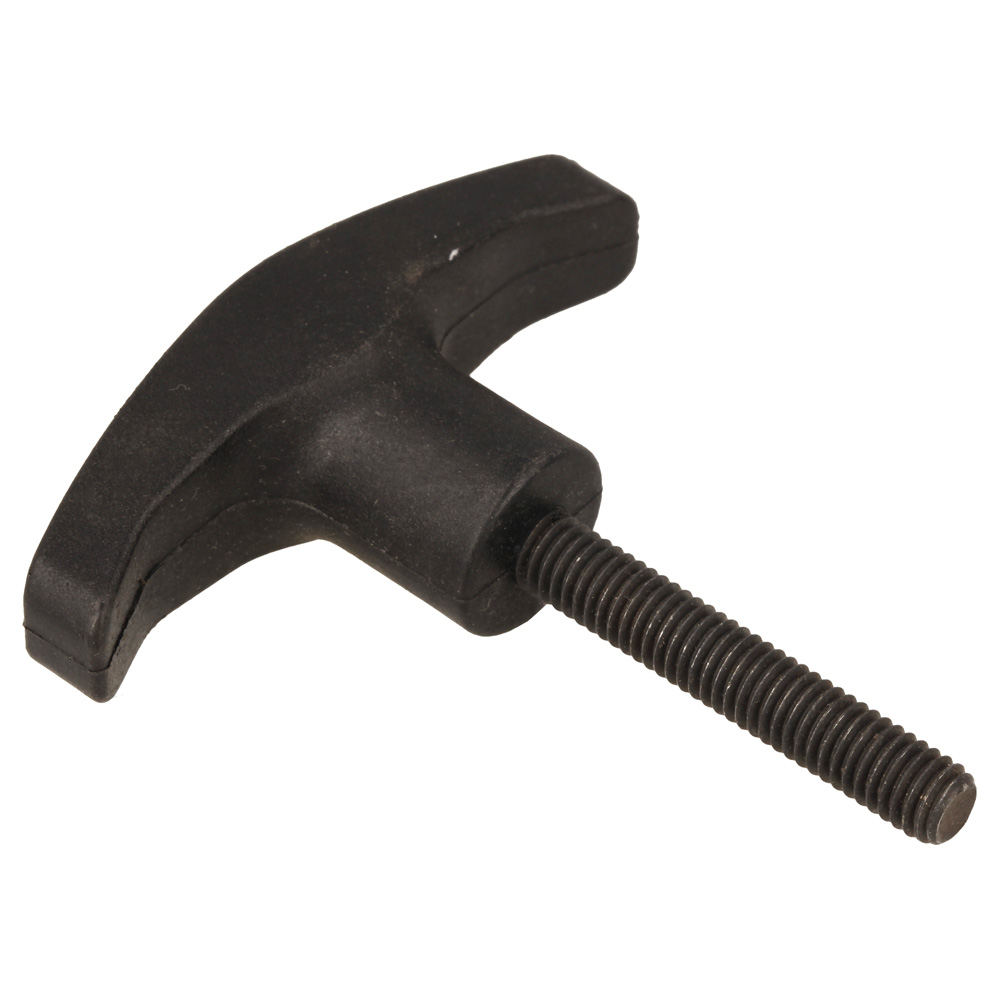

  21 Tighten Handle COGC260-43023
Tighten Handle
Out of stock
£3.16 £2.63

  22 Screw COGC305-90012
Screw
Out of stock
£1.26 £1.05

  23 Screw COYD4500-90025
Screw
Out of stock
£1.26 £1.05

  25 Circle Shealth COGC260-46092
Circle Shealth
Out of stock
£3.76 £3.13

  27 Aluminium Pipe Of Working Side COGC305-45116B
Aluminium Pipe Of Working Side
Out of stock
£17.95 £14.96

  28 Drive Shaft Of Working Side COGC305-42109
Drive Shaft Of Working Side
Out of stock
£27.10 £22.58

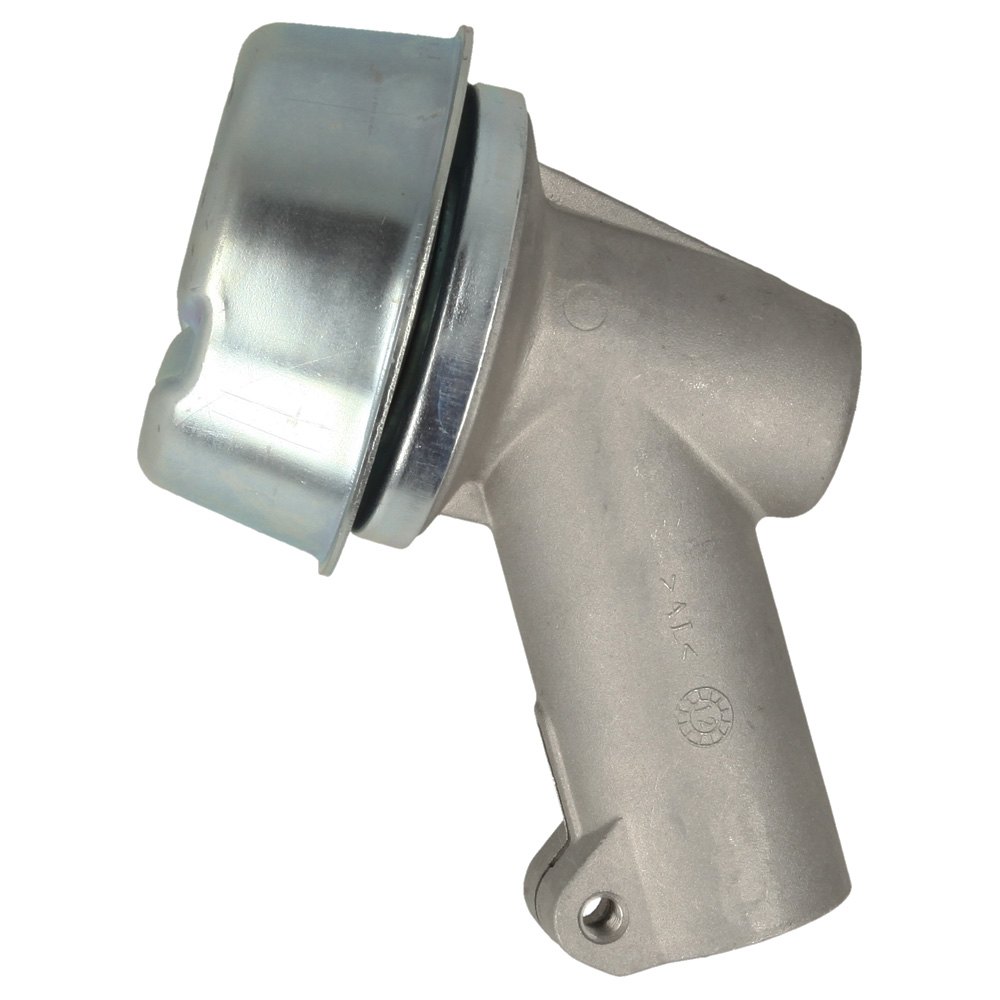

  29 A Gear Box Assy COGC305.3B-48040
A Gear Box Assy
Out of stock
£34.63 £28.86

  30 Screw COGC305.5-90039
Screw
Out of stock
£1.26 £1.05

  31 Clamping Upper Plate COGC305.5-48051
Clamping Upper Plate
Out of stock
£2.52 £2.10

  32 Protective Cover COGC305.5-48053
Protective Cover
Out of stock
£18.25 £15.21

  33 Tapping Screw COGC305.3B-91337
Tapping Screw
Out of stock
£2.52 £2.10

  34 Small Blade COGC305.3A-48056.2A
Small Blade
Out of stock
£2.52 £2.10

  35 Protective Cover Plate COGC305.5-48060
Protective Cover Plate
Out of stock
£2.52 £2.10

  36 Clamping Under Plate COGC305-48052B
Clamping Under Plate
Out of stock
£2.52 £2.10

  39 Nylon Rope (Ral9016 White) COGC305-48185
Nylon Rope (Ral9016 White)
Out of stock
£2.52 £2.10

  41 Sheath Of Nylon Head COGC305-48237
Sheath Of Nylon Head
Out of stock
£2.52 £2.10

  43 Three Teeth Blade COGC305-48200
Three Teeth Blade
Out of stock
£10.50 £8.75

  44 Aluminium Pipe Of Working Side COPNM250-45116
Aluminium Pipe Of Working Side
Out of stock
£19.38 £16.15

  46 Screw COLJ260K-90010
Screw
Out of stock
£2.52 £2.10

  47 Pruner Saw Head COGCM250-46500
Pruner Saw Head
Out of stock
£62.40 £52.00

  48 Screw COYD4500-90022
Screw
Out of stock
£1.26 £1.05

  49 Handle COGCM250-45511
Handle
Out of stock
£2.52 £2.10

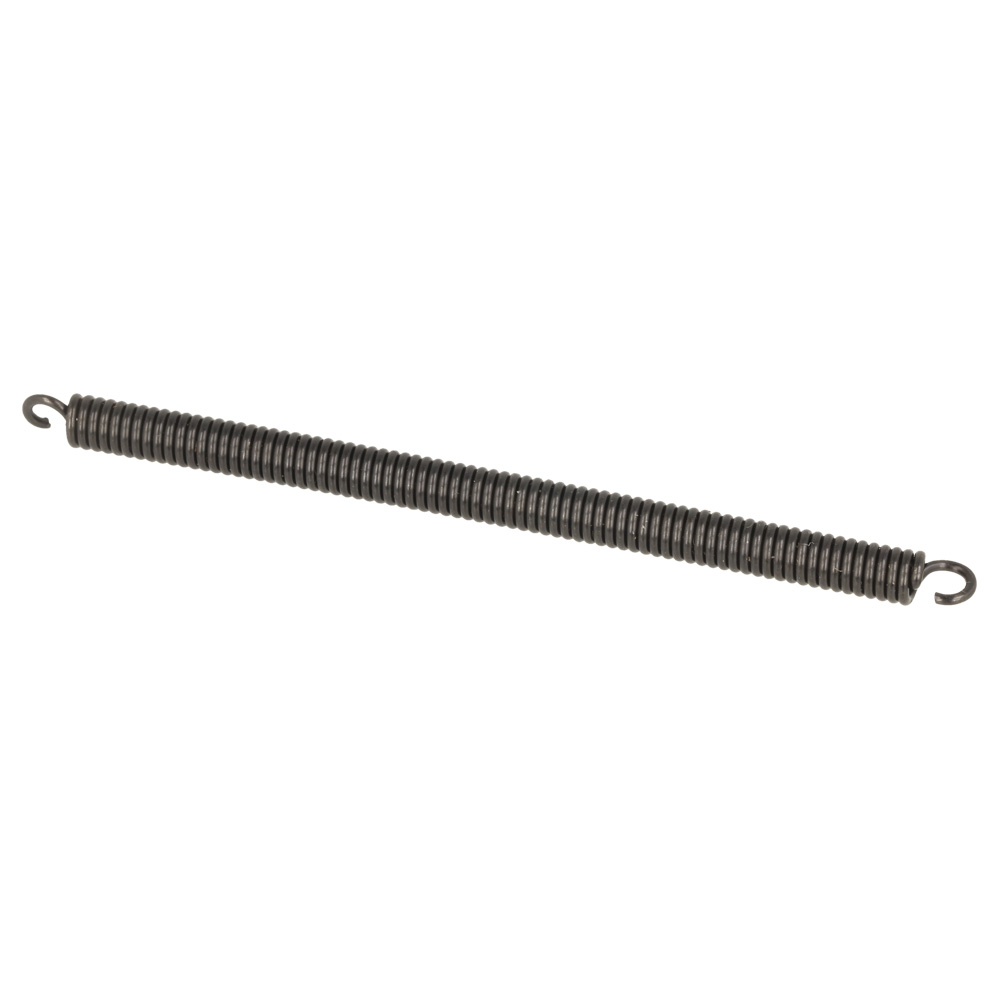

  50 Spring COGCM250-45510
Spring
Out of stock
£2.52 £2.10

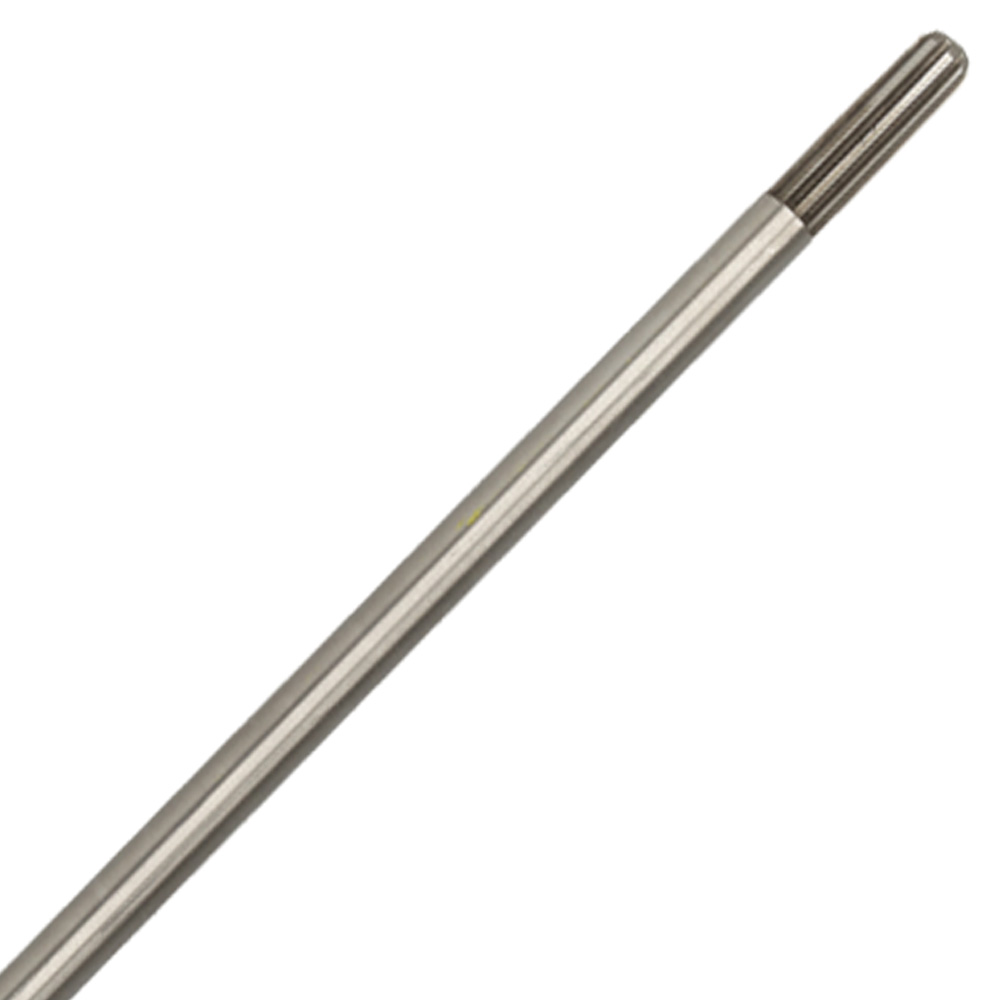

  52 Connector Drive Shaft COGC260-45131
Connector Drive Shaft
Out of stock
£27.10 £22.58


Description

Cobra MTX230C Multi Tool Parts Diagram
