Cobra MT250C - Multi Tool Main Diagram

Name: Cobra MT250C - Multi Tool Main Diagram
SKU: mt250c_multi_tool_main-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

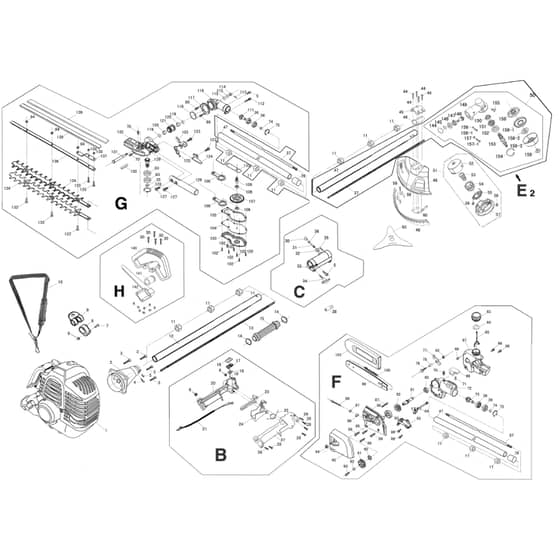

Cobra MT250C Multi Tool Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	COGCM250-42130 Out of stock	C Connecter Assy	£26.26 £21.88
0	COGCM430-42700 Out of stock	G Hedge Trimmer Work Head Assy	£67.08 £55.90
1	COLJ260K-47000 Out of stock	B Control Handel Assy	£18.84 £15.70
2	COGC260-46090 Out of stock	H G-Handle Assy	£11.98 £9.98
1	COGCM250-42500 Out of stock	E1 Blade Work Head Assy	£42.53 £35.44
4	COGCM430-46500 Out of stock	F Lopper Saw Work Head Assy	£46.00 £38.33
1	COGC260.3B-42000 Out of stock	Engine	£91.80 £76.50
2	COGC260.3-44310 In stock	Support -Output	£35.89 £29.91
2	COGCM250-48000 Out of stock	E2 Spool Work Head Assy	£60.12 £50.10
3	COGC260-97016 Out of stock	Screw	£1.26 £1.05
4	COBGC350K-97025 Out of stock	Screw	£2.52 £2.10
5	COYD3800-90021 Out of stock	Screw	£1.26 £1.05
6	COYD2500-92001 Out of stock	Nut	£1.26 £1.05
7	COYD3800-90024 Out of stock	Screw	£1.26 £1.05
8	COGC415-46582 Out of stock	Support	£2.52 £2.10
9	COGC415-46581 Out of stock	Pothook	£2.52 £2.10
10	COGC260LDB-46591 Out of stock	Belt	£12.46 £10.38
11	COGC415-45300 Out of stock	Oil Bearing	£2.52 £2.10
12	COGC305-45106A Out of stock	Aluminous Pipe-Power Side	£26.10 £21.75
13	COGC260-42107 Out of stock	Drive Shaft	£28.36 £23.63
14	COGCM250-45510 Out of stock	Spring	£2.52 £2.10
15	COGCM250-45511 Out of stock	Middle Grip	£2.52 £2.10
16	COLJ260K-47061 Out of stock	Switch Plate	£3.50 £2.92
21	COLJ260K-47060 Out of stock	Stop Wire Assy	£5.65 £4.71
24	COLJ260K-47006 Out of stock	Trigger	£3.76 £3.13
30	COGC260-42158 Out of stock	Connector Assembly	£2.58 £2.15
33	COGC305.3-42150 Out of stock	Connector	£26.26 £21.88
34	COGC260-42150.1 Out of stock	Clamp	£2.52 £2.10
35	COGC305-90012 Out of stock	Screw Shaft Tube Retainer	£1.26 £1.05
37	COGC305-42109 Out of stock	Drive Shaft On Working Side	£27.10 £22.58
38	COGC415-42116 Out of stock	Spline Housing	£4.25 £3.54
44	COGC305.5-90039 Out of stock	Screw M5 X 30	£1.26 £1.05
45	COGC305.5-48051 Out of stock	Up Plate Of Protect Cover	£2.52 £2.10
46	COGC305.5-48057 Out of stock	Damping Sleeve	£2.52 £2.10
48	COGC305.5-48053 Out of stock	Cutting Attachment Shield	£18.25 £15.21
49	COGC305.5-48060 Out of stock	Plt Btm Brush Cutter Ppp	£2.52 £2.10
50	COGC305.3B-48040 Out of stock	Big Gear Bos Assy	£34.63 £28.86
51	COGC415-48230 Out of stock	Nylon Cutter Assy	£10.63 £8.86
58	COGC305.3A-48056.2A Out of stock	Small Blade	£2.52 £2.10
59	COGC305.3B-91337 Out of stock	Screw Line Cutting Blade St4.8 X 14	£2.52 £2.10
60	COGC305-48052B Out of stock	Bottom Clamp Bracket	£2.52 £2.10
62	COGC305-48200 Out of stock	Blade 3 Toothed	£10.50 £8.75
63	COGCM250-19234 Out of stock	Oil Cap	£2.52 £2.10
67	COGCM250-18300 Out of stock	Oil Capacity Assy	£5.02 £4.18
73	COGCM250-46651 Out of stock	Gear	£2.52 £2.10
81	COGCM250-46583 Out of stock	Gear Shaft Assy	£2.52 £2.10
83	COLJ230B-96016 Out of stock	Bearing	£3.49 £2.91
85	COGCM250-19100 Out of stock	Oil Pump Assy	£2.52 £2.10
87	COGC305-90013 Out of stock	Screw	£1.26 £1.05
95	COGCM250-46659 Out of stock	Left Cover	£5.02 £4.18
99	COGCM250-22910 Out of stock	Bar	£12.58 £10.48
100	COGCM250-22300 Out of stock	Chain	£17.95 £14.96
101	COGCM250-46800 Out of stock	Cover Of Bar	£3.95 £3.29
102	COLJ260K-90006 Out of stock	Screw	£1.26 £1.05
114	COBGC260-92401 Out of stock	Nut	£1.26 £1.05
115	COYD3600-93002 Out of stock	Washer	£2.52 £2.10
141	COGC260-46092 Out of stock	Circle Cover	£3.76 £3.13
150	COGC415-96030 Out of stock	Ball Bearing	£2.52 £2.10
156	COGC305.3B-93113 Out of stock	Washer	£2.52 £2.10
158	COGC305.3-48046A Out of stock	Shaft Bushing	£3.42 £2.85
159	COGC305.1-92105 Out of stock	Locking Nut Cutting Blade	£3.78 £3.15
1561	COYD4500-90022 Out of stock	156-1 Oiling Bolt	£1.26 £1.05
1581	COGC305.3-48047 Out of stock	158-1 Blade Holder	£3.13 £2.61
1582	COGC305.3-48045 Out of stock	158-2 Spacer	£2.52 £2.10
1583	COGC305.3-48048A Out of stock	158-3 Blade Holder Cover	£3.13 £2.61
