Cobra MT250C - Multi Tool Engine Diagram

Description

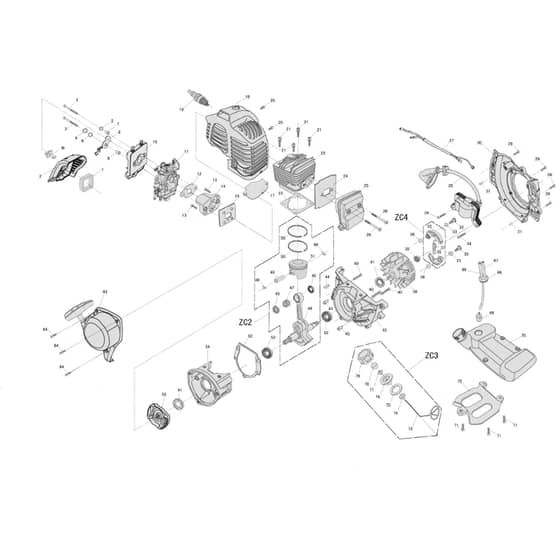

Cobra MT250C Multi Tool Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	COGC260.3B-16313 In stock	Air Filter Sponge	£4.26 £3.55
2	COGC260.3B-16301 In stock	Cover-Air Fiilter	£6.16 £5.13
3	COCG260-1-18030 Out of stock	ZC3 Fuel Cap Assembly	£5.87 £4.89
4	COCG260.1-22110 Out of stock	ZC4 Clutch Assembly	£22.03 £18.36
5	COYD2500-93012 Out of stock	Flat Washer	£1.26 £1.05
8	COGC260.3B-24006 Out of stock	Choke Knob	£3.50 £2.92
10	COGC260-1-16211 Out of stock	Air Filter Back Plate	£2.52 £2.10
11	COGC305-18200 In stock	Carburetor	£31.44 £26.20
12	COGC260.1-18204 Out of stock	Gasket Carburetor	£2.52 £2.10
14	COGC260.3-16111 Out of stock	Insulator- Intake Boot	£3.64 £3.03
15	COGC260.1-16001 Out of stock	Washer-Intake	£2.52 £2.10
16	COGC260.3B-16426 In stock	Air Filter Cover Knob	£2.52 £2.10
17	COGC260.3-21201 Out of stock	Muffler Heat Shield	£3.64 £3.03
19	COGC260.3-11301 Out of stock	Cylinder Cover	£11.20 £9.33
23	COGC260.1-12501 Out of stock	Head Gasket	£7.16 £5.97
24	COGC260-1-21001 Out of stock	Heat Plate Gasket	£2.52 £2.10
25	COGC260-21130 Out of stock	Muffler Assembly	£18.25 £15.21
26	COYD4500-90029 Out of stock	Screw	£1.26 £1.05
28	COGC260.3-26110 In stock	Ignition Assembly	£23.80 £19.83
33	COGC305-93402 Out of stock	Gasket	£2.52 £2.10
34	COYD3800-90024 Out of stock	Screw M5 20	£1.26 £1.05
36	COYD3600-93002 Out of stock	Washer	£2.52 £2.10
38	COYD2500-92101 Out of stock	Nut	£1.26 £1.05
39	COGC260-1-15110 Out of stock	Flywheel Assembly	£7.37 £6.14
41	COYD3800-95012 Out of stock	Oil Seal Fb12X22X7	£2.52 £2.10
52	COYD2500-96011 Out of stock	Oil Seal	£2.52 £2.10
55	COGC260-25260.1 Out of stock	Starter Cup	£5.26 £4.38
63	COCG260-1-25000-3B Out of stock	Recoil Starter _ 3 Hole Fixing	£18.76 £15.63
64	COGB/T9074.4 M5X16 Out of stock	Screw M5X16	£1.26 £1.05
66	COCG260.3-18104 Out of stock	Support-Fuel Pipe	£4.51 £3.76
67	COCG260.3-18101.1 In stock	Fuel Outlet	£2.52 £2.10
68	COCG260.3-18101.2 Out of stock	Fuel Inlet	£2.52 £2.10
69	COCG260.3-18034 Out of stock	Fuel Filter	£4.90 £4.08
70	COCG260.3-18300 Out of stock	Fuel Tank	£11.95 £9.96
71	COYD6200-97004 Out of stock	Combination Screw M5X20	£1.26 £1.05
72	COGC260.3-18303 Out of stock	Fuel Tank Support 26Cc	£5.65 £4.71
80	COCG260.3-25000 Out of stock	Recoil Starter 4 Hole Fixing	£14.99 £12.49
