Cobra M53HSTPRO - TN2160SXAHHSTPRO Handles Diagram

Name: Cobra M53HSTPRO - TN2160SXAHHSTPRO Handles Diagram
SKU: m53hstpro_tn2160sxahhstpro_handles-group
Price: 0.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra M53HSTPRO - TN2160SXAHHSTPRO Handles Diagram

Description

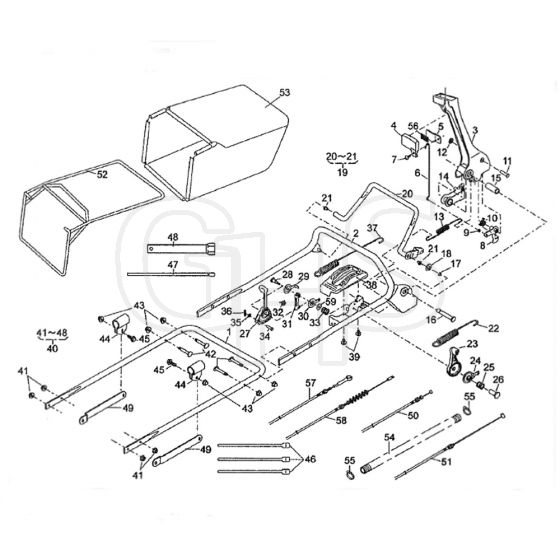

Cobra M53HSTPRO Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO51027-268-103 Out of stock	Handle	£100.26 £83.55
2	CO51027-269-103 Out of stock	Handle	£134.64 £112.20
3	DA11095-172 Out of stock	Lever	£32.02 £26.68
4	DA36110-102 In stock	Button	£3.96 £3.30
5	DA11049-109 Out of stock	Slide Plate	£4.63 £3.86
6	DA64014-336 Out of stock	Shaft	£5.12 £4.27
7	DA376L0612 Out of stock	Truss Screw	£0.89 £0.74
8	DA71203-135 Out of stock	Arm Cp	£8.24 £6.87
9	DA76007-183 Out of stock	Bush	£2.26 £1.88
10	DA68013-371 Out of stock	Spring	£2.46 £2.05
11	DA31056-127 Out of stock	Gib-Headed Pin	£0.70 £0.58
12	DA576V0600 Out of stock	Push Nut	£0.70 £0.58
13	CO68013-392 Out of stock	Spring	£4.84 £4.03
14	DA11109-111 Out of stock	Link	£17.60 £14.67
15	DA61023-190 Out of stock	Sleeve	£3.41 £2.84
16	DA64014-337 Out of stock	Shaft	£2.18 £1.82
17	DA812V0800 Out of stock	C-Snap Ring	£0.36 £0.30
19	DA71161-114-09 In stock	Lever Assy (Inc Item 20 & 21)	£37.32 £31.10
21	DA76007-131 Out of stock	Bush	£1.13 £0.94
22	CO68013-385 Out of stock	Spring	£9.05 £7.54
23	DA91010-169 Out of stock	Throttle Lever	£14.26 £11.88
24	DA61003-113 Out of stock	Thrust Plate	£2.14 £1.78
26	DA31058-168 Out of stock	Hexagon Nut	£3.54 £2.95
27	DA11095-162 Out of stock	Lever	£13.24 £11.03
28	DA31057-249 Out of stock	Hexagon Bolt	£8.80 £7.33
29	DA61003-118 Out of stock	Thrust Plate	£25.94 £21.62
30	DA11049-108 Out of stock	Slide Plate	£26.26 £21.88
31	DA11109-112 Out of stock	Link	£7.38 £6.15
32	CO68013-369 Out of stock	Spring	£2.60 £2.17
33	CO68013-356 Out of stock	Spring	£1.96 £1.63
34	DA31056-126 Out of stock	Gib-Headed Pin	£3.95 £3.29
35	DA613L0600 In stock	Plain Washer	£0.48 £0.40
36	DA733L0600 Out of stock	Snap Pin	£0.30 £0.25
37	CO68013-375 Out of stock	Spring	£11.98 £9.98
38	DA71900-811 Out of stock	Cover Assy	£23.41 £19.51
41	DA569L0800 Out of stock	Flange Nylon Nut	£1.04 £0.87
42	DA31057-256 Out of stock	Hexagon Bolt	£1.58 £1.32
43	DA583L0800 Out of stock	Flange Cap Nut	£1.38 £1.15
44	DA11012-132 Out of stock	Hanger Band	£6.40 £5.33
45	DA31057-181 Out of stock	Hexagon Bolt	£4.14 £3.45
46	DA68028-118 Out of stock	Wire Band	£3.08 £2.57
49	DA71900-846 Out of stock	Bar Set	£46.44 £38.70
50	DA91001-329 In stock	Throttle Wire	£25.96 £21.63
51	DA91003-169 In stock	Control Cable	£26.64 £22.20
52	DA11062-178 Out of stock	Frame Cp	£83.88 £69.90
53	DA36098-170 Out of stock	Grass Bag Cp	£124.80 £104.00
54	DA41003-201 Out of stock	Tube	£8.16 £6.80
55	DA68028-119 Out of stock	Wire Band	£0.48 £0.40
56	DA36080-156 In stock	Rubber Sheet	Was £1.61 £1.34 Special Price £1.07 £0.89
57	DA91003-201 Out of stock	Control Cable	£45.72 £38.10
58	DA91003-181 Out of stock	Control Cable	£50.12 £41.77
59	DA61003-109 Out of stock	Thrust Plate	£1.16 £0.97
