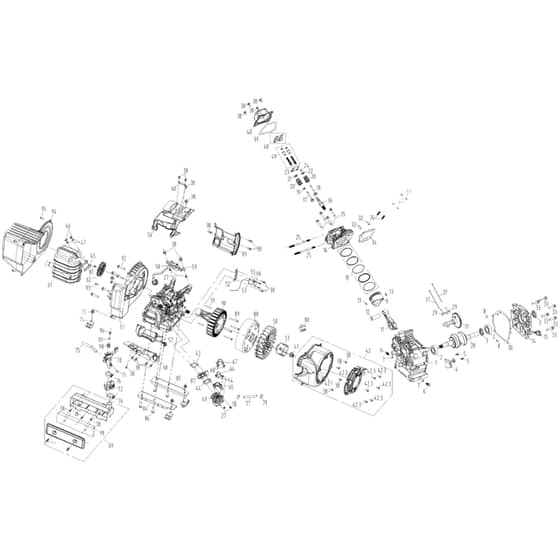

Cobra IG32esi - Generator Engine Diagram

Ref. Img. Part No. Details
  2 Ball Bearing
Ball Bearing
CO70900000400 Out of stock
Ball Bearing
£5.18 £4.32

  3 Oil Seal
Oil Seal
CO71000000600 Out of stock
Oil Seal
£2.52 £2.10

  4 Switch Assembly Oil Level
Switch Assembly Oil Level
CO93006000400 Out of stock
Switch Assembly Oil Level
£7.61 £6.34

  5 Bolt
Bolt
CO70100005400 Out of stock
Bolt
£1.26 £1.05

  6 Bolt Drain Plug
Bolt Drain Plug
CO70100007000 Out of stock
Bolt Drain Plug
£1.26 £1.05

  7 Washer Drain Plug
Washer Drain Plug
CO70600004300 Out of stock
Washer Drain Plug
£1.26 £1.05

  8 Dowel Pin Casecover
Dowel Pin Casecover
CO70400001001 Out of stock
Dowel Pin Casecover
£1.26 £1.05

  9 Piston
Piston
CO93005000100 Out of stock
Piston
£11.78 £9.82

  10 Scraper Ring Set Piston
Scraper Ring Set Piston
CO93005000200 Out of stock
Scraper Ring Set Piston
£8.36 £6.97

  11 Connecting Rod Assy
Connecting Rod Assy
CO93005000300 Out of stock
Connecting Rod Assy
£11.34 £9.45

  12 Pin Piston
Pin Piston
CO93005000400 Out of stock
Pin Piston
£2.52 £2.10

  13 Clip Piston
Clip Piston
CO93005000500 Out of stock
Clip Piston
£1.26 £1.05

  14 Cover Assembly Crankcase
Cover Assembly Crankcase
CO93005000600 Out of stock
Cover Assembly Crankcase
£25.67 £21.39

  15 Dipstick
Dipstick
CO93003000100 Out of stock
Dipstick
£1.26 £1.05

  16 Cylinder Head
Cylinder Head
CO93005000700 Out of stock
Cylinder Head
£45.28 £37.73

  17 Valve Intake
Valve Intake
CO93005000800 Out of stock
Valve Intake
£4.08 £3.40

  18 Valve Exhaust
Valve Exhaust
CO93005000900 Out of stock
Valve Exhaust
£4.08 £3.40

  19 Returner Intake Valve
Returner Intake Valve
CO93005001000 Out of stock
Returner Intake Valve
£2.52 £2.10

  20 Spring Valve
Spring Valve
CO93005001100 Out of stock
Spring Valve
£1.26 £1.05

  21 Seat Valve Spring In
Seat Valve Spring In
CO93005001200 Out of stock
Seat Valve Spring In
£2.52 £2.10

  22 Seat Valve Spring Ex
Seat Valve Spring Ex
CO93005001300 Out of stock
Seat Valve Spring Ex
£2.52 £2.10

  23 Plate Push Rod Guide
Plate Push Rod Guide
CO93005001400 Out of stock
Plate Push Rod Guide
£1.26 £1.05

  24 Rotator
Rotator
CO93005001500 Out of stock
Rotator
£2.52 £2.10

  25 Bolt Stud
Bolt Stud
CO70100006900 Out of stock
Bolt Stud
£1.26 £1.05

  26 Bolt Stud
Bolt Stud
CO70100005600 Out of stock
Bolt Stud
£2.52 £2.10

  27 Nut
Nut
CO70200002500 Out of stock
Nut
£1.26 £1.05

  28 Crankshaft Assy
Crankshaft Assy
CO93005001600 Out of stock
Crankshaft Assy
£45.89 £38.24

  29 Lifter Valve
Lifter Valve
CO93005001700 Out of stock
Lifter Valve
£1.87 £1.56

  30 Seal Crankcover
Seal Crankcover
CO93007001100 Out of stock
Seal Crankcover
£3.86 £3.22

  31 Camshaft Assy
Camshaft Assy
CO93005001800 Out of stock
Camshaft Assy
£25.67 £21.39

  33 Bolt
Bolt
CO70100006800 Out of stock
Bolt
£1.26 £1.05

  34 Gasket Cylinder Head
Gasket Cylinder Head
CO93007000200 Out of stock
Gasket Cylinder Head
£3.42 £2.85

  35 Bolt
Bolt
CO70100004400 Out of stock
Bolt
£1.26 £1.05

  37 Rod Push
Rod Push
CO93005001900 Out of stock
Rod Push
£1.26 £1.05

  39 Packing Headcover
Packing Headcover
CO93007000300 Out of stock
Packing Headcover
£1.26 £1.05

  40 Cover Comp Cylinder Head
Cover Comp Cylinder Head
CO93005002000 Out of stock
Cover Comp Cylinder Head
£5.06 £4.22

  41 Nut
Nut
CO70200001800 Out of stock
Nut
£2.52 £2.10

  42 Start Grille Combination
Start Grille Combination
CO93005002100 Out of stock
Start Grille Combination
£26.96 £22.47

  43 Gasket Intake
Gasket Intake
CO93007000400 Out of stock
Gasket Intake
£1.26 £1.05

  44 Gasket Carburetor
Gasket Carburetor
CO93007000500 Out of stock
Gasket Carburetor
£1.26 £1.05

  45 Gasket Exhaust
Gasket Exhaust
CO93007000600 Out of stock
Gasket Exhaust
£1.26 £1.05

  46 Nut
Nut
CO70200002400 Out of stock
Nut
£1.26 £1.05

  47 Spring Washer
Spring Washer
CO70600001700 Out of stock
Spring Washer
£1.26 £1.05

  48 Rocker
Rocker
CO93005002200 Out of stock
Rocker
£2.52 £2.10

  49 Rocker Fastening Bolt Assembly
Rocker Fastening Bolt Assembly
CO70100006600 Out of stock
Rocker Fastening Bolt Assembly
£1.54 £1.28

  50 Fan Recoil Starter
Fan Recoil Starter
CO93003000200 Out of stock
Fan Recoil Starter
£3.97 £3.31

  51 Starting Cup
Starting Cup
CO93005002300 Out of stock
Starting Cup
£4.51 £3.76

  52 Ignition Trigger Block
Ignition Trigger Block
CO93005002400 Out of stock
Ignition Trigger Block
£2.52 £2.10

  53 Trigger
Trigger
CO93006000300 Out of stock
Trigger
£9.16 £7.63

  55 4 Spring Washers
4 Spring Washers
CO70600002200 Out of stock
4 Spring Washers
£1.26 £1.05

  56 Cylinder Head Wind Shield
Cylinder Head Wind Shield
CO93005002500 Out of stock
Cylinder Head Wind Shield
£27.19 £22.66

  57 Under The Cylinder Head Cover
Under The Cylinder Head Cover
CO93005002600 Out of stock
Under The Cylinder Head Cover
£14.42 £12.02

  58 Ignitor
Ignitor
CO93006000200 Out of stock
Ignitor
£25.67 £21.39

  59 Ignitor Support Plate
Ignitor Support Plate
CO93005002700 Out of stock
Ignitor Support Plate
£5.84 £4.87

  60 Clamper Cord
Clamper Cord
CO93005002800 Out of stock
Clamper Cord
£1.26 £1.05

  61 Muffler Assy
Muffler Assy
CO93005002900 Out of stock
Muffler Assy
£44.21 £36.84

  62 The Centrifugal Fan
The Centrifugal Fan
CO93003000300 Out of stock
The Centrifugal Fan
£20.64 £17.20

  63 Carburetor Assy
Carburetor Assy
CO93005003000 Out of stock
Carburetor Assy
£37.01 £30.84

  64 Stepper Motor
Stepper Motor
CO97006000700 Out of stock
Stepper Motor
£14.66 £12.22

  65 Stepper Motor Seat
Stepper Motor Seat
CO93003000400 Out of stock
Stepper Motor Seat
£2.52 £2.10

  66 Cross Recessed Pan Head Screws
Cross Recessed Pan Head Screws
CO70300004500 Out of stock
Cross Recessed Pan Head Screws
£1.26 £1.05

  67 Stepper Motor Protective Cover
Stepper Motor Protective Cover
CO93003000500 Out of stock
Stepper Motor Protective Cover
£2.52 £2.10

  68 Air Filter Holder
Air Filter Holder
CO93005003100 Out of stock
Air Filter Holder
£7.03 £5.86

  69 Air Cleaner Assy
Air Cleaner Assy
CO93003000600 Out of stock
Air Cleaner Assy
£21.82 £18.18

  70 The Air Filter Adapter
The Air Filter Adapter
CO93003000700 Out of stock
The Air Filter Adapter
£3.08 £2.57

  71 Connector Plug On The Air Filter
Connector Plug On The Air Filter
CO93004000100 Out of stock
Connector Plug On The Air Filter
£3.08 £2.57

  72 S Joint Pipe
S Joint Pipe
CO93004000200 Out of stock
S Joint Pipe
£2.52 £2.10

  73 Hexagon Flange Nuts
Hexagon Flange Nuts
CO70200000900 Out of stock
Hexagon Flange Nuts
£1.26 £1.05

  74 Damper
Damper
CO63014000400 Out of stock
Damper
£3.30 £2.75

  75 Tube Breather
Tube Breather
CO93004000300 Out of stock
Tube Breather
£2.52 £2.10

  76 Clip
Clip
CO93005003400 Out of stock
Clip
£1.26 £1.05

  77 Fuel Pipe
Fuel Pipe
CO63014000300 Out of stock
Fuel Pipe
£2.65 £2.21

  78 Clip Fuel Line
Clip Fuel Line
CO61015001400 Out of stock
Clip Fuel Line
£1.26 £1.05

  79 Clip Fuel Line
Clip Fuel Line
CO61015001600 Out of stock
Clip Fuel Line
£1.26 £1.05

  80 Ignition Coil Assy
Ignition Coil Assy
CO63016001400 Out of stock
Ignition Coil Assy
£18.46 £15.38

  81 Bolt
Bolt
CO70100006700 Out of stock
Bolt
£1.26 £1.05

  82 Muffer Inner Cover
Muffer Inner Cover
CO63015001600 Out of stock
Muffer Inner Cover
£51.55 £42.96

  83 Rear Wind Guide Cover
Rear Wind Guide Cover
CO93003000900 Out of stock
Rear Wind Guide Cover
£2.52 £2.10

  84 Engine Assembly Left Plate
Engine Assembly Left Plate
CO63015001700 Out of stock
Engine Assembly Left Plate
£10.44 £8.70

  85 Engine Assembly Right Plate
Engine Assembly Right Plate
CO63015001800 Out of stock
Engine Assembly Right Plate
£10.44 £8.70

  86 Bolts Flange M6×35
Bolts Flange M6×35
CO70100004700 Out of stock
Bolts Flange M6×35
£1.26 £1.05

  87 Carburetor Spacer
Carburetor Spacer
CO93003001200 Out of stock
Carburetor Spacer
£1.26 £1.05

  88 Rotor Magneto
Rotor Magneto
CO63081000200 Out of stock
Rotor Magneto
£73.92 £61.60

  89 Inner Hexagon Screw
Inner Hexagon Screw
CO70300005600 Out of stock
Inner Hexagon Screw
£1.26 £1.05

  90 Stator Magneto
Stator Magneto
CO63171000100 Out of stock
Stator Magneto
£111.72 £93.10

  91 Dowel
Dowel
CO70400001101 Out of stock
Dowel
£1.26 £1.05

  92 Bolts Flange M6×20
Bolts Flange M6×20
CO70100001100 Out of stock
Bolts Flange M6×20
£1.26 £1.05

  94 Silencer Housings Muffer Outer Cover
Silencer Housings Muffer Outer Cover
CO63013000400 Out of stock
Silencer Housings Muffer Outer Cover
£39.65 £33.04

  95 Bolts Flange M6×12
Bolts Flange M6×12
CO70100000200 Out of stock
Bolts Flange M6×12
£1.26 £1.05

  96 Bolt M6×12
Bolt M6×12
CO70100006000 Out of stock
Bolt M6×12
£1.26 £1.05

  97 Choke Arm Stopper Sleeve
Choke Arm Stopper Sleeve
CO93005003200 Out of stock
Choke Arm Stopper Sleeve
£1.26 £1.05

  98 Throttle Switch Mechanism
Throttle Switch Mechanism
CO93003000800 Out of stock
Throttle Switch Mechanism
£2.75 £2.29

  99 Air Filter Element
Air Filter Element
CO93007000100 Out of stock
Air Filter Element
£3.16 £2.63
