Cobra DG600 - Engine Main Diagram

Name: Cobra DG600 - Engine Main Diagram
SKU: dg600_engine_main-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

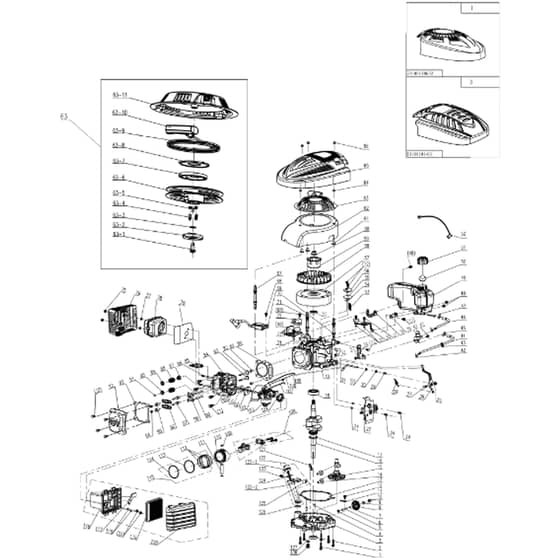

Cobra DG600 Engine Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO26800610001	Hex Flange Bolt M8*50	Out of stock	£2.52 £2.10
2	CO25100129601	Skeleton Oil Sealer	Out of stock	£7.64 £6.37
3	CO26400104201	Tank Cover	Out of stock	£46.42 £38.68
4	CO26809001601	Position Fixed Pin B8X14 Of Combination Box	Out of stock	£2.52 £2.10
5	CO26800702101	Flat Washer	Out of stock	£2.52 £2.10
6	CO26900104402	Speed Adjustment Gear Shaft	Out of stock	£2.52 £2.10
7	CO26800900701	Shaft Steel Wire Block Ring	Out of stock	£2.52 £2.10
8	CO23057001301	Speed Adjustment Gear Ass'Y	Out of stock	£3.84 £3.20
9	CO26800703201	Flat Washer 6Φ6X15X05	Out of stock	£2.52 £2.10
10	CO25100121601	Slide Bush	Out of stock	£2.52 £2.10
11	CO26300205101	Single Hole Pressing Board	Out of stock	£2.52 £2.10
12	CO26800604101	Hex Flange Bolt M5X20	Out of stock	£2.52 £2.10
13	CO25600100801	Combinatio Box Sealing Washer	Out of stock	£7.39 £6.16
14	CO26300213301	Column	Out of stock	£2.52 £2.10
15	CO23055000701	Camshaft Ass'Y	Out of stock	£22.93 £19.11
16	CO23053001901	Crankshaft Ass'Y	Out of stock	£38.39 £31.99
17	CO26800703102	Washer 36X252X1	Out of stock	£2.52 £2.10
18	CO26800400202	Rolling Bearing	Out of stock	£10.08 £8.40
19	CO26400104301	Tank	Out of stock	£64.80 £54.00
20	CO25100129901	Skeleton Oil Sealer	Out of stock	£6.53 £5.44
21	CO26900103201	Sheath 1	Out of stock	£2.52 £2.10
22	CO23057001502	Speed Adjustment Ass'Y	Out of stock	£6.18 £5.15
23	CO26800607601	Hex Flange Bolt M6X30	Out of stock	£2.52 £2.10
24	CO26800608701	Hex Flange Bolt M6X32	Out of stock	£2.52 £2.10
25	CO26800501901	Hex Flange Bolt M6	Out of stock	£1.26 £1.05
26	CO26300214601	Speed Adjustment Rocker	Out of stock	£2.52 £2.10
27	CO26800301101	Speed Adjustment Screw	Out of stock	£2.52 £2.10
28	CO26801106801	Speed Adjustment Spring	In stock	£2.52 £2.10
29	CO26900103401	Spring Open Pin	Out of stock	£2.52 £2.10
30	CO25100123501	Oil Sealer 6X11X4	Out of stock	£2.52 £2.10
31	CO26300122201	Speed Adjustment Swing Pole	Out of stock	£2.52 £2.10
32	CO25100130702	Aeration Pipe	Out of stock	£2.75 £2.29
33	CO26800500501	Hexagonal Locking Bolt	Out of stock	£2.52 £2.10
34	CO26300211901	Switch Bracket	Out of stock	£2.52 £2.10
35	CO26800702301	Washer Sheath	Out of stock	£2.52 £2.10
36	CO26300212002	Oil Crank Bracket	Out of stock	£3.55 £2.96
37	CO26800608001	Hex Flange Bolt M6X16	Out of stock	£2.52 £2.10
38	CO26300212101	Right Gasoline Tank Bracket	Out of stock	£2.52 £2.10
39	CO26300212201	Left Gasoline Tank Bracket	Out of stock	£2.52 £2.10
40	CO23054000902	Switch Ass'Y	Out of stock	£3.61 £3.01
41	CO26800201801	Cross Head Column Screw	Out of stock	£2.52 £2.10
42	CO26900108001	Oil Tube Clip B	Out of stock	£2.52 £2.10
43	CO26300206401	Oil Tube Clip	Out of stock	£2.52 £2.10
44	CO25100130101	Inlet Oil Tube1	Out of stock	£6.28 £5.23
45	CO26900107901	Oil Tube Clip A	Out of stock	£2.52 £2.10
46	CO25100130401	Inlet Oil Tube 2	Out of stock	£6.28 £5.23
47	CO25100131401	Fuel Filter Net	Out of stock	£2.52 £2.10
48	CO26800608301	Hexagonal Flange Bolt M6X20	Out of stock	£2.52 £2.10
49	CO25800100303	Oil Tank	Out of stock	£20.16 £16.80
50	CO25100124501	Tank Cover Sealing Washer	Out of stock	£2.52 £2.10
51	CO25100128103	Tank Cover	Out of stock	£4.39 £3.66
52	CO23058000402	Flameout Wire Ass'Y	Out of stock	£2.52 £2.10
53	CO26900102001	Filter Net	Out of stock	£2.52 £2.10
54	CO25100129701	Breathing Vavle Plate	Out of stock	£2.52 £2.10
55	CO25100129801	Breathing Sealing Washer	Out of stock	£2.52 £2.10
56	CO23052001201	Breathing Cover	Out of stock	£2.52 £2.10
57	CO23061000401	Aluminum Fly Wheel	Out of stock	£38.77 £32.31
58	CO25100128601	Fan	Out of stock	£14.59 £12.16
59	CO26900106801	Passive Tray	Out of stock	£5.06 £4.22
60	CO26800502701	Hex Flange Bolt M14*15	Out of stock	£2.52 £2.10
61	CO26300211601	Wind-Guiding Cover Sheath	Out of stock	£2.52 £2.10
62	CO25100128302	Wind-Guiding Cover	Out of stock	£8.99 £7.49
63	CO23052002801	Starter Ass'Y	In stock	£23.38 £19.48
64	CO26800502201	Hex Nut Gb/T6170-200	Out of stock	£2.52 £2.10
65	CO23100101401	3# Engine Cover（Silvery）	Out of stock	£18.37 £15.31
66	CO26800501603	Lid Shape Nut M6	Out of stock	£1.26 £1.05
67	CO26800617901	Screw Bolt A	Out of stock	£2.52 £2.10
68	CO26800607801	Flange Bolt M6X20	Out of stock	£2.52 £2.10
69	CO23062000801	Ignation Ass'Y	Out of stock	£25.28 £21.07
70	CO26800618001	Screw Bolt C	Out of stock	£2.52 £2.10
71	CO26800617701	Screw Bolt B	Out of stock	£2.52 £2.10
72	CO23058000202	Frameout Switch Ass'Y	Out of stock	£5.65 £4.71
73	CO23058001401	Brake Controller Ass'Y	Out of stock	£10.31 £8.59
74	CO26800703001	Washer Sheath	Out of stock	£2.52 £2.10
75	CO26800502401	Metal Hexagonal Flange Locking Bolt M6	Out of stock	£1.26 £1.05
76	CO23060000501	Muffler Sheath Ass'Y	Out of stock	£7.84 £6.53
77	CO25100130601	Muffler Heat Insulation Washer	Out of stock	£2.52 £2.10
78	CO23060000401	Muffler Ass'Y	Out of stock	£22.18 £18.48
79	CO25600100101	Muffler Sealing Washer	Out of stock	£4.14 £3.45
80	CO25600100701	Cylinder Head Sealing Washer	Out of stock	£7.78 £6.48
81	CO26809001501	Cylinder Head Position Fixing Pin	Out of stock	£2.52 £2.10
82	CO26300213102	Intake Valve	Out of stock	£5.93 £4.94
83	CO26300213202	Exhaust Valve	Out of stock	£8.29 £6.91
84	CO26400102201	Cylinder Head Ass'Y	Out of stock	£39.17 £32.64
85	2688	Spark Plug F7Rtc	In stock	£2.38 £1.98
86	CO26800605601	Screwbolt M6*92	Out of stock	£1.26 £1.05
87	CO26300207401	Oil Retaining Cover	Out of stock	£2.52 £2.10
88	CO26801109801	Value Spring	Out of stock	£2.52 £2.10
89	CO26900102401	Airinnet Spring Seat	Out of stock	£2.52 £2.10
90	CO26900102501	Airoutlet Spring Seat	Out of stock	£2.52 £2.10
91	CO26400100801	Top Cat	Out of stock	£2.52 £2.10
92	CO25100123701	Cylinder Head Cover Sealing Washer	Out of stock	£2.52 £2.10
93	CO26300207001	Cylinder Cover	Out of stock	£2.99 £2.49
94	CO26800502601	Valve Locking Nut	Out of stock	£2.52 £2.10
95	CO26800502501	Adjustment Nut	Out of stock	£2.52 £2.10
96	CO26300214201	Valve Spring Rocker	Out of stock	£2.52 £2.10
97	CO26800605401	Adjustment Bolt	Out of stock	£2.52 £2.10
98	CO26300213501	Pushing Rod Guidebar	Out of stock	£9.43 £7.86
99	CO26300213401	Pushing Rod Ass'Y	Out of stock	£2.52 £2.10

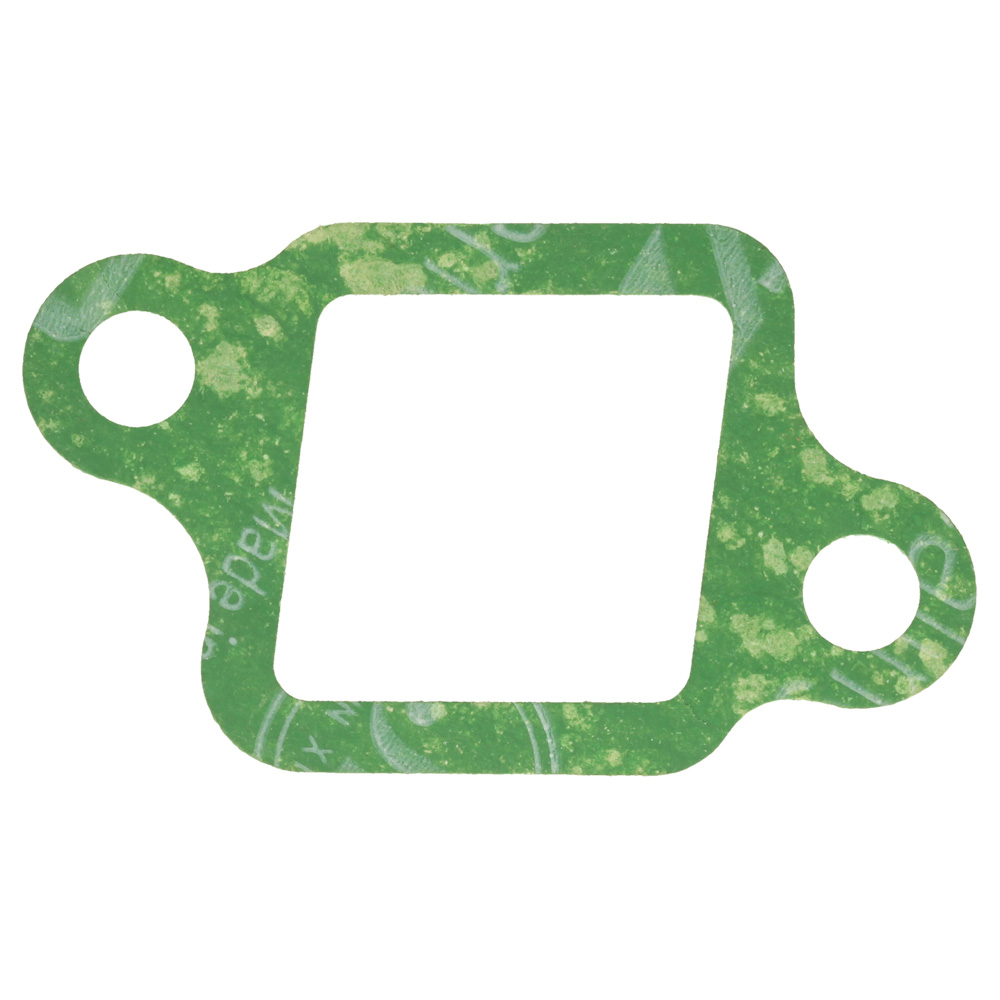

100	CO25100131101	Cylinder Head And Air Innet Pipe Sealing Washer	Out of stock	£2.52 £2.10
101	CO25100121201	Air Innet Pipe	Out of stock	£2.52 £2.10

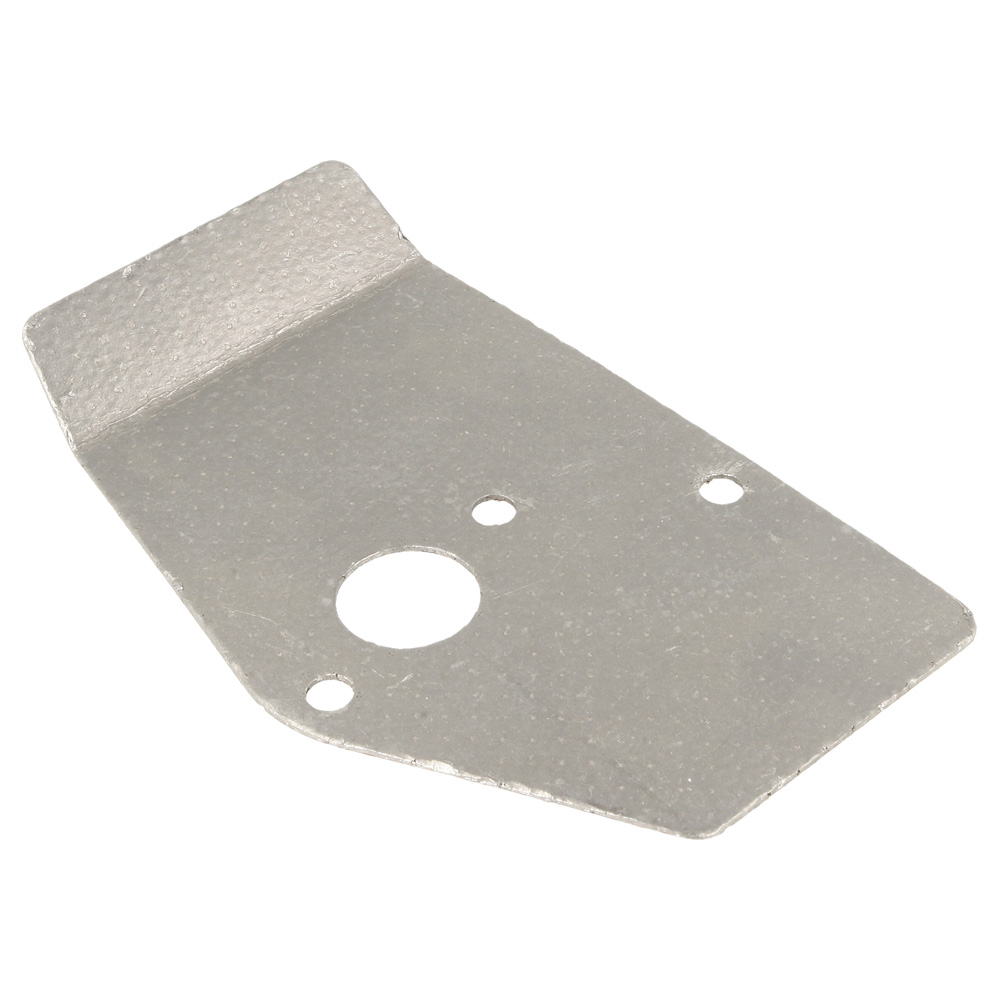

102	CO25100130901	Airinnet Pipe And Carburetor Sealing Washer	Out of stock	£3.00 £2.50
103	CO23056001601	Carburetor Ass'Y	Out of stock	£45.76 £38.13
104	CO25600100301	Empty Filer Sealing Washer	In stock	£2.52 £2.10
105	CO26900108801	Valve Rod	Out of stock	£2.52 £2.10
106	CO26801106601	Accelerograph Spring	Out of stock	£2.52 £2.10
107	CO26900108201	Choke Valve Push Rod	Out of stock	£2.52 £2.10
108	CO23054000701	Connecting Rod Ass'Y	Out of stock	£16.49 £13.74
109	CO26900106301	Piston Pin Spring	Out of stock	£2.52 £2.10
110	CO26400102501	Piston	Out of stock	£17.35 £14.46
111	CO26900106201	Piston Pin	Out of stock	£3.30 £2.75
115	CO23054000501	Piston Ring Assembly	Out of stock	£11.56 £9.63
116	CO25100128401	Air Filter Base	Out of stock	£6.11 £5.09
117	CO25100129001	Air Filter Inner Cover	Out of stock	£2.52 £2.10
118	CO26300211501	Air Filter Sheath	Out of stock	£2.52 £2.10
119	CO25100131601	Filter Core Ass'Y	In stock	£7.78 £6.48
120	CO25100128502	Air Filter Upper Cover	Out of stock	£4.39 £3.66
121	CO25100129501	Rubber Washer	Out of stock	£2.52 £2.10
123	CO26800608201	Hex Flange Bolt M6X50	Out of stock	£2.52 £2.10
124	CO25100134501	O Type Ring 25X29	Out of stock	£2.52 £2.10
125	CO25100202201	Spacer	Out of stock	£2.52 £2.10
126	CO25100123202	O Type Ring 20X24	Out of stock	£2.52 £2.10
127	CO26300205601	Drain Plug	Out of stock	£2.52 £2.10
128	CO26300225901	Drain Plug Washer	Out of stock	£2.52 £2.10
1221	CO25236000101	122-1 Oil Dipstick	Out of stock	£3.64 £3.03
1222	CO25236100101	122-2 Oil Adding Pipe	Out of stock	£2.52 £2.10
