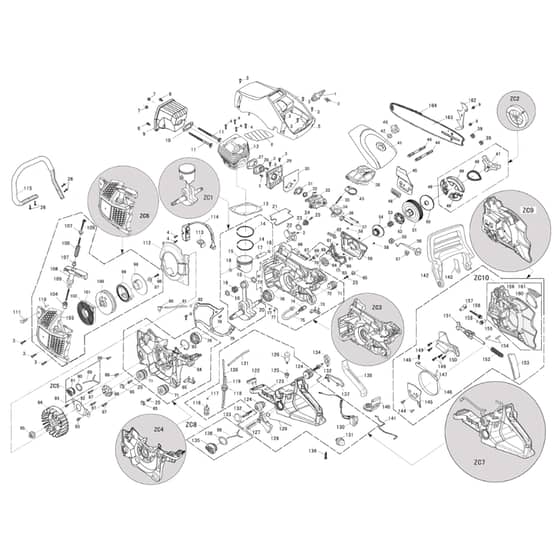

Cobra CS620 - Chainsaw Aug 2016 Main Diagram

Ref. Img. Part No. Details
  1 ZC1 Crankshaft Connecting Rod Piston Combination COYD6150.7-14000
ZC1 Crankshaft Connecting Rod Piston Combination
Out of stock
£36.76 £30.63

  1 Spark Plug Ngk 9411
Spark Plug Ngk
In stock
£3.36 £2.80

  2 ZC2 Clutch Active Plate Assy COYD4500-22110
ZC2 Clutch Active Plate Assy
Out of stock
£15.73 £13.11

  3 Screw M5*14 COYD4500-90023
Screw M5*14
Out of stock
£2.52 £2.10

  5 ZC5 Oil Cap Assy COYD3800-17110
ZC5 Oil Cap Assy
Out of stock
£3.64 £3.03

  5 Up Cover COYD4600.8-15201
Up Cover
Out of stock
£10.50 £8.75

  6 Insulation Mat COYD4600.11-18002
Insulation Mat
Out of stock
£2.52 £2.10

  6 ZC6 Starter Assy COYD4600.11-25000
ZC6 Starter Assy
Out of stock
£20.77 £17.31

  7 ZC7 Fuel Tank COYD4500.11-18299
ZC7 Fuel Tank
Out of stock
£32.72 £27.27

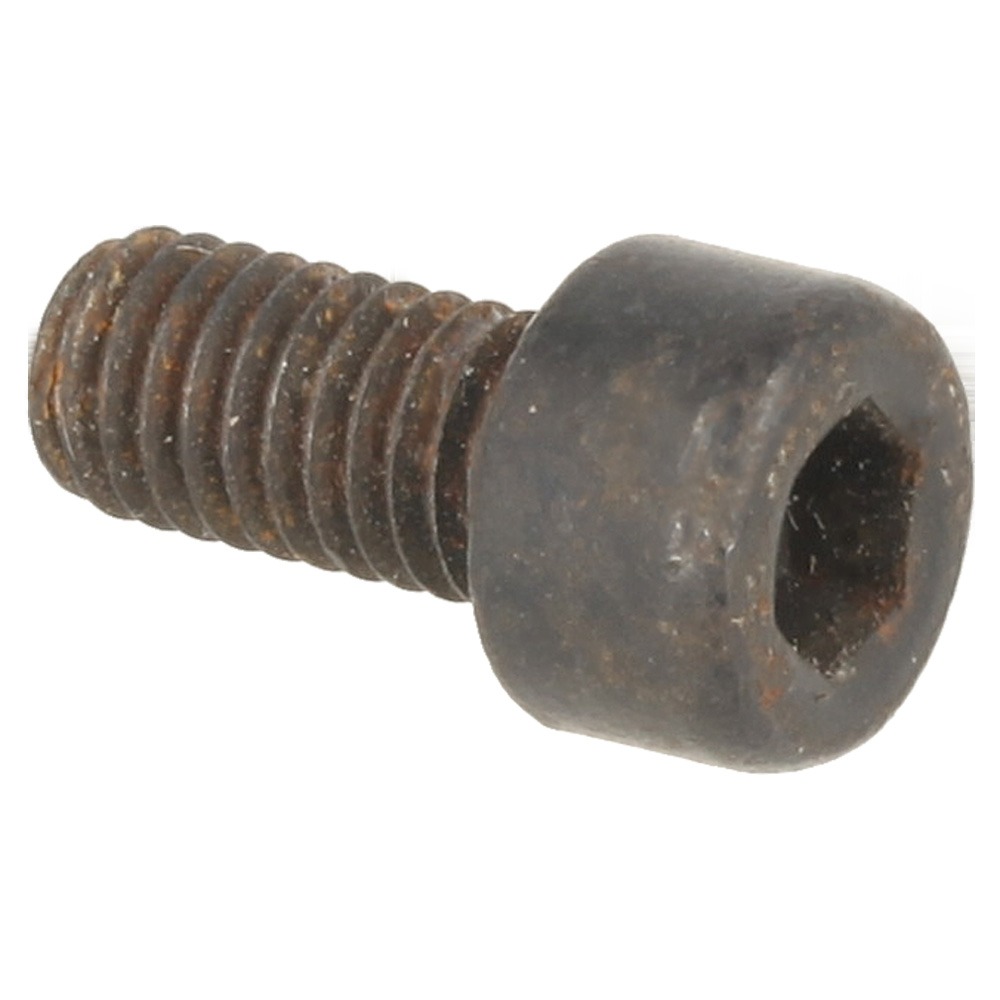

  8 Screw M5*10 COYD3800-90021
Screw M5*10
Out of stock
£1.26 £1.05

  8 ZC8 Fuel Flap Assy COYD3800.7-18030
ZC8 Fuel Flap Assy
Out of stock
£3.64 £3.03

  9 Muffler Assy COYD6150.11-21120
Muffler Assy
Out of stock
£10.50 £8.75

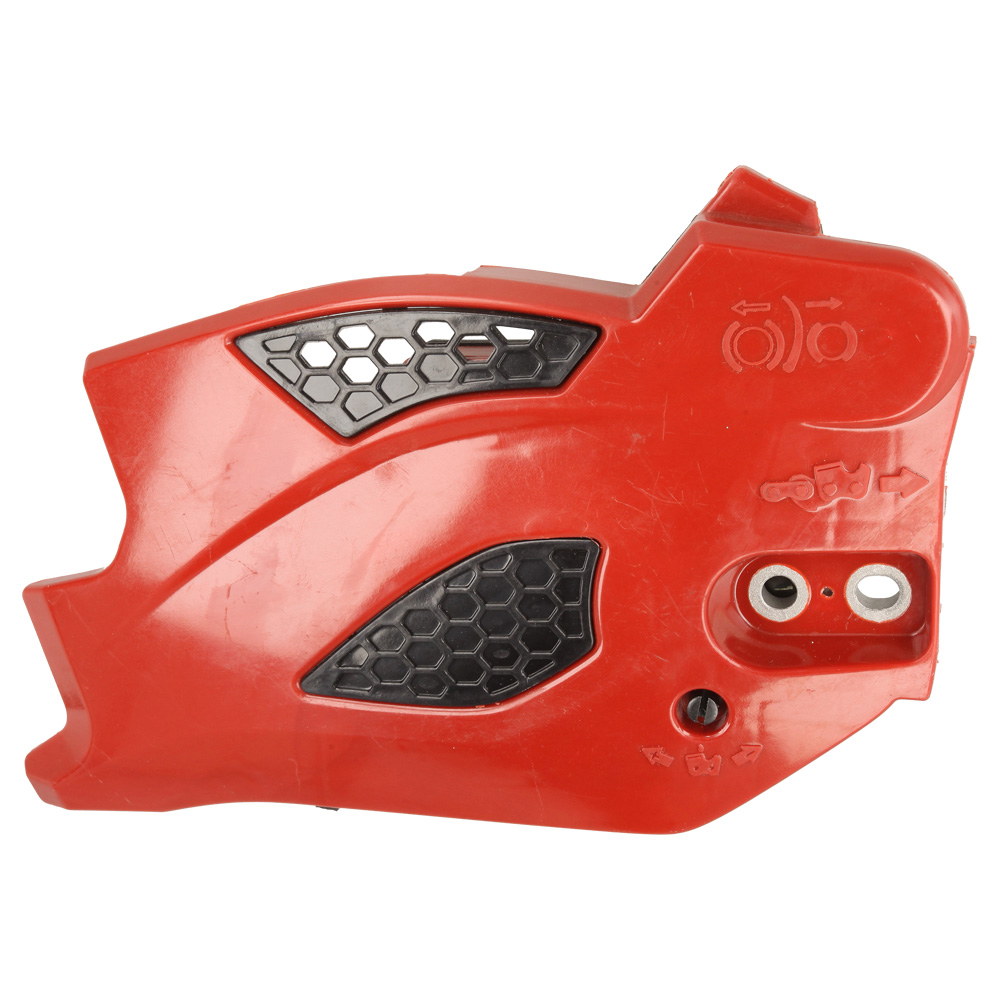

  9 ZC9 Brake Assy COYD4600.12-25000
ZC9 Brake Assy
Out of stock
£24.55 £20.46

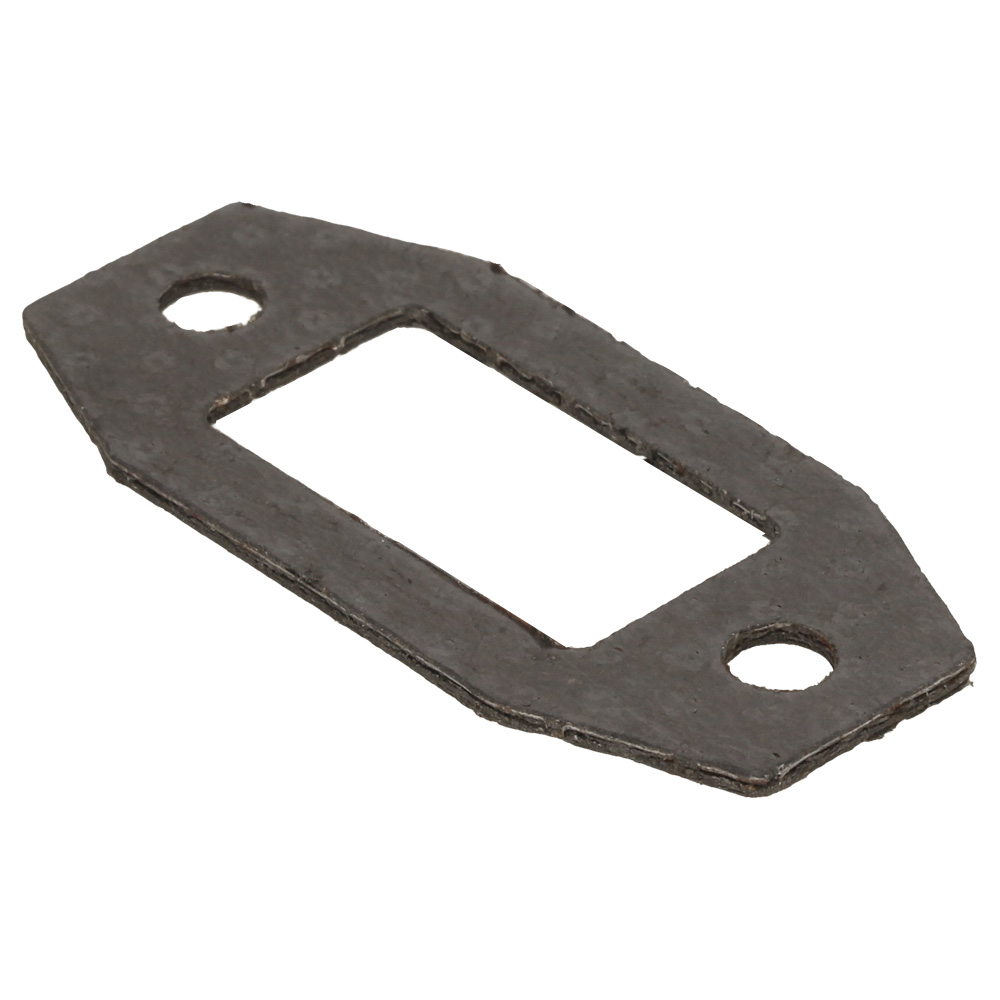

  10 Muffler Gasket COYD4500-21001
Muffler Gasket
Out of stock
£2.52 £2.10

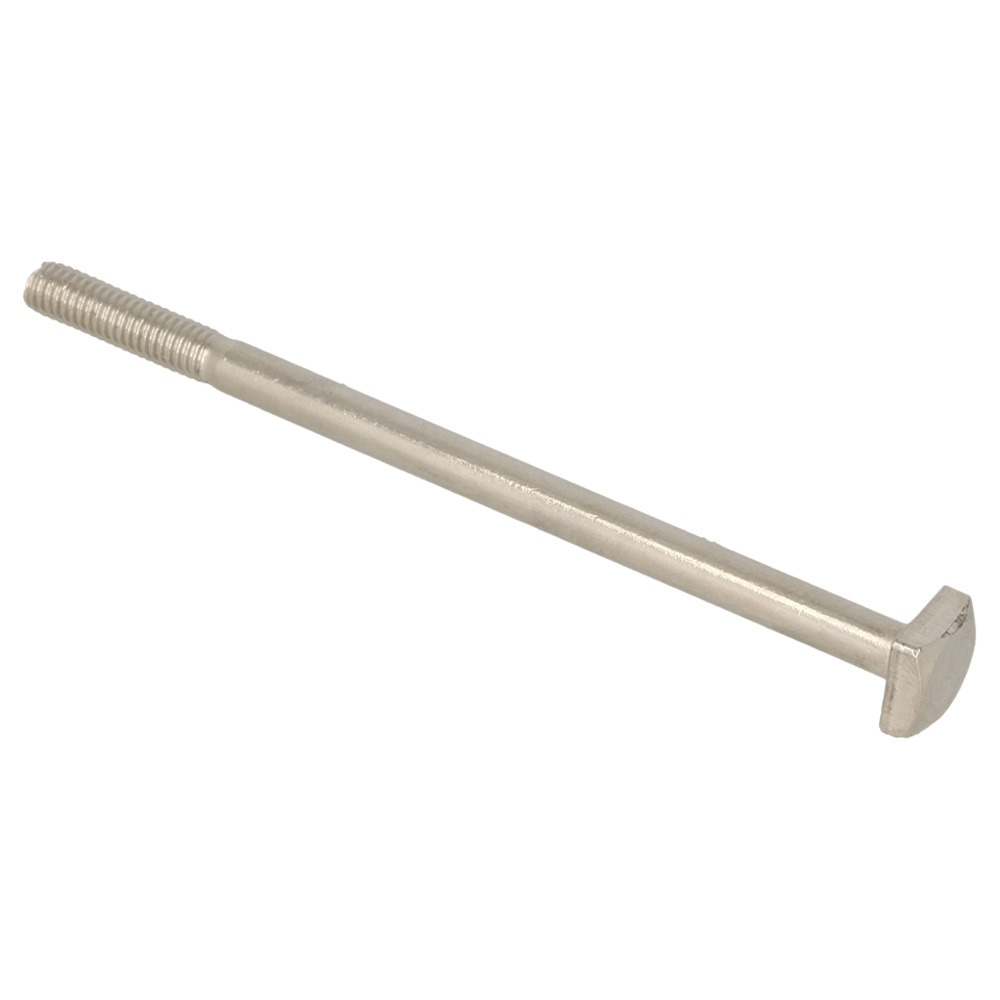

  11 Muffler Connect Screw M5*84 COYD4600.8-21002
Muffler Connect Screw M5*84
Out of stock
£1.26 £1.05

  12 Cylinder COYD6150.11-12111
Cylinder
Out of stock
£31.48 £26.23

  13 Cylinder Gasket COYD5800.7-12501
Cylinder Gasket
Out of stock
£2.52 £2.10

  14 Piston Ring COYD6150-14311
Piston Ring
Out of stock
£2.52 £2.10

  19 Needle Bearing K11×15×125 COYD4500-96126
Needle Bearing K11×15×125
Out of stock
£3.95 £3.29

  25 Screw St48*16 COYD2500-91333
Screw St48*16
Out of stock
£2.52 £2.10

  28 Boot In-Take COYD4500-16111
Boot In-Take
Out of stock
£3.13 £2.61

  29 Boot In-Take Support COYD4500-16121
Boot In-Take Support
Out of stock
£4.20 £3.50

  30 Boot In-Take Support Gasket COYD4500-16132
Boot In-Take Support Gasket
Out of stock
£2.52 £2.10

  31 In-Take Flange COYD4500-16131
In-Take Flange
Out of stock
£2.52 £2.10

  32 Keep Ring COYD4500-16002
Keep Ring
Out of stock
£2.52 £2.10

  33 Carburetor Assy Wt1004 COYD4500-18200
Carburetor Assy Wt1004
Out of stock
£34.63 £28.86

  34 Intake Tube COYD4500-16141
Intake Tube
Out of stock
£2.52 £2.10

  35 Studs M5*37 COYD4500-16141.2
Studs M5*37
Out of stock
£2.52 £2.10

  37 Carburetor Screw M5*50 COYD4500-90029
Carburetor Screw M5*50
Out of stock
£1.26 £1.05

  38 Air Filter COYD4500-16211
Air Filter
Out of stock
£5.65 £4.71

  39 Nut M8 COYD2500-92101
Nut M8
Out of stock
£1.26 £1.05

  40 Locking Net COYD3800-16302A
Locking Net
Out of stock
£2.52 £2.10

  41 Air Filter Cover COYD4600.8-16301
Air Filter Cover
Out of stock
£5.65 £4.71

  42 Washer COYD4500-16310
Washer
Out of stock
£2.52 £2.10

  43 Gasket COYD4600.8-16211.4
Gasket
Out of stock
£2.52 £2.10

  44 Studs M8*42 COYD4500-12128
Studs M8*42
Out of stock
£2.52 £2.10

  45 Cover Plate COYD4500.7A-22931
Cover Plate
Out of stock
£2.52 £2.10

  50 Clutch Gasket COYD4500-22101
Clutch Gasket
Out of stock
£2.52 £2.10

  51 Clutch Driven Plate COYD4500-22121
Clutch Driven Plate
Out of stock
£11.95 £9.96

  52 Sprocket COYD4600.8-22050
Sprocket
Out of stock
£2.52 £2.10

  53 Clutch Needle Bearingk12×15×14 COYD4500-96115
Clutch Needle Bearingk12×15×14
Out of stock
£2.52 £2.10

  54 Worm COYD4500-17001
Worm
Out of stock
£2.52 £2.10

  55 Throttle Sleeve COYD4500-24112
Throttle Sleeve
Out of stock
£2.52 £2.10

  56 Throttle COYD4500-24111
Throttle
Out of stock
£3.13 £2.61

  57 Throttle Damping COYD4500-24113
Throttle Damping
Out of stock
£2.52 £2.10

  60 Oil Pump Assy COYD4500-17200A
Oil Pump Assy
Out of stock
£10.69 £8.91

  65 Small Dust Cover COYD3800-27112
Small Dust Cover
Out of stock
£2.52 £2.10

  71 Short Damper COYD4500-27111
Short Damper
Out of stock
£2.52 £2.10

  73 Right Damper COYD4500-13105
Right Damper
Out of stock
£2.52 £2.10

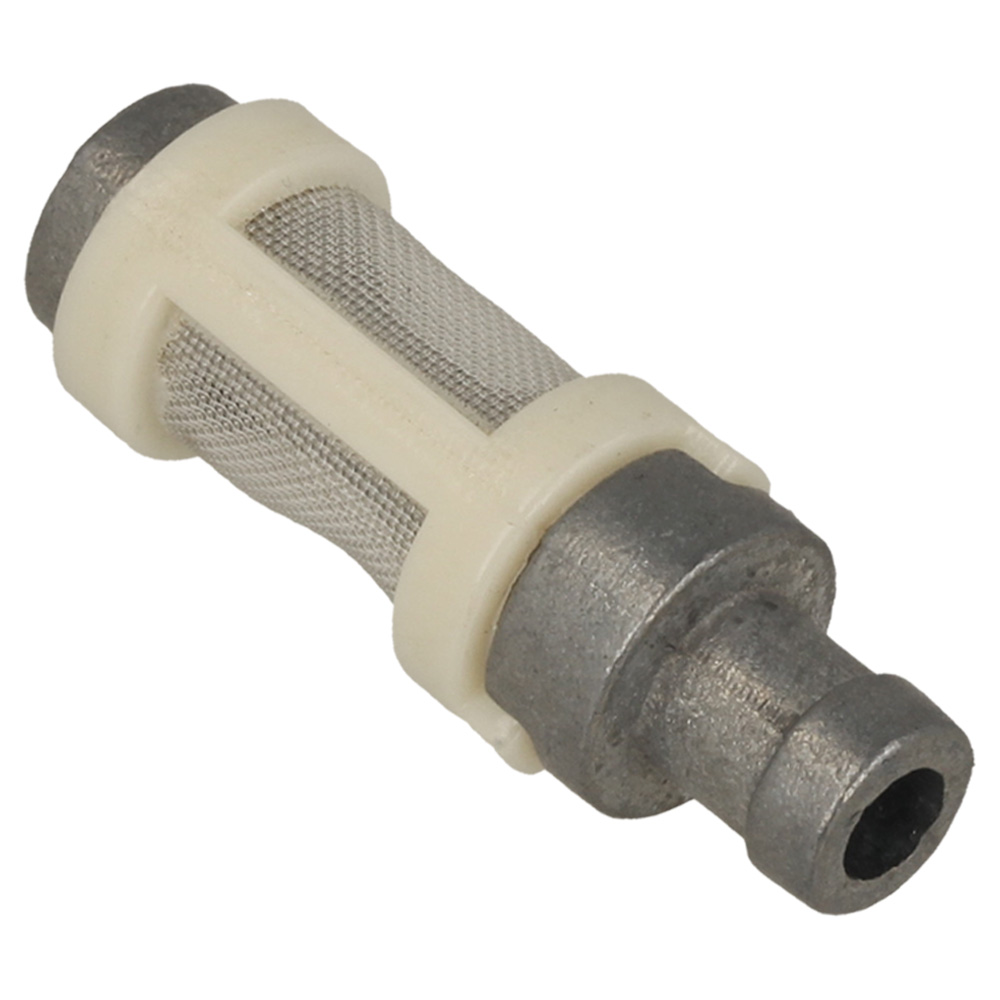

  74 Oil Filter COYD4500-17124
Oil Filter
Out of stock
£2.52 £2.10

  75 Inlet Pipe COYD4500-17128
Inlet Pipe
Out of stock
£2.52 £2.10

  76 Bearing 6202 COYD2500-96013
Bearing 6202
Out of stock
£2.52 £2.10

  78 Woodruff Key 3×37×10 COYD2500-94601
Woodruff Key 3×37×10
Out of stock
£2.52 £2.10

  79 Crankcase Gasket COYD4500-13090A
Crankcase Gasket
Out of stock
£2.52 £2.10

  80 Suction Mouth COYD4500-18021
Suction Mouth
Out of stock
£2.52 £2.10

  81 Negative Pressure Tube COYD4500-18022
Negative Pressure Tube
Out of stock
£2.52 £2.10

  82 Spring (Φ57) COYD4500-18023
Spring (Φ57)
Out of stock
£2.52 £2.10

  85 Left Damper COYD4500-13203
Left Damper
Out of stock
£2.52 £2.10

  87 Screw M5*30 COYD4500-90025
Screw M5*30
Out of stock
£1.26 £1.05

  88 Screw M5*25 COYD4500-90026
Screw M5*25
Out of stock
£2.52 £2.10

  92 Oil Seal Baffle COYD4500-13801
Oil Seal Baffle
Out of stock
£2.52 £2.10

  94 Flywheel COYD4600.GF-15110
Flywheel
Out of stock
£10.36 £8.63

  95 Nut M8*1 COYD2500-92102
Nut M8*1
Out of stock
£2.52 £2.10

  96 Screw St48*12 COGC305.3B-91337
Screw St48*12
Out of stock
£2.52 £2.10

  111 Screwm5*18 COYD6200-25288
Screwm5*18
Out of stock
£1.26 £1.05

  112 Dome COYD4600.8-15120
Dome
Out of stock
£4.20 £3.50

  114 Igniter Assy COYD4500-26110
Igniter Assy
Out of stock
£18.25 £15.21

  116 Fuel Filter COYD4500-18103
Fuel Filter
Out of stock
£2.52 £2.10

  117 Circlip COYD4500-18102
Circlip
Out of stock
£2.52 £2.10

  118 Fuel Pipe Support COYD3800-18104
Fuel Pipe Support
Out of stock
£2.52 £2.10

  119 Return Pipe (Φ25Χφ45) COYD3800-18432A
Return Pipe (Φ25Χφ45)
Out of stock
£2.52 £2.10

  120 Fuel Pipe COYD3800-18101A
Fuel Pipe
Out of stock
£2.52 £2.10

  121 Tubing COYD3800-18431
Tubing
Out of stock
£2.52 £2.10

  124 Long Damper Support COYD3800-27211
Long Damper Support
Out of stock
£3.13 £2.61

  125 Balancer Body Support COYD3800-18001
Balancer Body Support
Out of stock
£2.52 £2.10

  126 Balancer Body Assy COYD3800-18010
Balancer Body Assy
Out of stock
£2.52 £2.10

  127 Trigger Pin 6×25 COYD4500-94104A
Trigger Pin 6×25
Out of stock
£2.52 £2.10

  128 Trigger COYD4600.7-24211
Trigger
Out of stock
£2.52 £2.10

  129 Trigger Spring COYD3800-24212
Trigger Spring
Out of stock
£2.52 £2.10

  130 Switch COYD4500-26210B
Switch
Out of stock
£2.40 £2.00

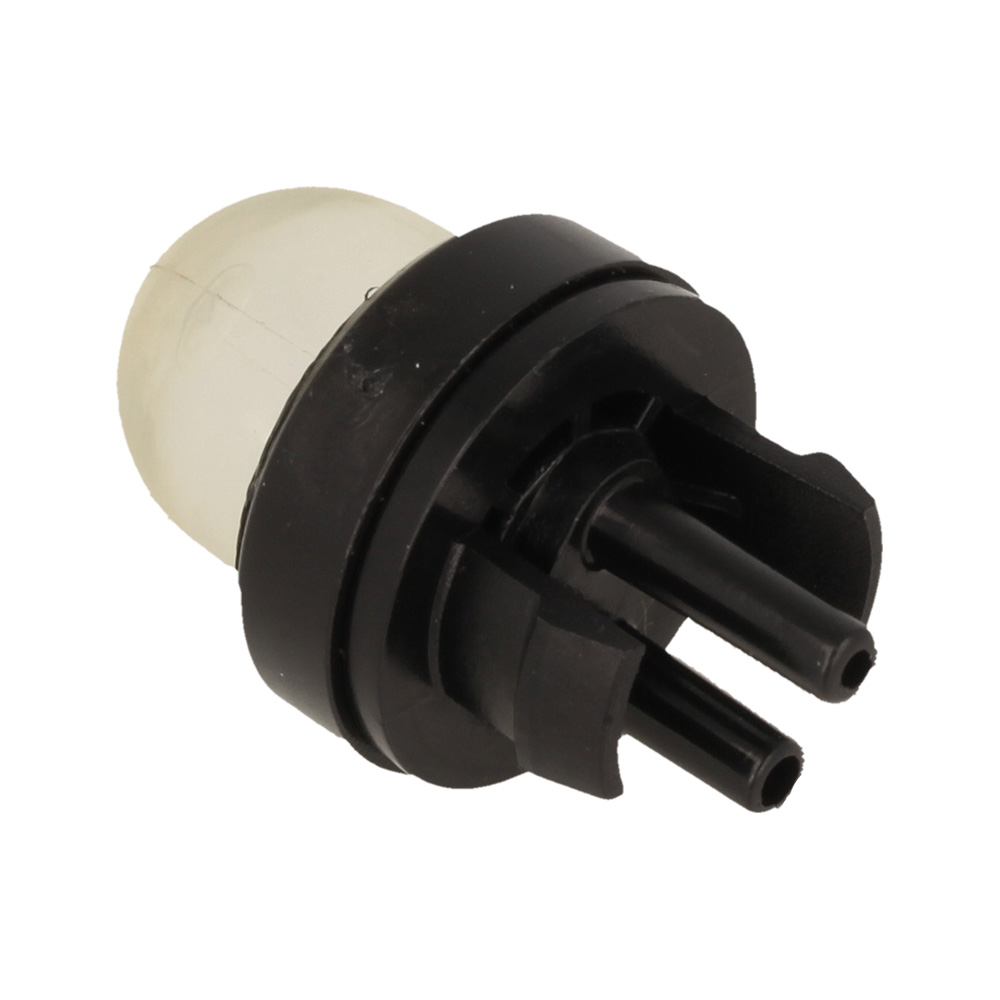

  131 Oil Vacuole COYD2500-18410
Oil Vacuole
Out of stock
£3.64 £3.03

  132 Bolt 45 COYD4500-27212
Bolt 45
Out of stock
£2.52 £2.10

  133 Left Decorative Cover COYD4600.11-27500
Left Decorative Cover
Out of stock
£2.52 £2.10

  134 Right Decorative Cover COYD4600.11-27501
Right Decorative Cover
Out of stock
£2.52 £2.10

  137 Trigger Control Arm COYD4600.8-24214
Trigger Control Arm
Out of stock
£2.52 £2.10

  138 Handle Cover COYD4600.11-24411
Handle Cover
Out of stock
£2.52 £2.10

  139 Screw St48*19 COYD4500-91334
Screw St48*19
Out of stock
£2.52 £2.10

  140 Rubber Sheet COYD4500-18006
Rubber Sheet
Out of stock
£2.52 £2.10

  141 Throttle Push Rod COYD4500-24001
Throttle Push Rod
Out of stock
£2.52 £2.10

  142 Head Baffle COYD4600.11-23011
Head Baffle
Out of stock
£2.52 £2.10

  143 Front Baffle Heat COYD4600.11-21001
Front Baffle Heat
Out of stock
£2.52 £2.10

  145 Tensioner Cover COYD4500.7B-22251
Tensioner Cover
Out of stock
£2.52 £2.10

  150 Brake Spring Cover COYD4600.11-23108
Brake Spring Cover
Out of stock
£2.52 £2.10

  151 Brake Lever Assy COYD2500X-23109
Brake Lever Assy
Out of stock
£2.52 £2.10

  152 Brake Spring COYD4600.11-23113
Brake Spring
Out of stock
£2.52 £2.10

  155 Tension Driving Gear COYD4500-22211
Tension Driving Gear
Out of stock
£2.52 £2.10

  156 Tension Passive Gear COYD4500-22201
Tension Passive Gear
Out of stock
£2.58 £2.15

  157 Tension Pin COYD4500-22212
Tension Pin
Out of stock
£2.52 £2.10

  162 Nail Plate COYD3800-13002A
Nail Plate
Out of stock
£2.52 £2.10

  163 Bar 18 CO180SDEA041
Bar 18" 0325 Oregon
Out of stock
£25.81 £21.51

  163 Bar 20 CO200PXRK095
Bar 20" 0325 Oregon
Out of stock
£28.33 £23.61

  164 Chain 18 CO20LPX072X
Chain 18" 0325 Oregon
Out of stock
£33.71 £28.09

  164 Chain 20 CO21LPX078X
Chain 20" 0325 Oregon
Out of stock
£40.96 £34.13


Description

Cobra CS620 Chainsaw Parts Diagram
