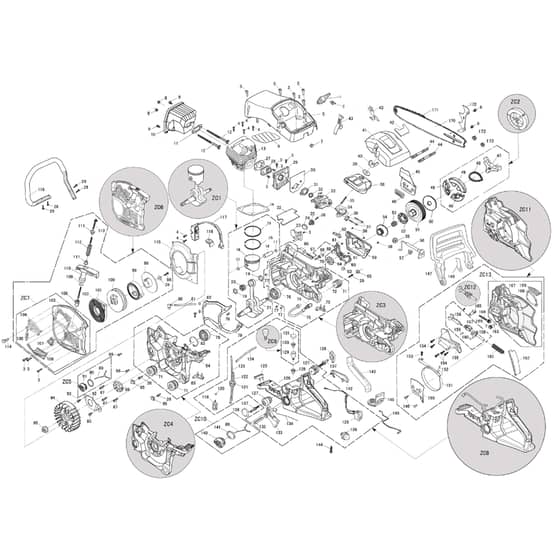

Cobra CS420 - Chainsaw Engine Diagram

Ref. Img. Part No. Details
  2 ZC2 Clutch Assy COYD4500-22110
ZC2 Clutch Assy
Out of stock
£15.73 £13.11

  3 Screw M5×14 COYD4500-90023
Screw M5×14
Out of stock
£2.52 £2.10

  4 Screw M5×20 COYD3800-90024
Screw M5×20
Out of stock
£1.26 £1.05

  5 ZC5 Oil Cap Assy COYD3800-17110
ZC5 Oil Cap Assy
Out of stock
£3.64 £3.03

  5 Cover-Top COYD4600.11-15201
Cover-Top
Out of stock
£3.95 £3.29

  6 Thermal Insulation COYD4600.11-18002
Thermal Insulation
Out of stock
£2.52 £2.10

  6 ZC6 Starter Assy COYD4600.11-25000
ZC6 Starter Assy
Out of stock
£20.77 £17.31

  9 ZC9 Balance Assy COYD3800-18010
ZC9 Balance Assy
Out of stock
£2.52 £2.10

  9 Screw COYD3800-90021
Screw
Out of stock
£1.26 £1.05

  10 Muffler Assy COYD4500.11-21110
Muffler Assy
Out of stock
£14.47 £12.06

  10 ZC10 Fuel Cap Assy COYD4500-18030
ZC10 Fuel Cap Assy
Out of stock
£3.64 £3.03

  11 Washer-Muffler COYD4500-21001
Washer-Muffler
Out of stock
£2.52 £2.10

  11 ZC11 Brake Assy COYD4500.7B-25000
ZC11 Brake Assy
Out of stock
£13.92 £11.60

  12 Nut-Muffler COYD4500-21002
Nut-Muffler
Out of stock
£2.52 £2.10

  12 ZC12 Leverage-Brake COYD2500X-23109
ZC12 Leverage-Brake
Out of stock
£2.52 £2.10

  13 Cylinder COYD4200-12111
Cylinder
Out of stock
£21.31 £17.76

  13 ZC13 Brake Housing COYD4600.11-27300
ZC13 Brake Housing
Out of stock
£24.55 £20.46

  14 Washer-Cylinder COYD4600.7-12501
Washer-Cylinder
Out of stock
£2.52 £2.10

  15 Ring-Pistion COYD4200.7-14311
Ring-Pistion
Out of stock
£2.52 £2.10

  26 Screw St48×16 COYD2500-91333
Screw St48×16
Out of stock
£2.52 £2.10

  27 Washer Boot-Intake COYD4600.7-16001
Washer Boot-Intake
Out of stock
£2.52 £2.10

  28 Boot-Intake COYD4500-16111
Boot-Intake
Out of stock
£3.13 £2.61

  30 Washer Boot-Intake Support COYD4500-16132
Washer Boot-Intake Support
Out of stock
£2.52 £2.10

  31 Flange COYD4500-16131
Flange
Out of stock
£2.52 £2.10

  32 Washer COYD4500-16002
Washer
Out of stock
£2.52 £2.10

  33 Carburettor COYD4500-18200
Carburettor
Out of stock
£34.63 £28.86

  34 Grommet-Inner COYD4500-16141
Grommet-Inner
Out of stock
£2.52 £2.10

  35 Stud COYD4500-16141.2
Stud
Out of stock
£2.52 £2.10

  38 Air Filter COYD4500-16211
Air Filter
Out of stock
£5.65 £4.71

  43 Clamp Lock COYD4600.11-48117
Clamp Lock
Out of stock
£2.52 £2.10

  44 Stud COYD4500-12128
Stud
Out of stock
£2.52 £2.10

  45 Oil Outlet Plate COYD4500.7A-22931
Oil Outlet Plate
Out of stock
£2.52 £2.10

  50 Washer Clutch COYD4500-22101
Washer Clutch
Out of stock
£2.52 £2.10

  51 Drum-Clutch COYD4500-22121
Drum-Clutch
Out of stock
£11.95 £9.96

  52 Sprocket COYD4500.8-22050
Sprocket
Out of stock
£2.52 £2.10

  53 Bearing Needle COYD4500-96115
Bearing Needle
Out of stock
£2.52 £2.10

  54 Gear Worm COYD4500-17001
Gear Worm
Out of stock
£2.52 £2.10

  56 Choke Knob COYD4500.11-24111
Choke Knob
Out of stock
£2.52 £2.10

  57 Support-Choke Knob COYD4500-24113
Support-Choke Knob
Out of stock
£2.52 £2.10

  73 Right Pad Rubber Cushioning COYD4500-13105
Right Pad Rubber Cushioning
Out of stock
£2.52 £2.10

  75 Hose Oil COYD4500-17128
Hose Oil
Out of stock
£2.52 £2.10

  92 Plate Oil Seal Washer COYD4500-13801
Plate Oil Seal Washer
Out of stock
£2.52 £2.10

  94 Flywheel Assy COYD4600.GF-15110
Flywheel Assy
Out of stock
£10.36 £8.63

  95 Nut Flywheel COYD2500-92102
Nut Flywheel
Out of stock
£2.52 £2.10

  115 Air Baffler COYD4600.11-15120
Air Baffler
Out of stock
£2.52 £2.10

  116 Spark Plug Protect Bush COYD4600.8-26118
Spark Plug Protect Bush
Out of stock
£2.52 £2.10

  117 Ignition COYD4500-26110
Ignition
Out of stock
£18.25 £15.21

  118 Handle COYD4600.11-24510
Handle
Out of stock
£6.64 £5.53

  119 Fuel Filter COYD4500-18103
Fuel Filter
Out of stock
£2.52 £2.10

  121 Support Fuel Hose COYD3800-18104
Support Fuel Hose
Out of stock
£2.52 £2.10

  122 Fuel Return Hose COYD3800-18432
Fuel Return Hose
Out of stock
£2.52 £2.10

  123 Hose Fuel COYD3800-18101A
Hose Fuel
Out of stock
£2.52 £2.10

  124 Inlet Hose COYD3800-18431
Inlet Hose
Out of stock
£2.52 £2.10

  133 Trigger COYD4600.7-24211
Trigger
Out of stock
£2.52 £2.10

  134 Spring Trigger COYD3800-24212
Spring Trigger
Out of stock
£2.52 £2.10

  135 Switch Stop COYD4500-26210B
Switch Stop
Out of stock
£2.40 £2.00

  136 Primer COYD2500-18410
Primer
Out of stock
£3.64 £3.03

  142 Lever Trigger COYD4600.8-24214
Lever Trigger
Out of stock
£2.52 £2.10

  143 Rear Handle COYD4600.11-24411
Rear Handle
Out of stock
£2.52 £2.10

  144 Screw COYD4500-91334
Screw
Out of stock
£2.52 £2.10

  145 Dustproof Rubber Plate COYD4500-18006
Dustproof Rubber Plate
Out of stock
£2.52 £2.10

  146 Rod Throttle COYD4500-24001
Rod Throttle
Out of stock
£2.52 £2.10

  150 Adjusting Cover COYD4500.7B-22251
Adjusting Cover
Out of stock
£2.52 £2.10

  151 Brake Band COYD4500.7B-23111B
Brake Band
Out of stock
£2.52 £2.10

  155 Cover Brake Spring COYD4600.11-23108
Cover Brake Spring
Out of stock
£2.52 £2.10

  161 Spring Actuation COYD4600.11-23113
Spring Actuation
Out of stock
£2.52 £2.10

  163 Sprocket Chain Adjusting COYD4500-22211
Sprocket Chain Adjusting
Out of stock
£2.52 £2.10

  164 Tooth Chain Adjudting COYD4500-22201
Tooth Chain Adjudting
Out of stock
£2.58 £2.15

  165 Adjusting Pin COYD4500-22212
Adjusting Pin
Out of stock
£2.52 £2.10

  170 14 CO140SDEA041
14" Bar
Out of stock
£40.80 £34.00

  171 14 CO91P053X
14" Chain
Out of stock
£22.03 £18.36

  172 Spike COYD3800-13002A
Spike
Out of stock
£2.52 £2.10

  173 Nut COYD2500-92101
Nut
Out of stock
£1.26 £1.05


Description

Cobra CS420 Chainsaw Parts Diagram
