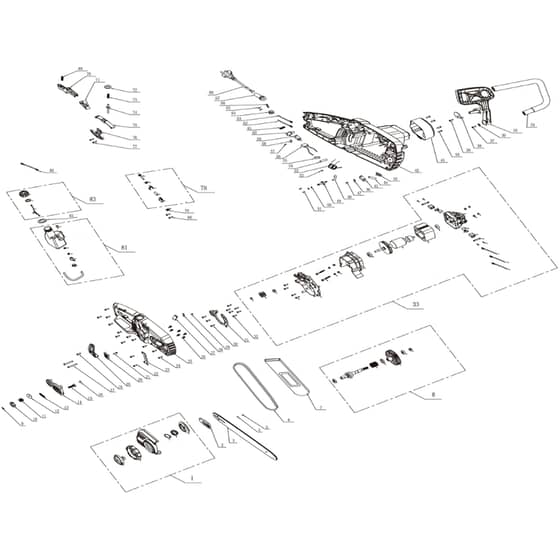

Cobra CS40E - Chainsaw Main Diagram

Ref. Img. Part No. Details
  1 End Cap Assy'
End Cap Assy'
CO8440-430210-0005920 Out of stock
End Cap Assy'
£10.44 £8.70

  2 Push Pedal
Push Pedal
CO8181-430205-0100000 Out of stock
Push Pedal
£5.02 £4.18

  3 16
16
CO160SDEA041 Out of stock
16" Bar
£32.95 £27.46

  6 Chain
Chain
CO91P057X Out of stock
Chain
£24.55 £20.46

  7 Blade Cover
Blade Cover
CO8331-462101-0000120 Out of stock
Blade Cover
£4.98 £4.15

  8 Output Shaft Assy'
Output Shaft Assy'
CO8440-431704-0000010 Out of stock
Output Shaft Assy'
£14.72 £12.27

  9 E-Check Ring
E-Check Ring
CO8CE-07B Out of stock
E-Check Ring
£1.26 £1.05

  10 Sprocket
Sprocket
CO8128-462201-0000000 Out of stock
Sprocket
£2.52 £2.10

  14 Right Housing Insert
Right Housing Insert
CO8347-481003-0100000 Out of stock
Right Housing Insert
£3.16 £2.63

  23 Dead Block
Dead Block
CO8181-481601-0000000 Out of stock
Dead Block
£2.52 £2.10

  24 Self-Tapping Screw 5*16
Self-Tapping Screw 5*16
CO8SJAB50-16B Out of stock
Self-Tapping Screw 5*16
£2.52 £2.10

  25 Right Housing
Right Housing
CO8006-434102-0108720 Out of stock
Right Housing
£22.34 £18.62

  32 Self-Tapping Screw 4*16
Self-Tapping Screw 4*16
CO8SJAB40-16B Out of stock
Self-Tapping Screw 4*16
£2.52 £2.10

  33 Motor Assy' 2000W
Motor Assy' 2000W
CO8440-434102-0000011 Out of stock
Motor Assy' 2000W
£39.84 £33.20

  34 Front Handle
Front Handle
CO8003-434101-0005920 Out of stock
Front Handle
£2.52 £2.10

  35 Preventer Plate
Preventer Plate
CO8185-434101-0017020 Out of stock
Preventer Plate
£2.52 £2.10

  41 Motor Rear Cover
Motor Rear Cover
CO8004-434101-0105920 Out of stock
Motor Rear Cover
£4.25 £3.54

  42 Left Housing
Left Housing
CO8006-434103-0108720 Out of stock
Left Housing
£29.09 £24.24

  56 Capacitance
Capacitance
CO8416-471401-0000020 Out of stock
Capacitance
£2.52 £2.10

  59 Microswitch
Microswitch
CO8042-434101-0000010 Out of stock
Microswitch
£2.52 £2.10

  60 Lock Off Button
Lock Off Button
CO8312-430202-0017020 Out of stock
Lock Off Button
£2.52 £2.10

  69 Button Spring
Button Spring
CO8342-481001-0000000 Out of stock
Button Spring
£2.52 £2.10

  70 Switch Button
Switch Button
CO8312-434101-0017020 Out of stock
Switch Button
£2.52 £2.10

  75 Switch Lever
Switch Lever
CO8087-481601-0201710 Out of stock
Switch Lever
£2.52 £2.10

  76 Brake Bar Dead Plate
Brake Bar Dead Plate
CO8187-481602-0000000 Out of stock
Brake Bar Dead Plate
£2.52 £2.10

  78 Oil Pump Assy
Oil Pump Assy
CO8440-491208-0000010 Out of stock
Oil Pump Assy
£3.74 £3.12

  81 Oil Box Assy'
Oil Box Assy'
CO8440-434101-0000010 Out of stock
Oil Box Assy'
£5.88 £4.90

  82 Rubber Blanket
Rubber Blanket
CO8202-462205-0000120 Out of stock
Rubber Blanket
£2.52 £2.10

  83 Oil Box Cap Assy
Oil Box Cap Assy
CO8440-430207-0017022 Out of stock
Oil Box Cap Assy
£2.52 £2.10


Description

Cobra CS40E Chainsaw Parts Diagram
