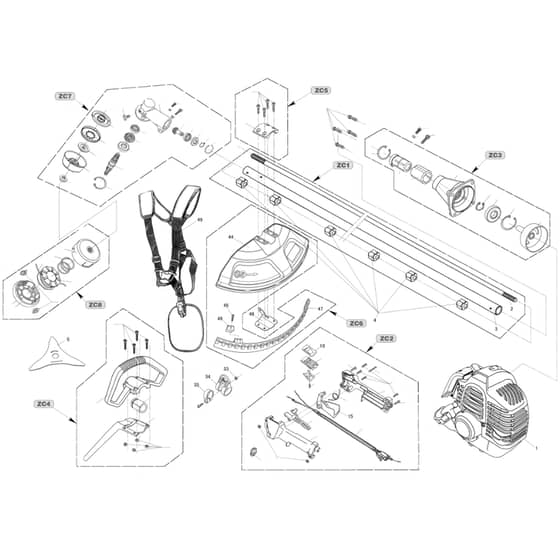

Cobra BC260C - Loop Handle Straight Shaft Main Diagram

Cobra BC260C - Loop Handle Straight Shaft Main Diagram
Cobra BC260C - Loop Handle Straight Shaft Main Diagram Cobra BC260C - Loop Handle Straight Shaft Main Diagram Cobra BC260C - Loop Handle Straight Shaft Main Diagram Cobra BC260C - Loop Handle Straight Shaft Main Diagram Cobra BC260C - Loop Handle Straight Shaft Main Diagram

Description

Cobra BC260C Brushcutter Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 ZC1 Clutch Rubber
ZC1 Clutch Rubber
COGC260-44310-1 Out of stock
ZC1 Clutch Rubber
£4.39 £3.66

  1 ZC1 Drive Shaft
ZC1 Drive Shaft
COGC260-45120 Out of stock
ZC1 Drive Shaft
£38.36 £31.97

  2 ZC2 Throttle Control Assy
ZC2 Throttle Control Assy
COLJ260K-47000 Out of stock
ZC2 Throttle Control Assy
£18.84 £15.70

  3 ZC3 Clutch Drum Assembl
ZC3 Clutch Drum Assembl
COGC260-44310 Out of stock
ZC3 Clutch Drum Assembl
£35.89 £29.91

  4 ZC4 G-Handle Ass`Y
ZC4 G-Handle Ass`Y
COGC260-46090 Out of stock
ZC4 G-Handle Ass`Y
£11.98 £9.98

  4 Oil Gearing
Oil Gearing
COGC415-45300 Out of stock
Oil Gearing
£2.52 £2.10

  5 Tri-Blade
Tri-Blade
COGC305-48200 Out of stock
Tri-Blade
£10.50 £8.75

  5 ZC5 Clamping Bracket Assy
ZC5 Clamping Bracket Assy
COGC305.5-48051 Out of stock
ZC5 Clamping Bracket Assy
£2.52 £2.10

  6 ZC6 Cutting Attachment Shield
ZC6 Cutting Attachment Shield
COGC305.5-48053 Out of stock
ZC6 Cutting Attachment Shield
£18.25 £15.21

  7 ZC7 Grbx Asm Brush Cutter
ZC7 Grbx Asm Brush Cutter
COGC305.3A-48040 Out of stock
ZC7 Grbx Asm Brush Cutter
£34.63 £28.86

  8 ZC8 Sp Hd Asm Ppp
ZC8 Sp Hd Asm Ppp
COGC305-48180 Out of stock
ZC8 Sp Hd Asm Ppp
£20.00 £16.67

  10 Ignition Switch
Ignition Switch
COGC260-47061 Out of stock
Ignition Switch
£2.52 £2.10

  15 Throttle Trigger
Throttle Trigger
COGC260-47006-2 Out of stock
Throttle Trigger
£2.52 £2.10

  34 Hook
Hook
COGC305-46581 Out of stock
Hook
£2.52 £2.10

  35 Support-Hook
Support-Hook
COGC305-46582 Out of stock
Support-Hook
£2.52 £2.10

  48 Guard Plate
Guard Plate
COGC305.5-48052 Out of stock
Guard Plate
£2.52 £2.10

  49 Harn Asm Deluxe Cub Ppp
Harn Asm Deluxe Cub Ppp
COGC305.3A-46590 Out of stock
Harn Asm Deluxe Cub Ppp
£15.73 £13.11

  62 Protective Ver
Protective Ver
COGC305-48045.2 Out of stock
Protective Ver
£15.73 £13.11

  66 Blade Holder
Blade Holder
COGC305-48047 Out of stock
Blade Holder
£2.52 £2.10

  67 Blade Holder Ver
Blade Holder Ver
COGC305-48048 Out of stock
Blade Holder Ver
£2.52 £2.10

  68 Locking Nut Cutting Blade
Locking Nut Cutting Blade
COGC305.1-92105 Out of stock
Locking Nut Cutting Blade
£3.78 £3.15


Description

Cobra BC260C Brushcutter Parts Diagram
