Cobra AIRMOW 51 PRO - Hover Mower Main Diagram

Name: Cobra AIRMOW 51 PRO - Hover Mower Main Diagram
SKU: airmow_51_pro_hover_mower_main-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cobra AIRMOW 51 PRO - Hover Mower Main Diagram

Description

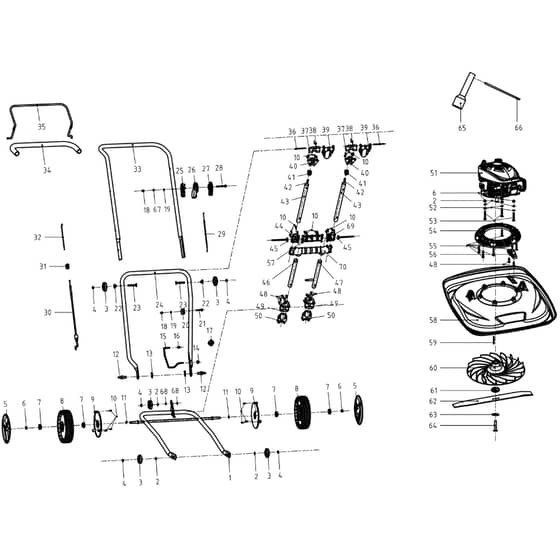

Cobra AIRMOW 51 PRO Hover Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	CO21015001970001N	Wheel Fixing Rack	In stock	£21.56 £17.97
2	COA26800700701	Flat Washer	Out of stock	£2.52 £2.10
3	CO21061000020108B	Lower Handle Knob	Out of stock	£2.52 £2.10
4	COA26800502301A	Hex Nut	Out of stock	£2.52 £2.10
5	CO21011001490006A	Wheel Cover	Out of stock	£4.33 £3.61
6	COA26800502801	Six Angle Flange Face Lock Nut	Out of stock	£2.52 £2.10
7	COA26800401601	Angle Bearing	Out of stock	£4.13 £3.44
8	CO21011002750001A	Wheel Assey	Out of stock	£31.56 £26.30
9	CO21011001460001A	Anti-Dust Cover	Out of stock	£3.17 £2.64
10	COA26800100501	Tapping Screw	Out of stock	£2.52 £2.10
11	COA26800706202	Wave Washer	Out of stock	£2.52 £2.10
12	CO2106300075A	Pin Shaft	Out of stock	£6.11 £5.09
13	CO2106800426A	Thumb Lock	Out of stock	£2.52 £2.10
14	COA26800500501	Lock Six Angle Nut	Out of stock	£2.52 £2.10
15	CO2106200876A	Arm Positioning Lever	Out of stock	£3.42 £2.85
16	CO2104100455N	The Positioning Rod Head	Out of stock	£2.52 £2.10
17	CO21061001713201N	Cable Clamp	Out of stock	£2.52 £2.10
18	COA26800501603A	Acorn Nut	Out of stock	£2.52 £2.10
19	COA26800700801	Flat Washer	Out of stock	£2.52 £2.10
20	CO21061001523201N	Cable Fixing Block	Out of stock	£2.52 £2.10
21	COA26800607701	Six Hexagon Head Flange Bolts	Out of stock	£2.52 £2.10
22	CO21061000113201A	Curved Washer	Out of stock	£2.52 £2.10
23	COA26800600401	Flat Head Bolt	Out of stock	£2.52 £2.10
24	CO21062008720001N	Lower Handle	Out of stock	£18.31 £15.26
25	CO21041001180001A	Throttle Switch Right Box	Out of stock	£2.52 £2.10
26	CO21041001190001B	Throttle Switch Handle	Out of stock	£4.90 £4.08
27	CO21041001170001A	Throttle Switch Left Box	Out of stock	£2.52 £2.10
28	COA26800608201	Six Hexagon Head Flange Bolts	Out of stock	£2.52 £2.10
29	CO2106800432N	Throttle Cable	Out of stock	£10.06 £8.38
30	CO2106800431N	Cable Assembly	Out of stock	£9.79 £8.16
31	CO21061001643201A	Cable Connecting Buckle	Out of stock	£2.52 £2.10
32	CO2106800523N	Extinguishing Cable	Out of stock	£6.11 £5.09
33	CO21062008710001N	Upper Handle	Out of stock	£18.95 £15.79
34	CO2106600015N	Handle Shield	Out of stock	£5.93 £4.94
35	CO21062008700108N	Extinguishing Rod	Out of stock	£10.81 £9.01
36	CO2102300100N	Rotation Axis	Out of stock	£2.52 £2.10
37	CO21041004470001N	Quick Remove Rear Lid	Out of stock	£3.00 £2.50
38	CO2109800153N	Quick Disconnect Torsion Spring	Out of stock	£2.52 £2.10
39	CO21041004460001N	Quickly Remove The Front Cover	Out of stock	£3.42 £2.85
40	CO21041004480001N	Quick Dismantling And Fixing Cover	Out of stock	£2.52 £2.10
41	CO21061002840108N	Quick Release Button	Out of stock	£2.52 £2.10
42	CO2109800155A	Quick Release Pressure Spring	Out of stock	£2.52 £2.10
43	CO21062008740001N	Upper Connecting Shaft	Out of stock	£9.22 £7.68
44	CO21041004450001N	Rotate Right Cover	Out of stock	£2.52 £2.10
45	CO2102300099N	Pin Roll	Out of stock	£5.93 £4.94
46	CO21062008730001N	Lower Connecting Shaft	Out of stock	£5.06 £4.22
47	CO21065000010001N	Lower Connecting Shaft Welding Part	Out of stock	£6.66 £5.55
48	COA26800103701	Tapping Screw	Out of stock	£2.52 £2.10
49	CO21041004510001N	Fixed Rear Lid	Out of stock	£3.17 £2.64
50	CO21041004500001N	Fixed Front Cover	Out of stock	£2.82 £2.35
52	COA26800800202	Spring Washer	Out of stock	£2.52 £2.10
53	COA26800601601	Hexagon Headed Bolt	Out of stock	£2.52 £2.10
54	CO21041004490001N	Engine Fixing Cover	Out of stock	£11.48 £9.57
55	COA26800110201	Tapping Screw	Out of stock	£1.26 £1.05
56	CO21031000670001A	Guide Slot	Out of stock	£2.52 £2.10
57	CO21041004440001N	Rotary Middle Cap	Out of stock	£3.11 £2.59
58	CO21031000660108A	Deck	Out of stock	£93.24 £77.70
59	COA26809000201A	Flat Key	In stock	£2.52 £2.10
60	CO21051000310001N	Fan	Out of stock	£28.64 £23.87
61	COA26800711501	Washer	Out of stock	£2.52 £2.10
62	CO2105200179N	Blade	In stock	£21.40 £17.83
63	CO2105300001C	Dish Washer	Out of stock	£2.52 £2.10
64	CO2105300076A	Blade Fastening Bolt	Out of stock	£2.52 £2.10
65	CO2012200002A	Cocket Wrench	Out of stock	£2.52 £2.10
66	CO2012100004A	Cocket Wrench Rod	Out of stock	£2.52 £2.10
67	COA26800800303	Spring Washer	Out of stock	£2.52 £2.10
68	CO3054202001	External Teeth Lock Washer	Out of stock	£2.52 £2.10
69	CO21041004430001N	Rotate Left Cover	Out of stock	£2.52 £2.10
70	CO21041004420001N	Rotary Front Cover	Out of stock	£3.97 £3.31
