Atco Windsor 12S - 3616C02A70
Atco Windsor 12S - 3616C02A70 - Main Assembly

Atco Windsor 12S - 3616C02A70 - Main Assembly

Skip to the end of the images gallery

Skip to the beginning of the images gallery

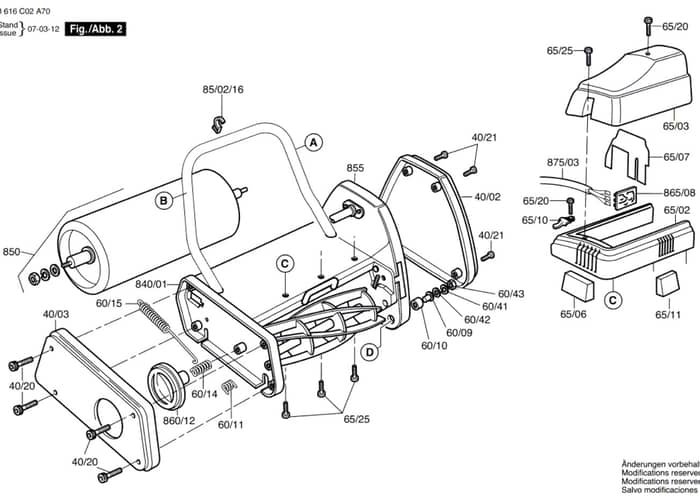

Atco Windsor 12S - 3616C02A70 - Main Assembly

Atco Windsor 12S - 3616C02A70 - Main Assembly

Description

Atco Windsor 12S

Article number: 3616C02A70

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	4002		ALF016A75900 In stock	Protective Cover L/H		£147.84 £123.20
	4003		ALF016A75089 In stock	Side Cover R/H		£42.32 £35.27
	4020		ALF016A58228 In stock	Screw M6		£2.46 £2.05
	4021		ALF016A58229 In stock	Screw M6		£2.46 £2.05
	6009		ALF016A57748 Out of stock	Pin L/H		£2.74 £2.28
	6010		ALF016A57676 Out of stock	Cap		£2.74 £2.28
	6011		ALF016A57820 Out of stock	Spring		£3.26 £2.72
	6015		ALF016A57995 In stock	Spring		£10.08 £8.40
	6041		ALF016L35307 In stock	Spring Washer 5/16 Sw Se		£1.58 £1.32
	6042		ALF016L35411 Out of stock	Washer 8.5mm		£1.18 £0.98
	6043		ALF016L35457 In stock	Nut M8		£2.46 £2.05
	6502		ALF016A75882 Out of stock	Bonnet		£19.90 £16.58
	6506		ALF016A57934 Out of stock	Filters		£1.82 £1.52
	6507		ALF016A57892 Out of stock	Housing		£1.25 £1.04
	6510		ALF016T46305 Out of stock	Cable Holder		£1.72 £1.43
	6511		ALF016A58999 Out of stock	Filter Element		£2.56 £2.13
	6520		ALF016A57756 In stock	Phillips Screw M5		£1.55 £1.29
	84001		ALF016A75410 Out of stock	Chassis		£224.76 £187.30
	86012		ALF016A58656 In stock	Button		£14.18 £11.82
	86508		ALF016J10205 Out of stock	Control Unit		£54.12 £45.10

Description

Atco Windsor 12S

Article number: 3616C02A70

Main Assembly - Parts Diagram
