Atco Royale 30 - F016310242 - Main Assembly

Name: Atco Royale 30 - F016310242 - Main Assembly
SKU: royale_30_f016310242_main_assy-group
Price: 0.84 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Royale 30 - F016310242 - Main Assembly

Description

Atco Royale 30

Article number: F016310242

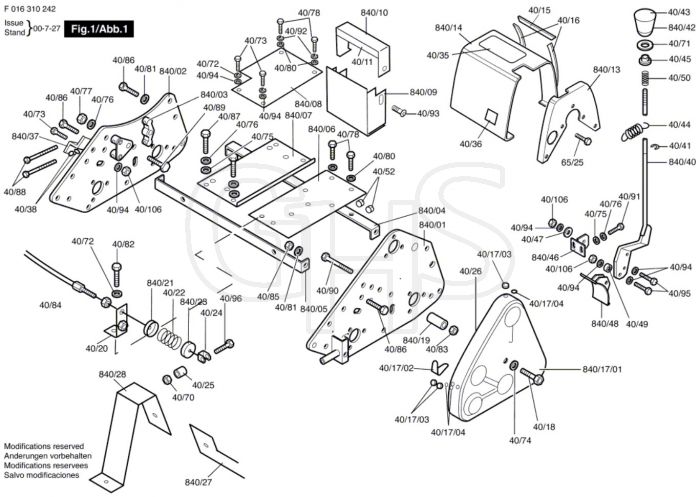

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4015	ALF016103678 Out of stock	Sealing Strips	£9.85 £8.21
4016	ALF016L32959 Out of stock	Sealing Strips	£2.11 £1.76
4018	ALF016L20336 In stock	Special Nut	£8.76 £7.30
4020	ALF016L66048 Out of stock	Holding Arm	£12.02 £10.02
4022	ALF016L09482 Out of stock	Spring	£9.86 £8.22
4024	ALF016L66085 Out of stock	Clevis	£8.00 £6.67
4025	ALL34691 Out of stock	Washer	£5.50 £4.58
4026	ALF016L12766 Out of stock	Label	£14.04 £11.70
4035	ALF016L61021 Out of stock	Sign	£20.16 £16.80
4036	ALF016L63201 Out of stock	Adhesive Sign	£18.53 £15.44
4038	ALF016L17922 Out of stock	Grommet	£3.44 £2.87
4041	ALF016L59709 Out of stock	Safety Clip	£2.60 £2.17
4043	ALF016L59921 Out of stock	Adhesive Sign	£16.99 £14.16
4044	ALF016L36810 Out of stock	Spring	£17.56 £14.63
4045	ALL36813 Out of stock	Sliding Block	£18.32 £15.27
4047	ALF016L36820 Out of stock	Eccentric Disc	£16.14 £13.45
4049	ALF016L36826 Out of stock	Washer	£7.02 £5.85
4050	ALF016L37756 Out of stock	Spring	£3.44 £2.87
4070	ALF016L59926 Out of stock	Lock Nut	£2.36 £1.97
4071	ALF016L09685 Out of stock	Washer 1.213x630x028	£4.68 £3.90
4072	ALF016L11107 Out of stock	Lock Washer	£1.10 £0.92
4073	ALF016L11301 Out of stock	Threaded Bolt M8x20	£1.72 £1.43
4074	ALF016L12635 Out of stock	Washer 0.38mm	£1.40 £1.17
4075	ALF016L13811 Out of stock	Washer	£2.46 £2.05
4076	ALF016L18028 In stock	Spring Washer	Was £1.40 £1.17 Special Price £1.01 £0.84
4077	ALF016L18048 Out of stock	Nut	£2.46 £2.05
4078	ALF016L18120 In stock	Hexagon Screw M6x12	£1.82 £1.52
4080	ALF016L18129 Out of stock	Washer 12.1x6.4x1.5	£1.42 £1.18
4081	ALF016L18182 Out of stock	Spring Washer 1/2"	£2.58 £2.15
4082	ALF016L18408 Out of stock	Hexagon Screw	£1.36 £1.13
4083	ALF016L18609 Out of stock	Nut	£2.58 £2.15
4084	ALF016L18723 Out of stock	Clamping Nut	£1.10 £0.92
4085	ALF016L20239 Out of stock	Nut 1/2"	£2.46 £2.05
4086	ALF016L20344 Out of stock	Screw	£3.32 £2.77
4087	ALF016L20345 Out of stock	Screw	£1.40 £1.17
4088	ALF016L20375 Out of stock	Adjusting Screw	£17.04 £14.20
4089	ALF016L20376 Out of stock	Bearing Journal	£27.06 £22.55
4090	ALF016L20388 Out of stock	Barrel Bolt	£2.18 £1.82
4091	ALF016L20402 Out of stock	Screw	£2.18 £1.82
4092	ALF016L18185 Out of stock	Lock Washer	£1.10 £0.92
4093	ALF016L35387 In stock	Self-Tapping Screw M6	£2.46 £2.05
4094	ALF016T40590 Out of stock	Washer Ø8.15mm	£1.10 £0.92
4095	ALF016W25673 Out of stock	Barrel Bolt	£1.40 £1.17
4096	ALF016W25710 Out of stock	Hexagon Screw	£3.08 £2.57
6525	ALF016L20407 Out of stock	Screw 5/16 Unpa x3/4	£1.10 £0.92
40106	ALF016L11218 Out of stock	Lock Nut M8	£1.40 £1.17
84001	ALF016L61646 In stock	Side Panel	£253.39 £211.16
84002	ALF016L63224 Out of stock	Side Panel	£204.22 £170.18
84003	ALF016L12805 In stock	Locking Lever	£15.62 £13.02
84013	ALF016L65624 Out of stock	Support Bracket	£24.40 £20.33
84021	ALF016L22615 Out of stock	Spigot	£10.00 £8.33
84046	ALF016L36817 Out of stock	Holding Arm	£41.32 £34.43
84048	ALF016L36822 Out of stock	Brake Shoe	£80.92 £67.43
401702	ALL20319 In stock	Plate	Was £3.30 £2.75 Special Price £2.38 £1.98
401703	ALF016L16703 Out of stock	Oil Tank	£8.76 £7.30
401704	ALF016T49100 In stock	Collar 12mm T40	£2.58 £2.15
8401701	ALF016L65685 Out of stock	Chain Cover	£142.82 £119.02
